Producer: Apple - Category: Personal Computer
Photos: Photo 1 (small),Photo 2 (small),Photo 3 (small)

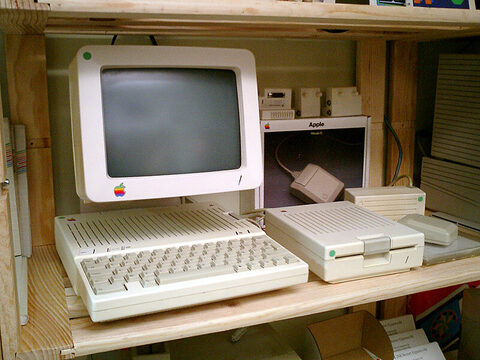

Photo 1: Bilby, CC BY 3.0, via Wikimedia Commons (Apple IIc with monitor.jpg)
Photo 2: All About Apple museum official web site, CC BY-SA 3.0, via Wikimedia Commons (Apple iicb.jpg)

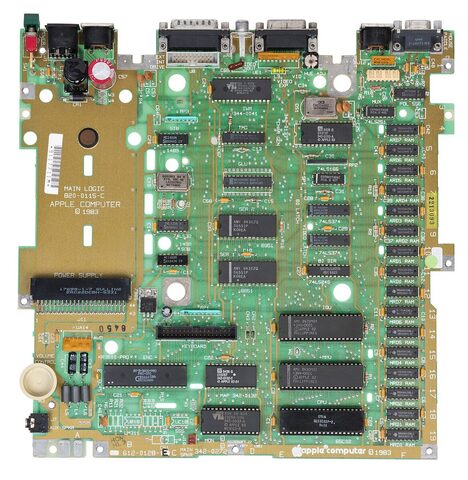

Photo 3: Evan-Amos, public domain, via Wikimedia Commons (Apple-IIc-Motherboard-Flat-Top.jpg)
Personal computer, 1984, Apple. The Apple IIc ("compact") is the portable version of the IIe, introduced in April 1984: a complete Apple II with built-in 5.25" drive and keyboard in a small case with a carrying handle, designed by Frog Design in the Snow White style, without expansion slots.
| Years | April 1984 to August 1988 |
| Manufacturer | Apple Computer Inc. (US) |
| Processor | 65C02 at 1.023 MHz |
| RAM | 128 KB (expandable to 1.125 MB in the later memory expansion revision) |
| ROM | 16 KB (Applesoft BASIC and monitor), later 32 KB |
| Graphics | 40 or 80 x 24 text, low resolution, high resolution 280 x 192, double high resolution 560 x 192 |
| Sound | 1 bit built-in speaker, headphone jack with volume control |
| Built-in storage | 5.25" floppy disk drive (140 KB) |
| Ports | external disk drive, joystick and mouse, 2 serial ports, composite video, video expansion connector for the flat panel display |
| Operating system | ProDOS, Apple DOS 3.3, Apple Pascal |
| Price (1984) | US$1,295 |
| Units sold | about 400,000 |
No documents available yet for this model. See the documentation section.
