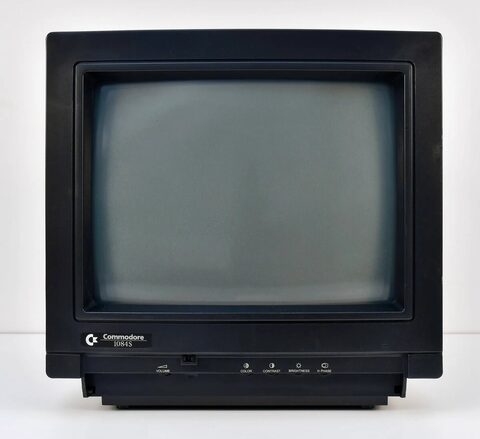

Colour monitor, 1991, Commodore. The 1084S-D2 is the black version of the Commodore 1084S stereo monitor, made to match the CDTV: a 14 inch colour CRT with RGB analogue, RGB TTL, composite and luminance/chrominance inputs and stereo speakers, usable with every Amiga and with the Commodore 64 and 128.
| Years | 1991 to 1993 |
| Manufacturer | Commodore (made by Philips) |
| Model | 1084S-D2 |
| Screen | 14 inch colour CRT, 0.42 mm pitch |
| Resolution | 640 x 256, 640 x 512 interlaced; 80 x 25 text |
| Frequencies | 15.6 kHz horizontal, 50/60 Hz vertical |
| Inputs | RGB analogue (DB-9 or DIN), RGB TTL, composite video, luminance/chrominance, stereo audio |
| Sound | 2 speakers, 1 W per channel |
| Power | 60 W |
| Dimensions | 360 (W) x 365 (D) x 355 (H) mm |
| Weight | 12.5 kg |
| Case | black, matching the CDTV |
No documents available yet for this model. See the documentation section.
