Producer: Mattel - Category: Other Hardware
Photos: Photo 1 (small),Photo 2 (small)
Photo 1: Daniel McConnell (TrojanDan) from Los Angeles, USA, CC BY 2.0, via Wikimedia Commons (Intellivision - trojandan 14871699 - white background.jpg)

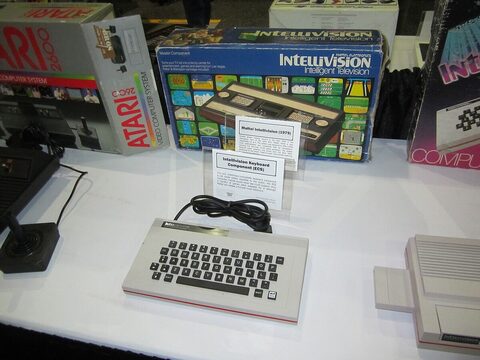

Photo 2: Tarcil Tarcil, CC BY 2.0, via Wikimedia Commons (E3 2013 Video Game History Museum Intellivision Keyboard Component (9029461471).jpg)
Computer module, 1983, Mattel Electronics. The Entertainment Computer System (ECS) is the add-on that turns the Intellivision into a home computer, released in 1983 after Mattel had been fined for advertising a keyboard component that never appeared. The module plugs into the cartridge slot and adds a 6502-class processor, 2 KB of RAM, a BASIC in ROM, a cassette interface and a printer port; the separate keyboard and the Music Synthesizer connect to it. Few programs were released and the ECS disappeared with Mattel Electronics in 1984.
| Years | 1983 to 1984 |
| Processor | the CP1610 of the console plus a 6502 in the keyboard |
| RAM | 2 KB, expandable |
| ROM | 24 KB with ECS BASIC |
| Storage | cassette interface |
| Ports | keyboard, cassette, printer, 2 extra controller ports |
| Price (1983) | US$150 with keyboard |
No documents available yet for this model. See the documentation section.
