Producer: Various - Category: Personal Computer
Photos: Photo 1 (small),Photo 2 (small)

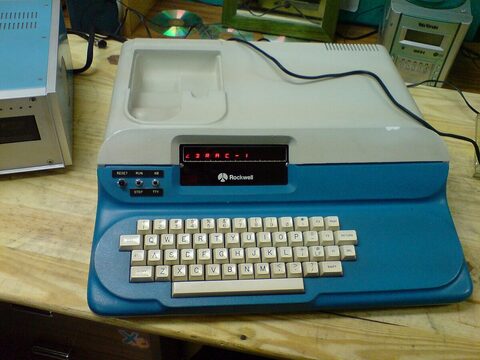

Photo 1: Rama & Musée Bolo, CC BY-SA 2.0 fr, via Wikimedia Commons (Rockwell AIM-65-IMG 0477-white.jpg)
Photo 2: Museo8bits, CC BY-SA 2.5, via Wikimedia Commons (Rockwell AIM-65 DSC00067.JPG)
Single-board computer, 1978, Rockwell. The AIM-65 ("Advanced Interactive Microcomputer") is a development computer based on the 6502, essentially an expanded KIM-1 with a full typewriter keyboard, a 20-character alphanumeric LED display and a small thermal printer on the board itself. Its ROM monitor includes an assembler and disassembler, and BASIC, FORTH, Pascal and PL/65 were available in additional ROMs. It was used in education and in industrial control, and could be mounted in an optional case.
| Years | 1978 to 1985 |
| Processor | MOS/Rockwell 6502 at 1 MHz |
| RAM | 1 to 4 KB on board, expandable |
| ROM | 4 KB monitor with assembler; sockets for BASIC, FORTH, Pascal, PL/65 |
| Display | 20-character 16-segment LED display |
| Printer | built-in 20-column thermal printer |
| Storage | audio cassette interface |
| Ports | 20 mA current loop, TTY, expansion connector, user I/O |
| Price (1978) | US$375 |
No documents available yet for this model. See the documentation section.
