Producer: Atari - Category: Storage
Photos: Photo 1 (small),Photo 2 (small)

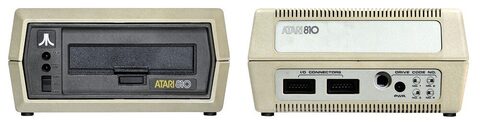

Photo 1: Daniel Schwen, CC BY-SA 4.0, via Wikimedia Commons (TCMI Atari810 front.jpg)
Photo 2: Knurrikowski, CC BY-SA 4.0, via Wikimedia Commons (Atari 810 disk drive combined.jpg)
Floppy disk drive, 1980, Atari. The 810 was the first disk drive for the Atari 400 and 800. It uses single-sided, single-density 5.25" disks holding 90 KB and connects to the computer through the SIO bus, with its own 6507-based controller inside. It shipped with Atari DOS on disk and was expensive, which is why many users stayed with cassette. It is a heavy unit with an external power supply.
| Years | 1980 to 1983 |
| Capacity | 90 KB per disk, single density, 5.25" |
| Interface | SIO, up to 4 drives daisy-chained |
| Price (1980) | US$599 |
No documents available yet for this model. See the documentation section.
