Amiga CDTV

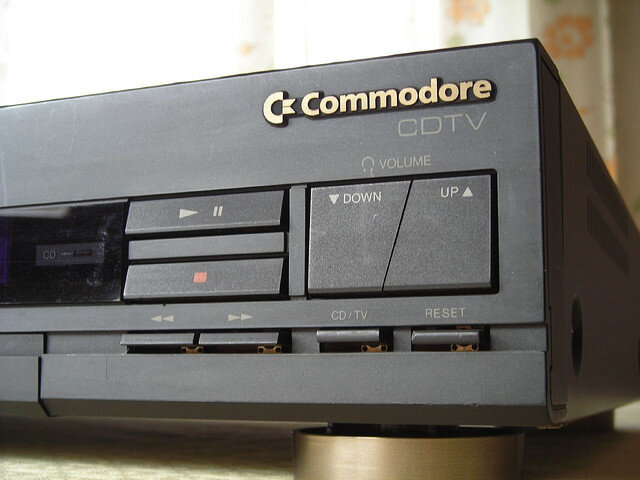

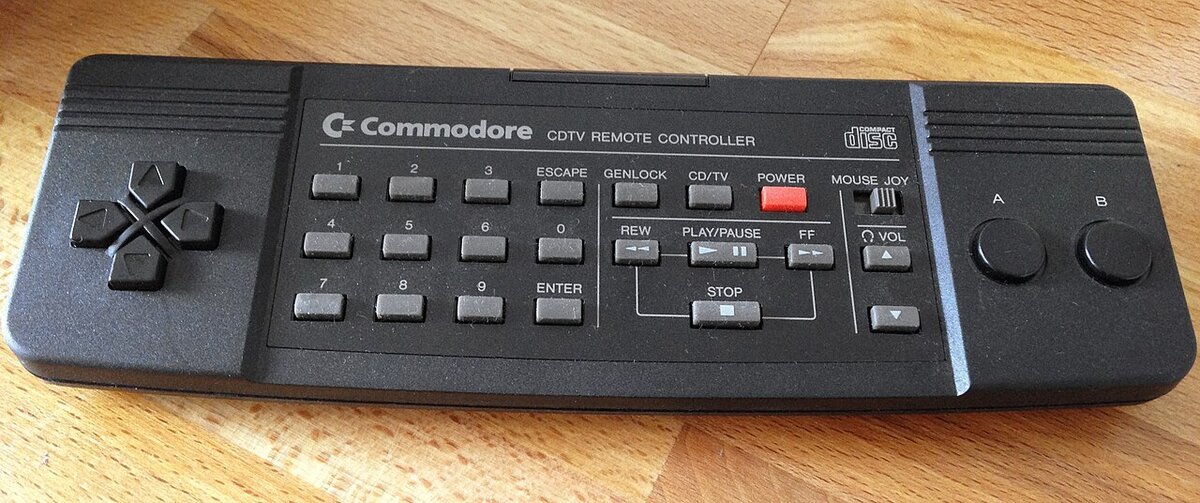

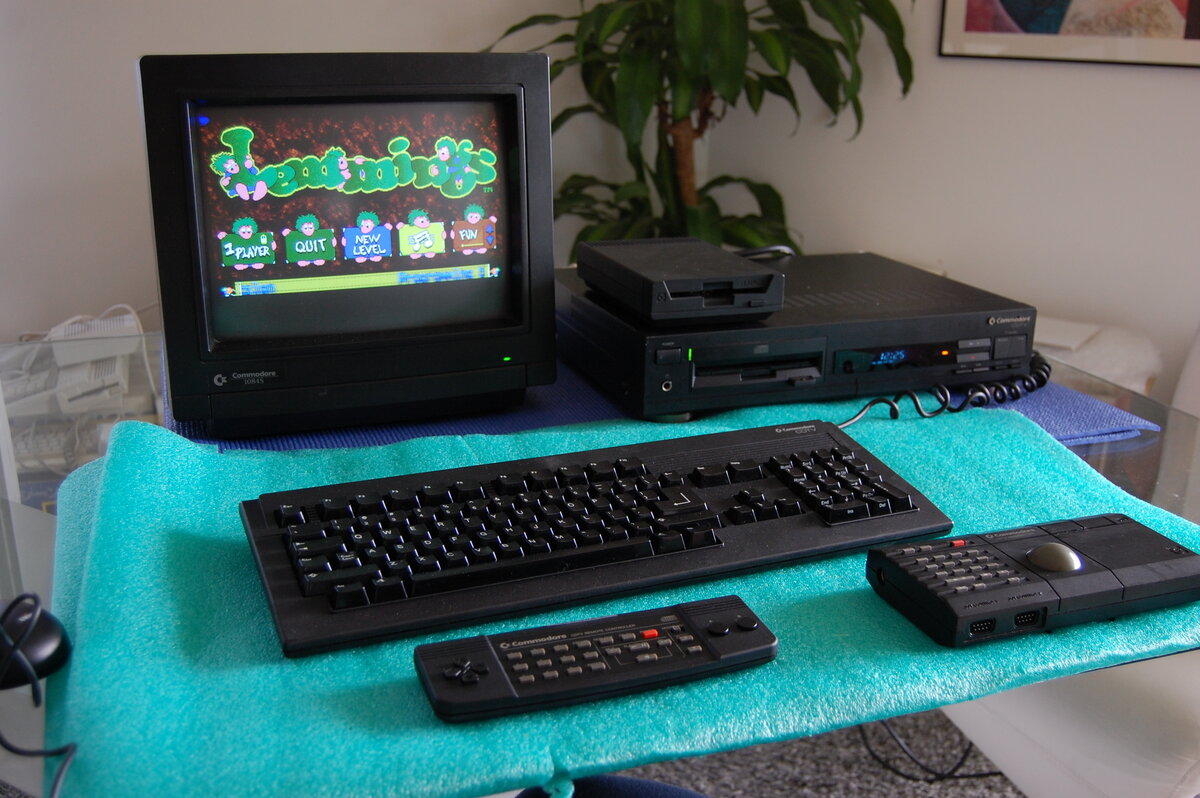

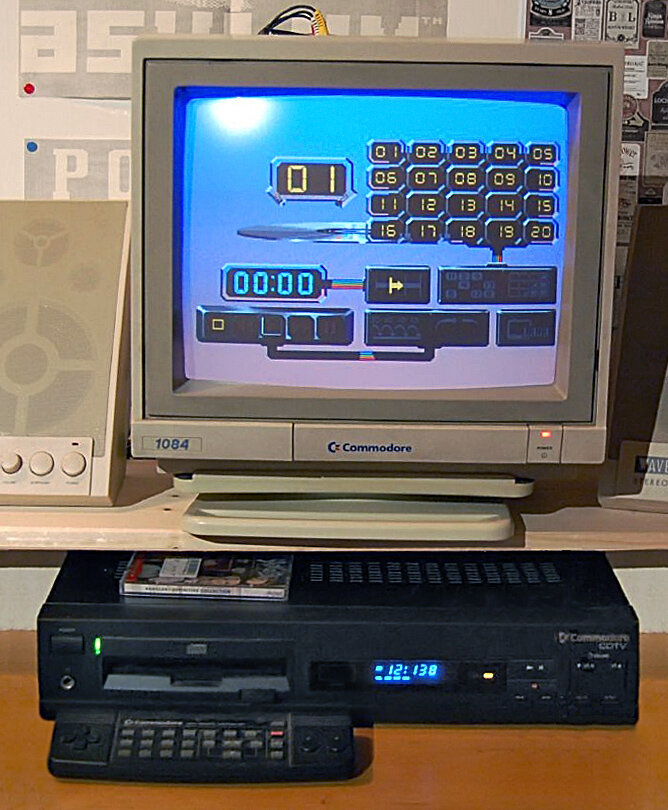

Photo 1: Esocop Photo 2: Audrey & Max, CC BY-SA 2.0, via Wikimedia Commons (Commodore CDTV.jpg) Photo 3: CDTV_CD32_Goldstar_3DO.jpg: Andrea & Stefan Modifications: Ubcule, CC BY 2.0, via Wikimedia Commons (Commodore CDTV Setup.jpg) Photo 4: Mia Jaap, CC0, via Wikimedia Commons (CDTV Remote (cropped).jpg)
Multimedia player, 1991, Commodore. The CDTV (Commodore Dynamic Total Vision) is an Amiga 500 in a black hi-fi style case with a CD-ROM drive and an infrared remote control, launched in April 1991 as a multimedia appliance for the living room, before the concept had a market; with keyboard, mouse and floppy drive it becomes a full Amiga.
| Years | April 1991 to 1993 |
|---|---|
| Manufacturer | Commodore International |
| Processor | Motorola 68000 at 7.09 MHz (PAL) or 7.16 MHz (NTSC) |
| RAM | 1 MB chip RAM, 2 KB non-volatile memory for saved data, expandable with the internal memory card |
| ROM | 512 KB Kickstart 1.3 and 256 KB CDTV firmware |
| Graphics | Original Chip Set (OCS), later ECS, 32 colours from 4096, HAM |
| Sound | Paula, 4 channels of 8 bit PCM in stereo, CD audio |
| Media | single speed CD-ROM with caddy, also plays audio CDs and CD+G |
| Ports | infrared receiver, 2 controller ports, serial, parallel, external floppy, RGB video, composite and S-Video, RF modulator, MIDI in and out, keyboard, stereo audio, rear expansion, front memory card slot |
| Operating system | AmigaOS 1.3 with CDTV extensions |
| Dimensions | 430 (W) x 340 (D) x 95 (H) mm |
| Price (1991) | US$999 |
Documentation
No documents available yet for this model. Browse the documentation section.
