Amiga 500+

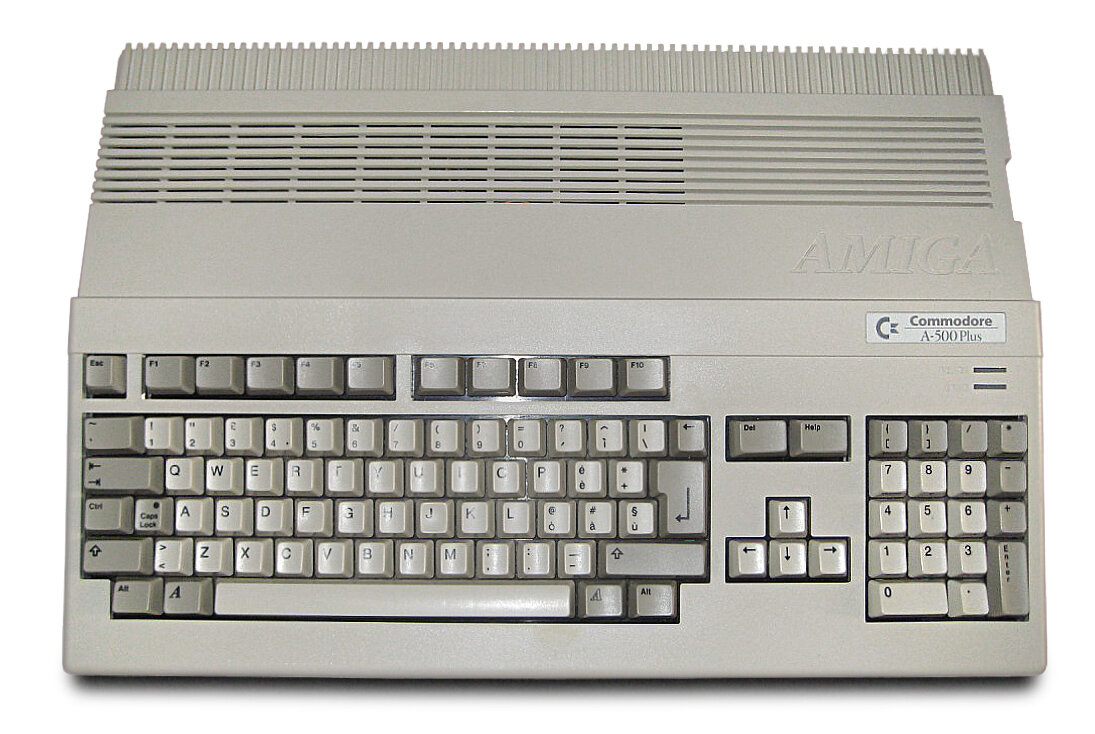

Photo 1: Sernot at it.wikipedia (Non-creditable modifications as described below made by Ubcule, public domain, via Wikimedia Commons (Amiga 500 Plus (white background).jpg)
Home computer, 1991, Commodore. The Amiga 500 Plus is the 1991 revision of the Amiga 500 with the Enhanced Chip Set, 1 MB of chip RAM and Kickstart 2.04 as standard; it was sold only for about a year before the Amiga 600 replaced it, and some older games did not run on the new Kickstart.
| Years | 1991 to 1992 |
|---|---|
| Manufacturer | Commodore International |
| Processor | Motorola 68000 at 7.09 MHz (PAL) or 7.16 MHz (NTSC) |
| RAM | 1 MB chip RAM, expandable to 2 MB with a trapdoor expansion and up to 8 MB fast RAM through the side slot |
| ROM | 512 KB Kickstart 2.04 |
| Graphics | Enhanced Chip Set (ECS), up to 1280 x 512 in 4 colours (Super Hires and Productivity modes), 32 colours from 4096, HAM |
| Sound | Paula, 4 channels of 8 bit PCM in stereo |
| Built-in storage | 3.5" floppy disk drive (880 KB), battery-backed real time clock |
| Ports | as the Amiga 500 |
| Operating system | AmigaOS 2.04 |
| Dimensions | 474 (W) x 330 (D) x 62 (H) mm |
Documentation
No documents available yet for this model. Browse the documentation section.
