Commodore 128 D Plastic Case

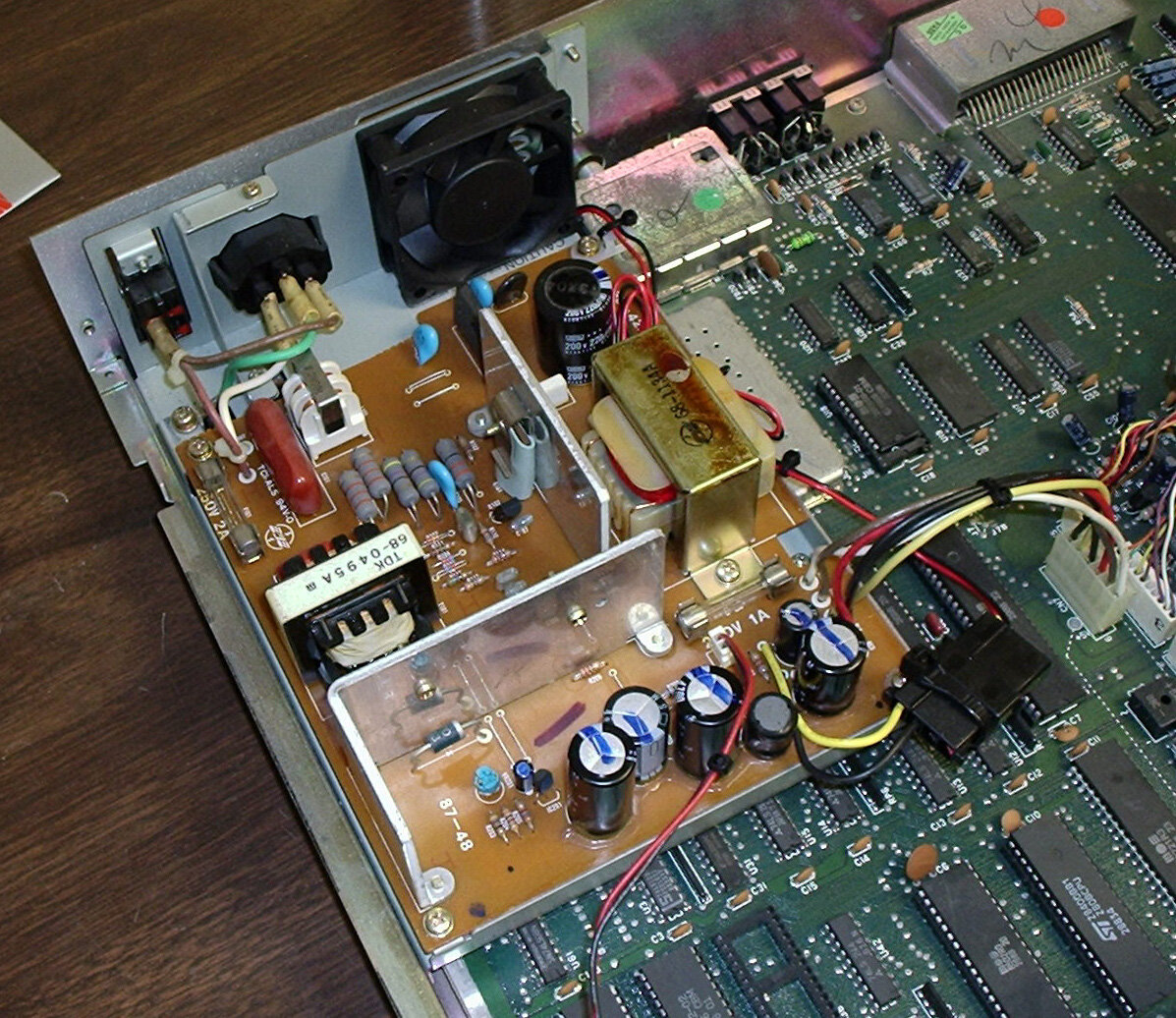

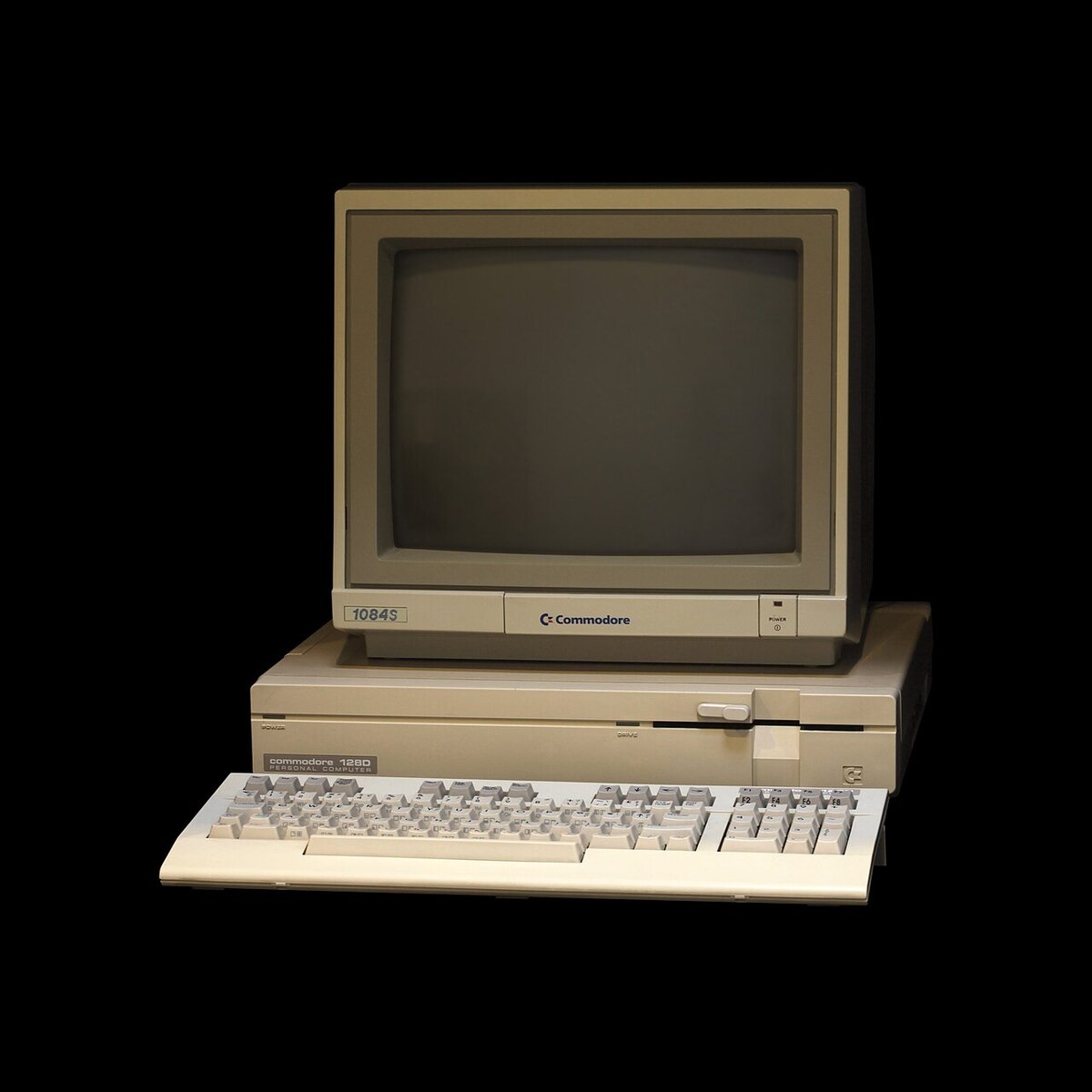

Photo 1: Rama & Musée Bolo, CC BY-SA 2.0 fr, via Wikimedia Commons (Commodore 128D-IMG 1726.jpg) Photo 2: Bigdumbdinosaur, CC BY-SA 3.0, via Wikimedia Commons (Psfan01.jpg)
Home computer, 1985, Commodore. The Commodore 128D is the desktop version of the Commodore 128 released in Europe at the end of 1985: a plastic case with a carrying handle and a cooling fan, a built-in 1571 floppy disk drive and a detachable keyboard.
| Years | 1985 to 1987 (plastic case) |
|---|---|
| Manufacturer | Commodore Business Machines |
| Processors | MOS Technology 8502 at 2 MHz and Zilog Z80 at 4 MHz for CP/M |
| RAM | 128 KB, expandable with the 1700/1750 RAM Expansion Units |
| ROM | 64 KB (BASIC 7.0, KERNAL, machine language monitor) |
| Graphics | VIC-II (40 columns) and VDC 8563 (80 columns, 16 KB video RAM) |
| Sound | SID 6581, 3 voices |
| Built-in storage | 1571 double-sided 5.25" floppy disk drive (340 KB) |
| Ports | 2 control ports, expansion port, serial bus, user port, cassette port, RGBI video, RF and audio/video output |
| Operating systems | Commodore BASIC 7.0, C64 mode, CP/M 3.0 |
| Case | plastic with carrying handle, cooling fan and detachable keyboard |
