Commodore 65

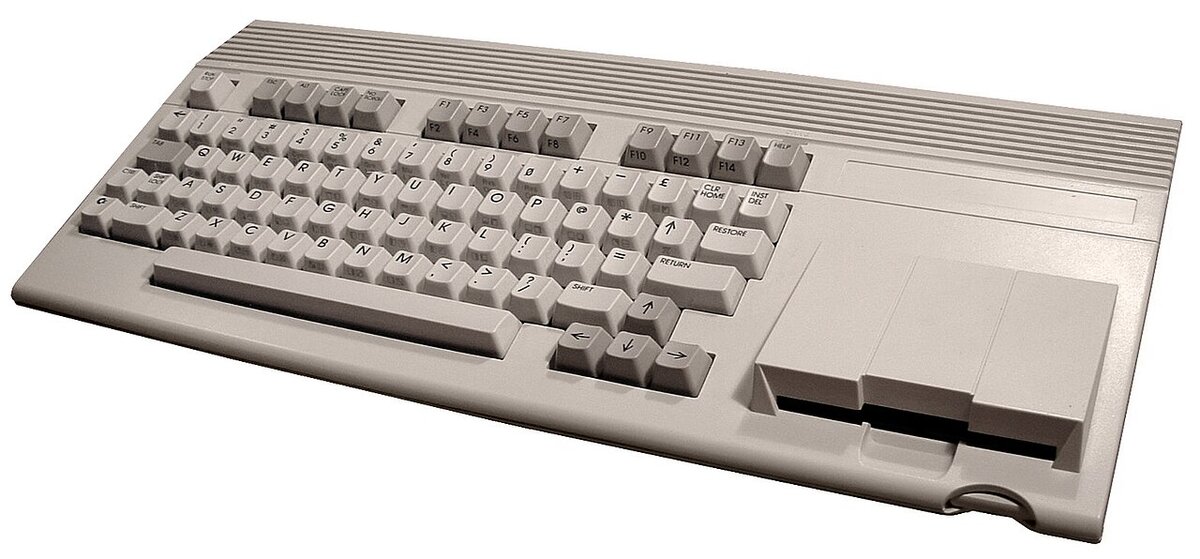

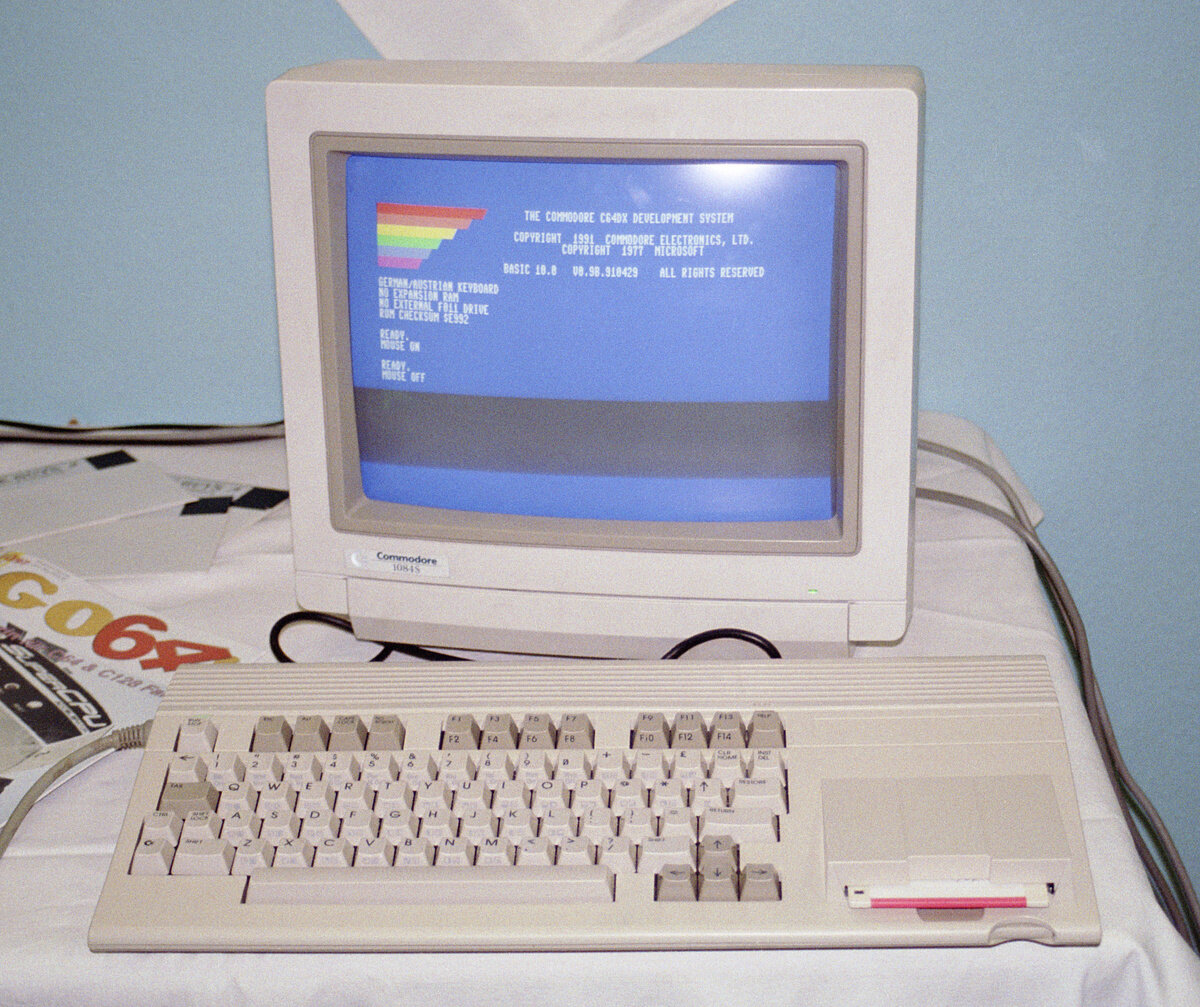

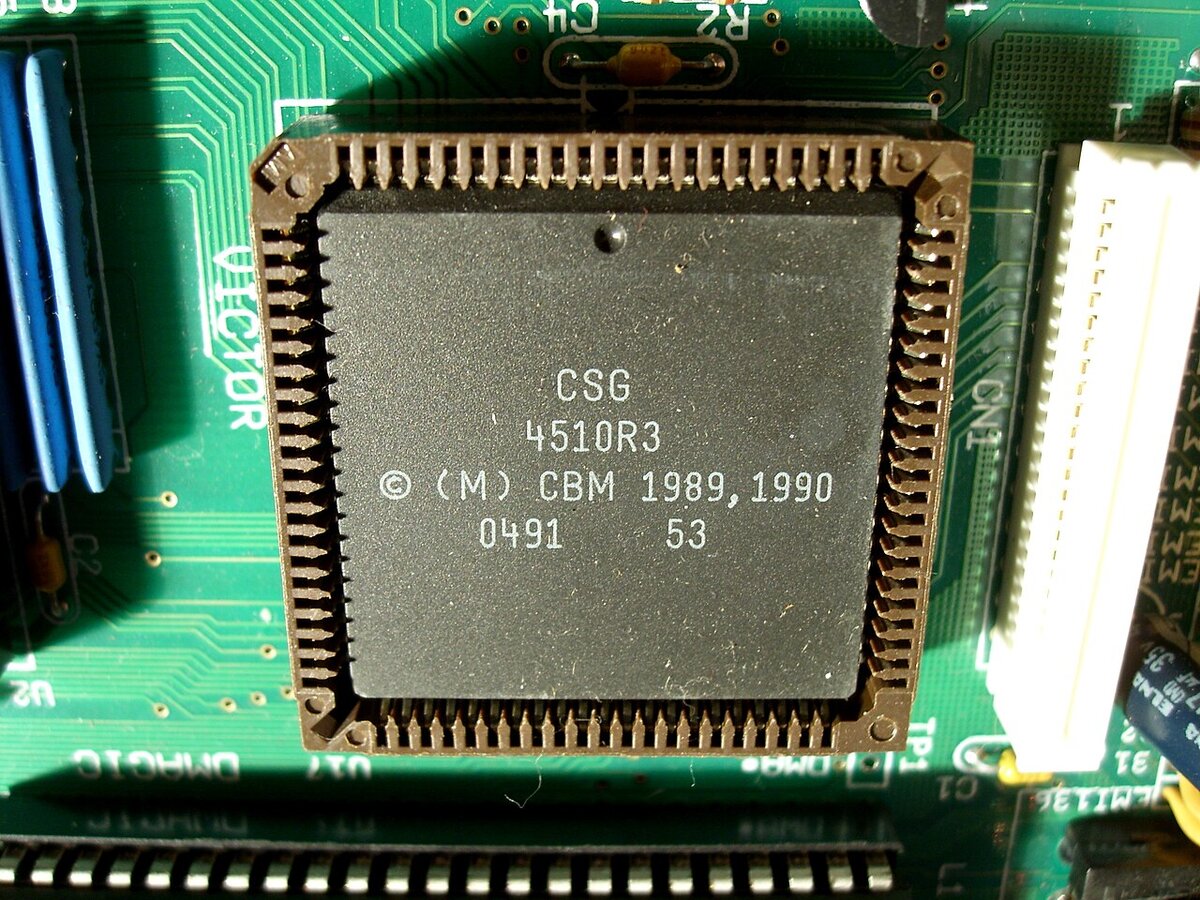

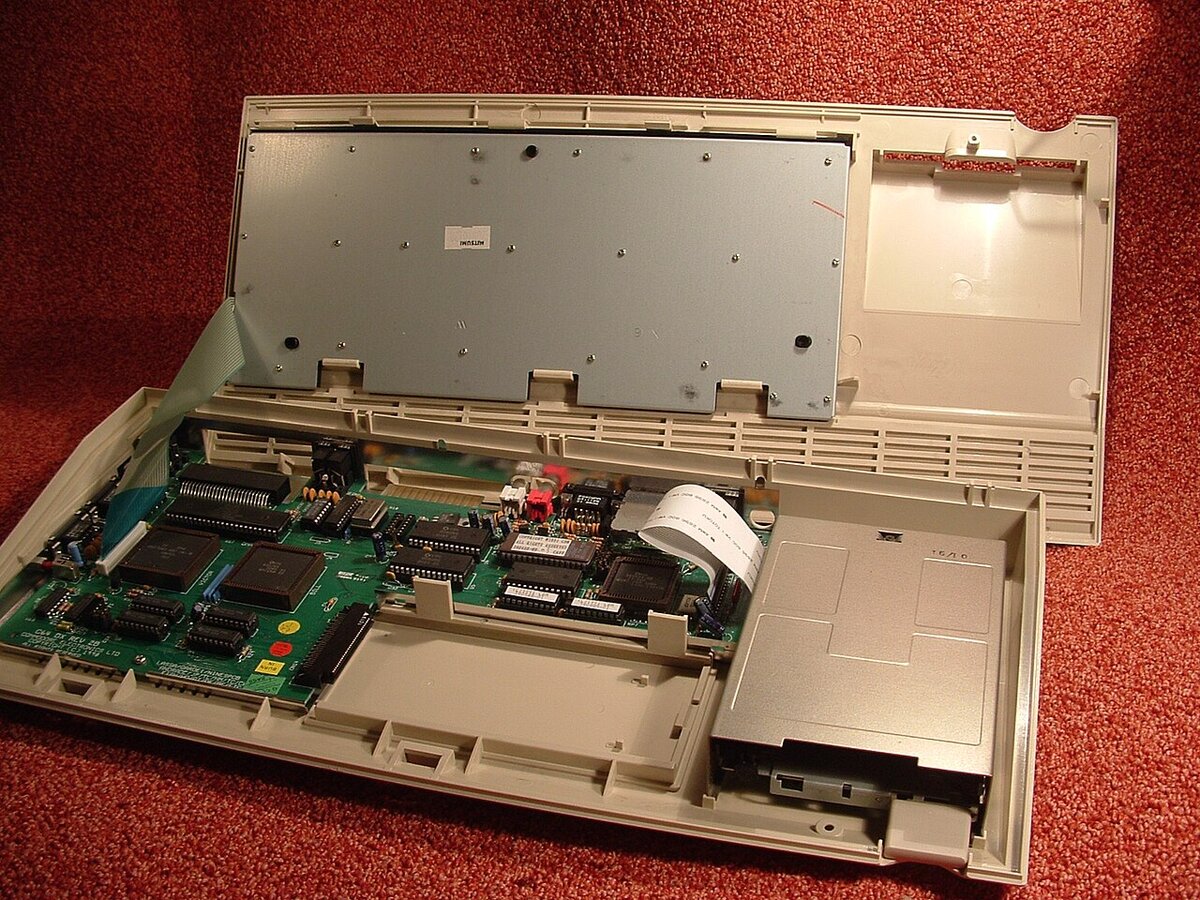

Photo 1: Machine, CC BY-SA 3.0, via Wikimedia Commons (C65alleine (no bg) (balance).jpg) Photo 2: Olaf1541, CC BY 2.5, via Wikimedia Commons (C65.jpg) Photo 3: Machine, CC BY-SA 3.0, via Wikimedia Commons (C65offen.jpg) Photo 4: Machine Later versions were uploaded by Chaddy., CC BY-SA 3.0, via Wikimedia Commons (C65cpu.jpg)
Prototype home computer, 1991, Commodore. The Commodore 65 (also C64DX) is an improved, backward compatible successor of the Commodore 64 developed in 1990 and 1991 and cancelled before release; a few hundred prototypes were sold off when Commodore went bankrupt in 1994 and are now among the most sought-after collector's items.
| Years | 1990 to 1991 (prototype) |
|---|---|
| Manufacturer | Commodore Business Machines |
| Processor | CSG 4510 (65CE02 core with built-in I/O) at 3.54 MHz |
| RAM | 128 KB, expandable to 8 MB through the RAM expansion port |
| ROM | 128 KB (BASIC 10.0, KERNAL, C64 mode) |
| Graphics | VIC-III 4567, up to 1280 x 400 pixels, 256 colours on screen from a palette of 4096, C64 compatible modes |
| Sound | 2 x SID 8580, stereo, 6 voices |
| Built-in storage | 3.5" floppy disk drive (1581 compatible, 880 KB) |
| Ports | 2 control ports, expansion port, RAM expansion port, serial bus, user port, RGB and composite video, stereo audio |
| Operating system | Commodore BASIC 10.0 with C64 mode |
