Atari TT 030

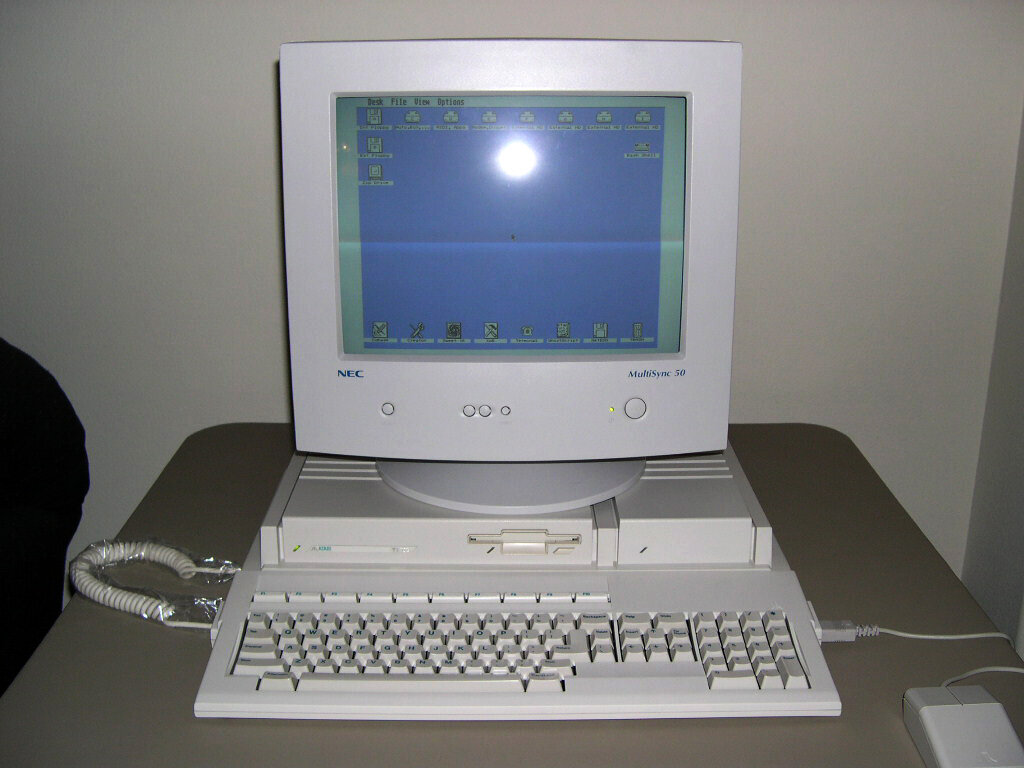

Photo 1: Tjlazer at English Wikipedia, public domain, via Wikimedia Commons (Atari TT030.JPG)
Workstation, 1990, Atari. The TT030 was intended as a Unix workstation and is the most powerful machine of the ST family: a 68030 with FPU at 32 MHz, up to 26 MB of memory and a new video chip with a 1280 x 960 monochrome mode for the dedicated TT monitor. Atari System V Unix arrived two years late, so the TT was sold mostly as a fast TOS computer for desktop publishing and music. The grey desktop case with detachable keyboard was later reused for the Mega STE.
| Years | 1990 to 1993 |
|---|---|
| Processor | Motorola 68030 at 32 MHz with 68882 FPU |
| RAM | 2 to 10 MB ST RAM plus up to 16 MB fast TT RAM |
| ROM | TOS 3.01 to 3.06 |
| Graphics | TT Shifter, 320 x 480 in 256 colours, 640 x 480 in 16, 1280 x 960 monochrome, palette of 4096 |
| Sound | YM2149 plus 8-bit stereo DMA sound |
| Storage | 3.5" floppy drive, internal SCSI hard disk |
| Ports | SCSI, ACSI, VME slot, 2 serial plus 2 more with the LAN port, printer, MIDI, VGA and TT monitor outputs |
| Price (1990) | about US$3,000 |
Documentation
No documents available yet for this model. Browse the documentation section.
