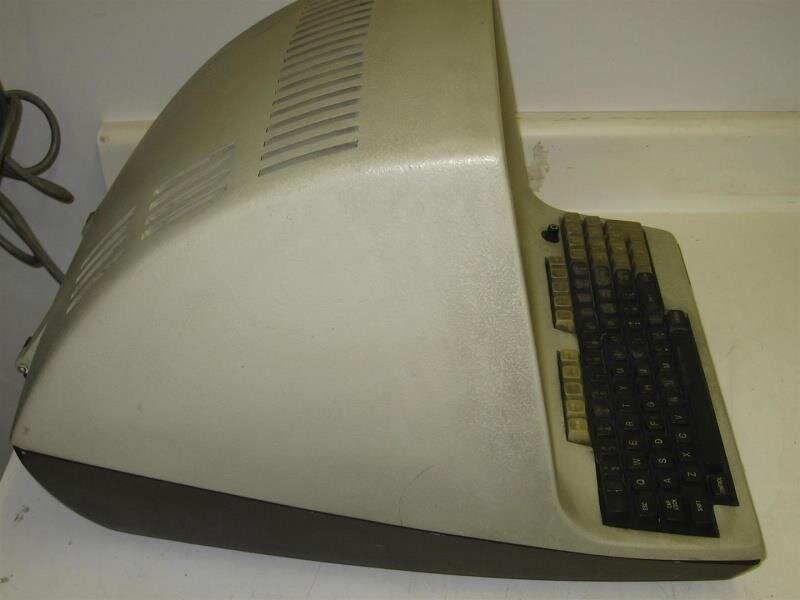

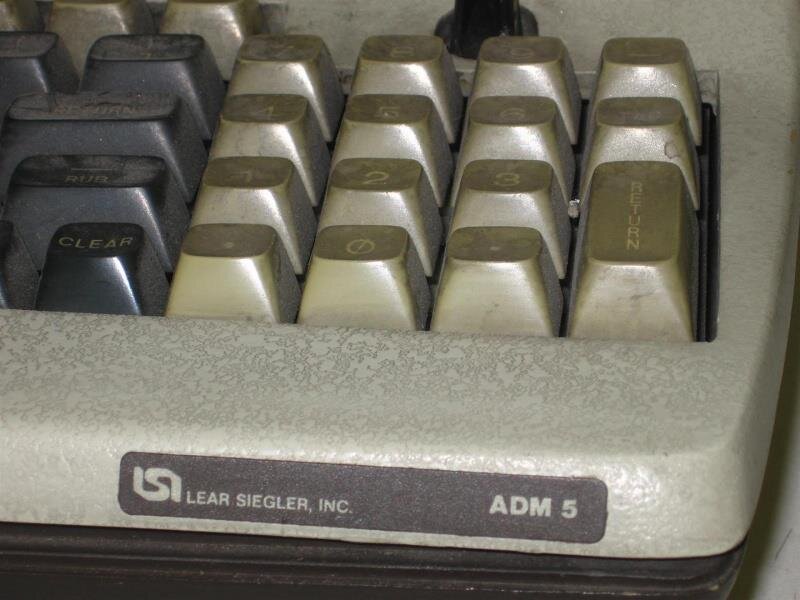

Lear Siegler ADM 5 Terminal
Alphanumeric video terminal, 1980, Lear Siegler. The ADM-5 was announced at COMDEX on 30 December 1980 as a low-cost "dumb terminal".
| Year | December 1980 |
|---|---|
| Manufacturer | Lear Siegler Inc., Anaheim, California |
| Model | ADM-5 |
| Text mode | 24 lines x 80 characters |
| Character matrix | 5 x 9 in a 7 x 10 cell, 128 characters, reverse video and reduced intensity attributes |
| Display | 12 inch, 16.2 kHz / 50 Hz |
| Keyboard | 83 keys |
| Interfaces | serial EIA-RS232-C 75 to 19,200 baud, 20 mA current loop 75 to 9600 baud, serial printer port |
| Dimensions | 393 (W) x 513 (D) x 343 (H) mm |
| Weight | 14.5 kg |
| Power | 60 W |
| Price (1981) | $645 |
