Amiga 1000

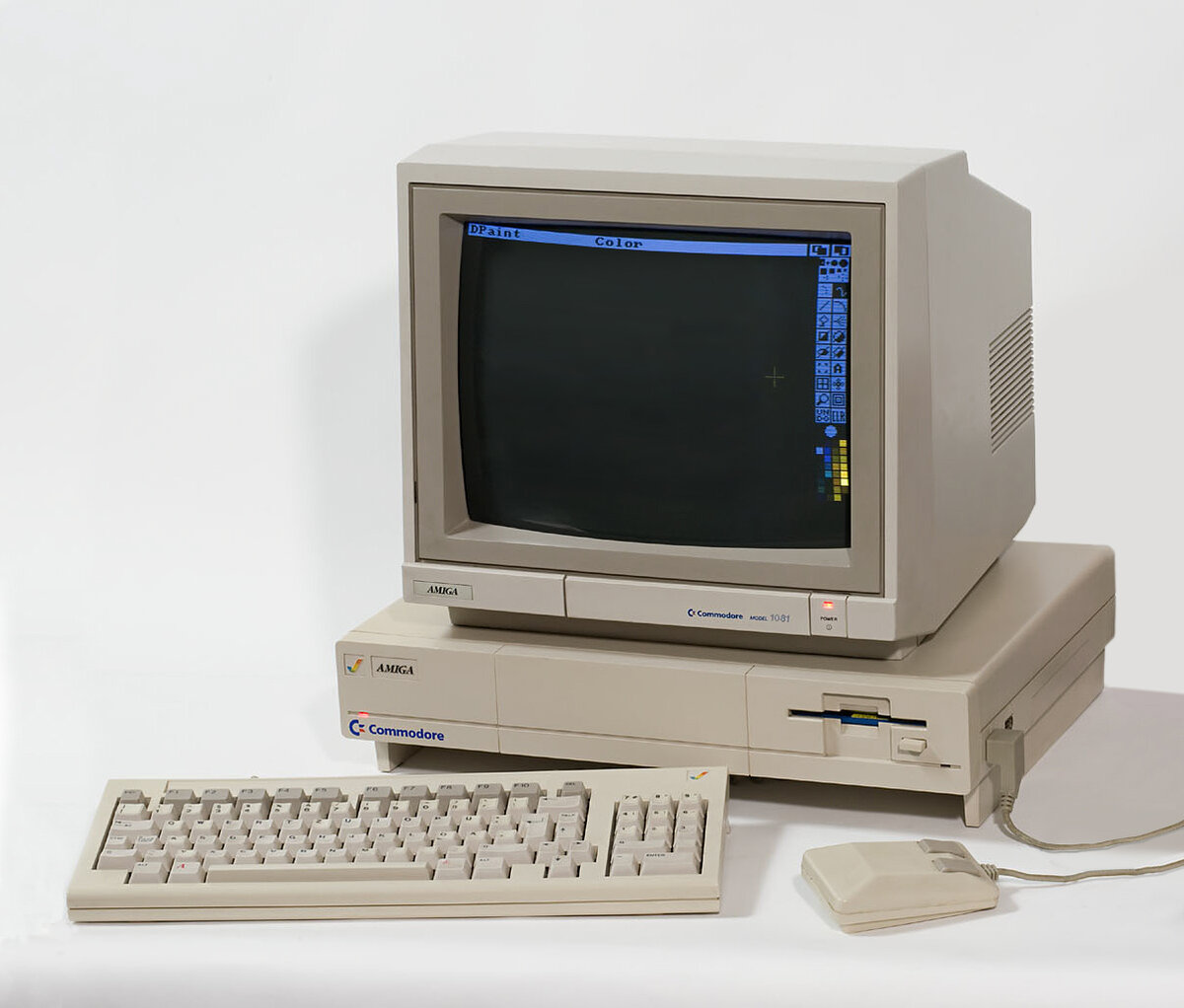

Photo 1: Original photo by Kaiiv (de.wikipedia), Editing by Pixel8, CC BY-SA 3.0, via Wikimedia Commons (Amiga 1000DP.jpg) Photo 2: Kaiiv, CC BY-SA 3.0 de, via Wikimedia Commons (Amiga 1000 Back.jpg) Photo 3: Steve Heal, CC BY 2.5, via Wikimedia Commons (JayMiner Mitch.jpg)
Personal computer, 1985, Commodore-Amiga. The Amiga 1000 is the first Amiga, launched in New York in July 1985: a 68000 with the custom chips Agnus, Denise and Paula, 4096 colours, four-channel stereo sound and a pre-emptive multitasking operating system, years ahead of its competitors. The operating system was loaded from the Kickstart floppy into 256 KB of "writable control store" RAM.
| Years | July 1985 to 1987 |
|---|---|
| Manufacturer | Commodore-Amiga Inc. (US); PAL version made in Germany |
| Processor | Motorola 68000 at 7.16 MHz (NTSC) or 7.09 MHz (PAL) |
| RAM | 256 KB, expandable to 512 KB internally with the A1050 cartridge and to 8.5 MB through the side expansion slot |
| ROM | 8 KB bootstrap; Kickstart loaded from disk into 256 KB WCS RAM |
| Graphics | Original Chip Set (OCS), up to 640 x 512 interlaced, 32 colours from a palette of 4096, HAM mode with 4096 colours on screen |
| Sound | Paula, 4 channels of 8 bit PCM in stereo, up to 28 kHz |
| Built-in storage | 3.5" floppy disk drive (880 KB) |

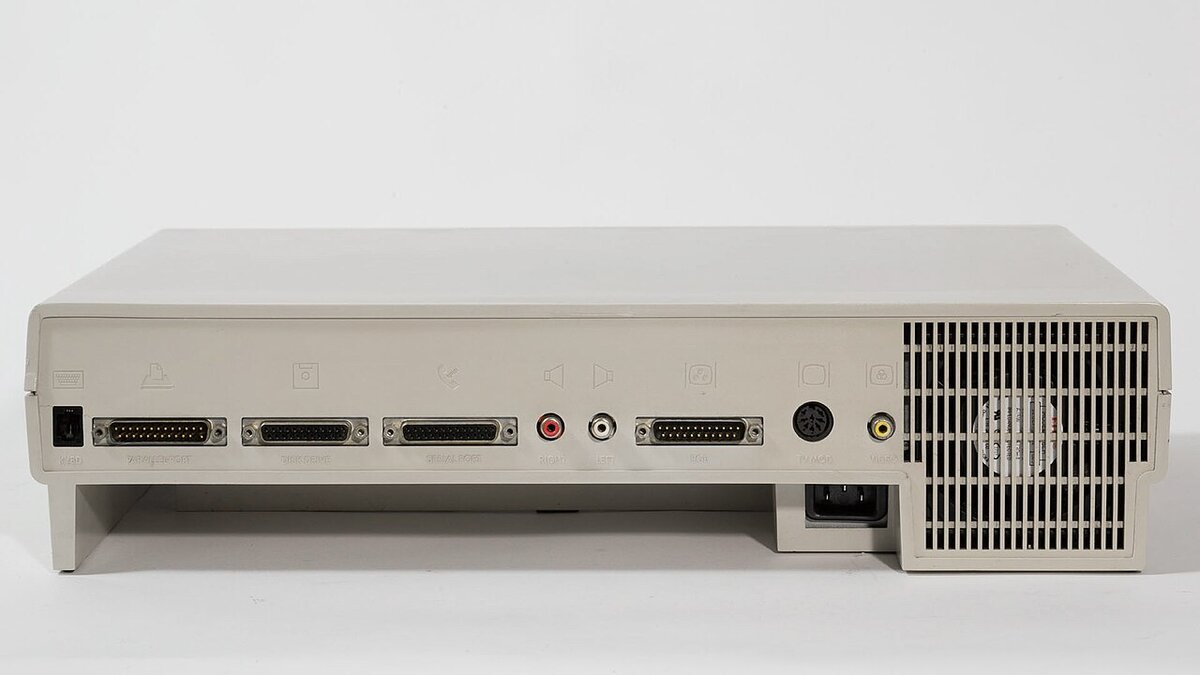

| Ports | keyboard, 2 mouse/joystick, serial, parallel, external floppy, RGB video, composite video, 86-pin side expansion, stereo audio |
| Operating system | AmigaOS 1.0 to 1.3 (Kickstart on disk) |

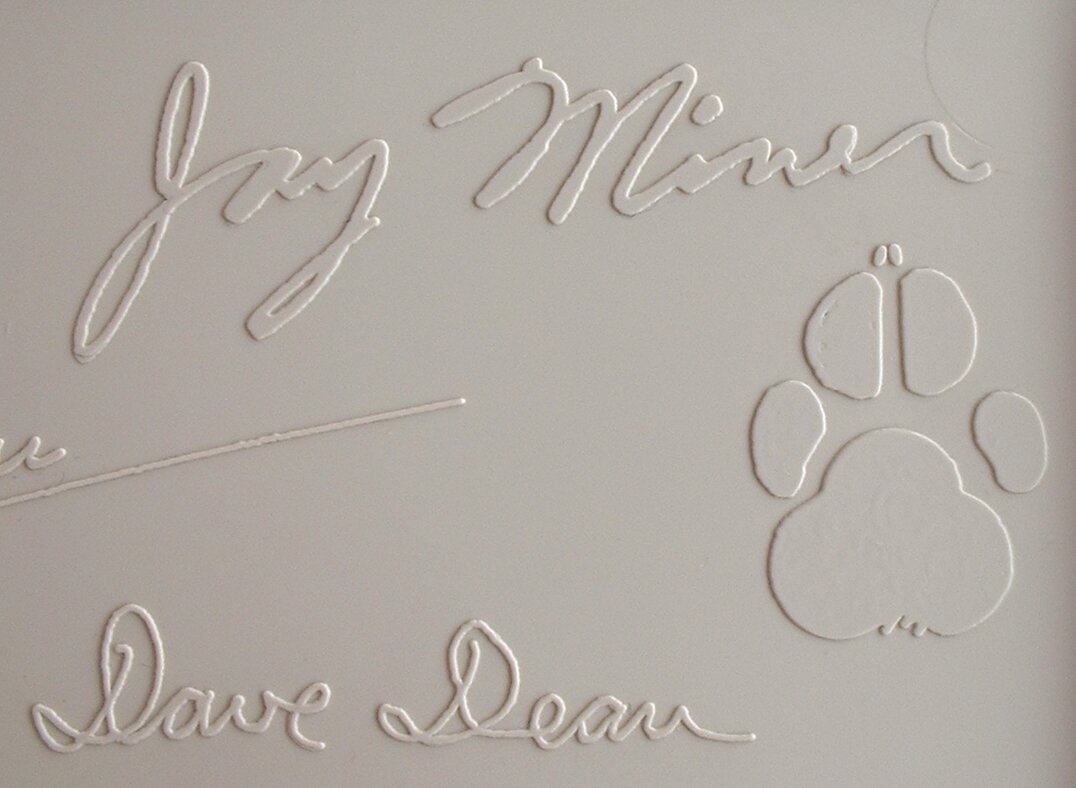

| Distinguishing features | keyboard garage under the case, signatures of the design team moulded inside the case |
| Dimensions | 451 (W) x 330 (D) x 108 (H) mm |
| Price (1985) | US$1,295 without monitor |
Documentation
No documents available yet for this model. Browse the documentation section.
