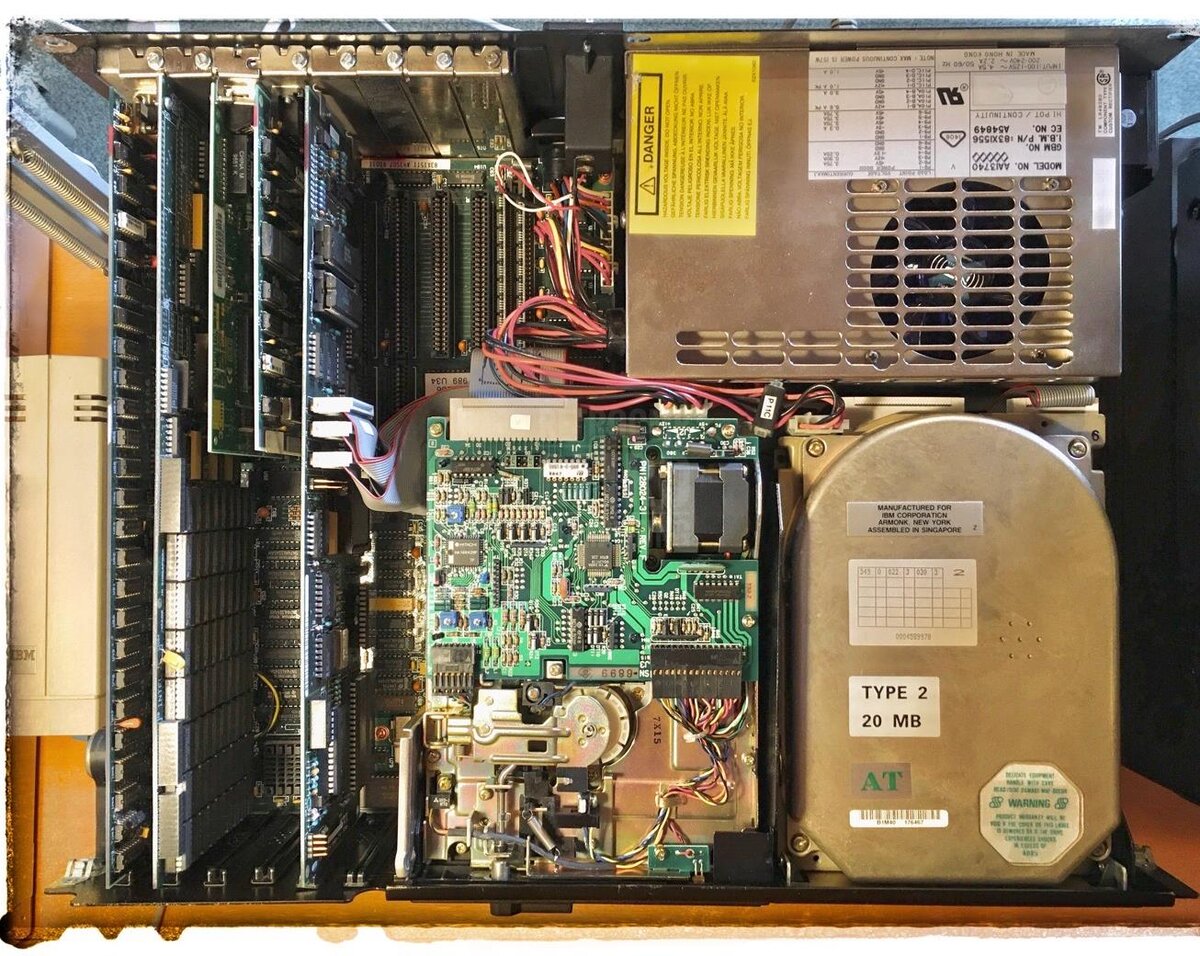

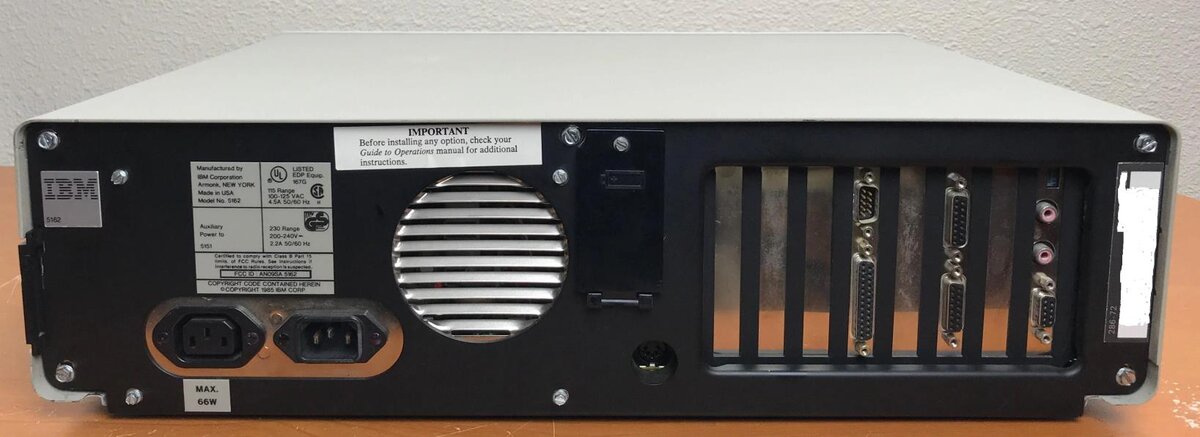

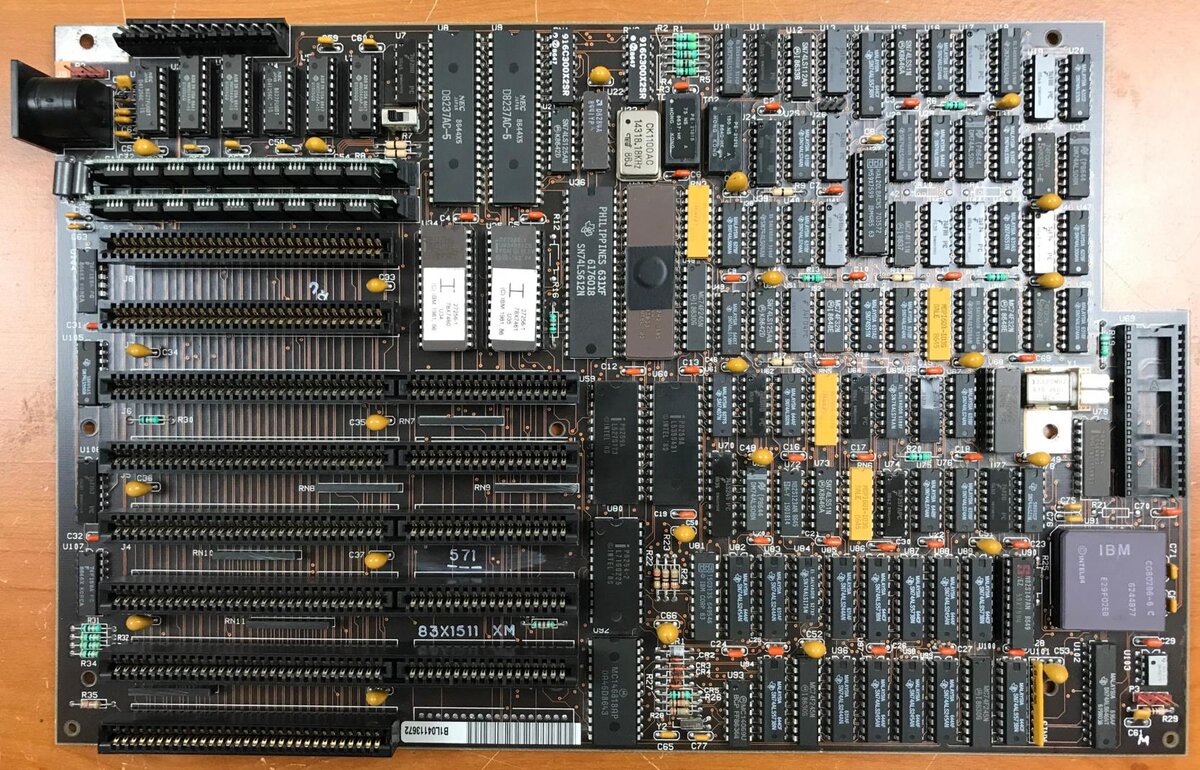

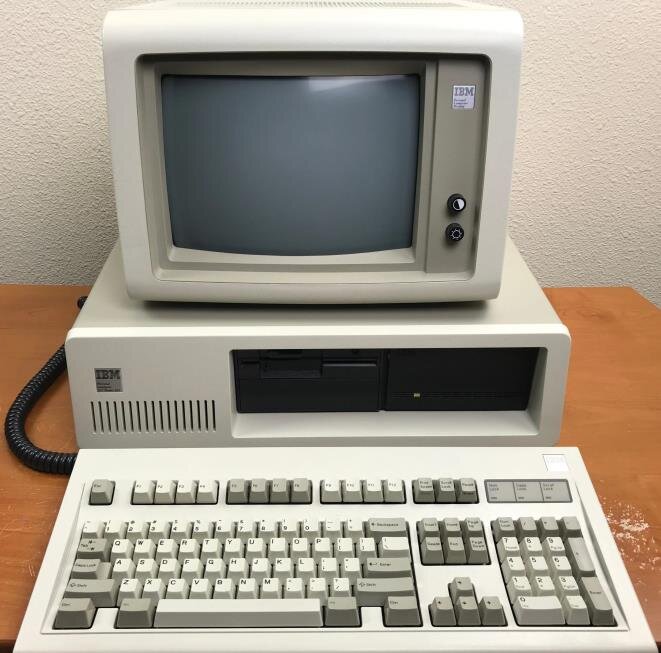

IBM XT 286 (5162)
Personal computer, 1986, IBM. The IBM XT 286 (5162) is an XT case with an 80286 processor and zero wait state memory, actually faster than the 6 MHz AT.
| Year | 1986 |
|---|---|
| Manufacturer | International Business Machines Corporation (IBM) |
| Model | 5162 |
| Processor / coprocessor | Intel 80286 / 80287 at 6 MHz |
| RAM | 640 KB, expandable to 12.6 MB |
| ROM | 64 KB (32 KB for BASIC) |
| Monitor | 12 inch CRT, monochrome or colour |
| Storage | 5.25" floppy disk drive (1.2 MB) standard, optional 3.5" (720 KB) or 5.25" (1.2 MB or 360 KB); MFM hard disk (ST 225, 20 MB, 85 ms) |
| Video interface | monochrome text only (MDA) or colour (EGA or PGA) |
| Interfaces | RS232-C (DB-9), Centronics (DB-25) |
| Expansion | 5 x 16 bit and 3 x 8 bit ISA slots |
| Dimensions | 500 (W) x 410 (D) x 142 (H) mm |
| Weight | system 12.7 kg, monitor 7.9 kg, keyboard 2.7 kg |
| Operating systems | DOS 3.2, PC/IX, SCO UNIX, Xenix, Minix |
| Power supply | system 157 W, monitor 95 W |
| Price (1986) | $3,995 without monitor and keyboard |
Documentation
- IBM XT 286 (5162) - Brochure
- IBM XT 286 (5162) - Enhanced Graphics Adapter (EGA) option
- IBM XT 286 (5162) - Model introduction
- IBM XT 286 (5162) - Operator's manual
- IBM XT 286 (5162) - Technical reference
- IBM XT 286 (5162) - Technical reference
