IBM 5153 Colour Monitor CGA

Producer: IBM  -  Category: Monitor

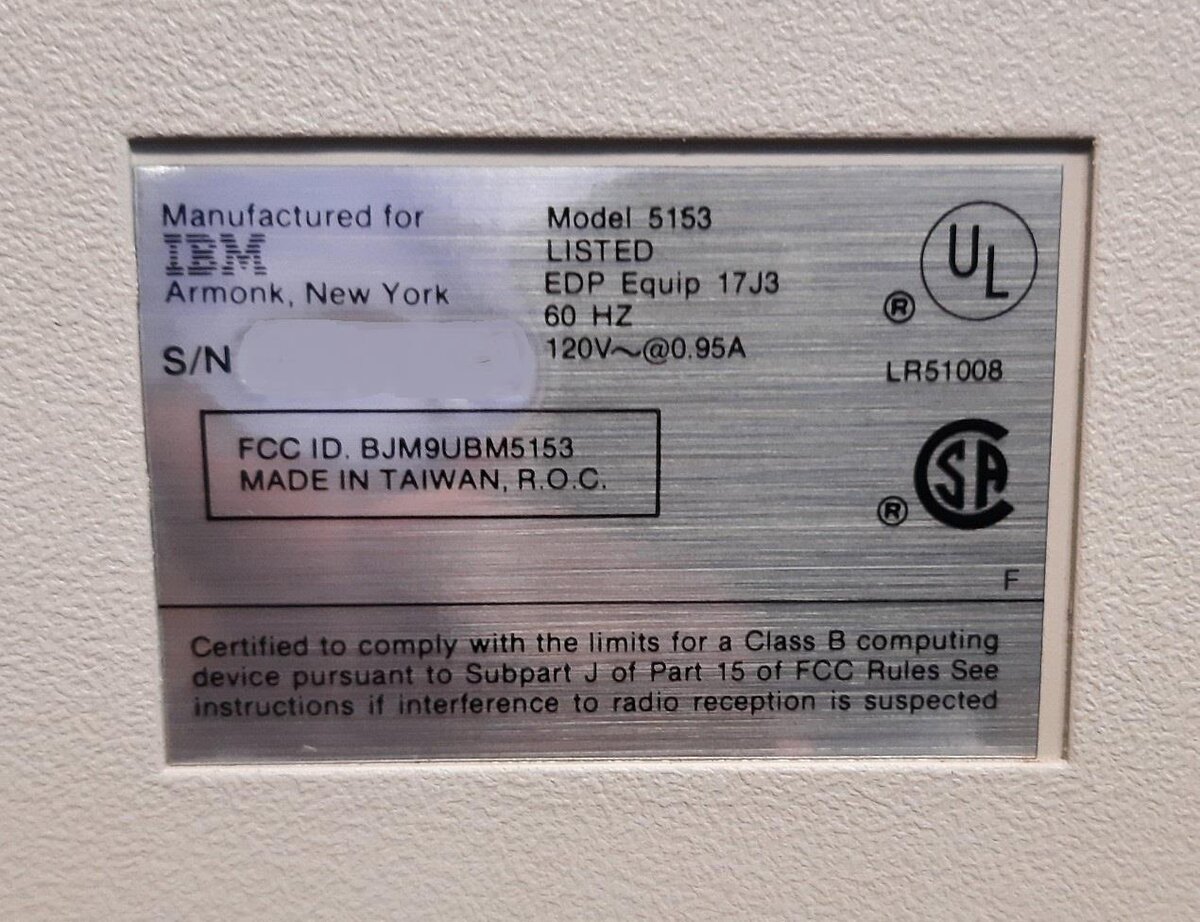

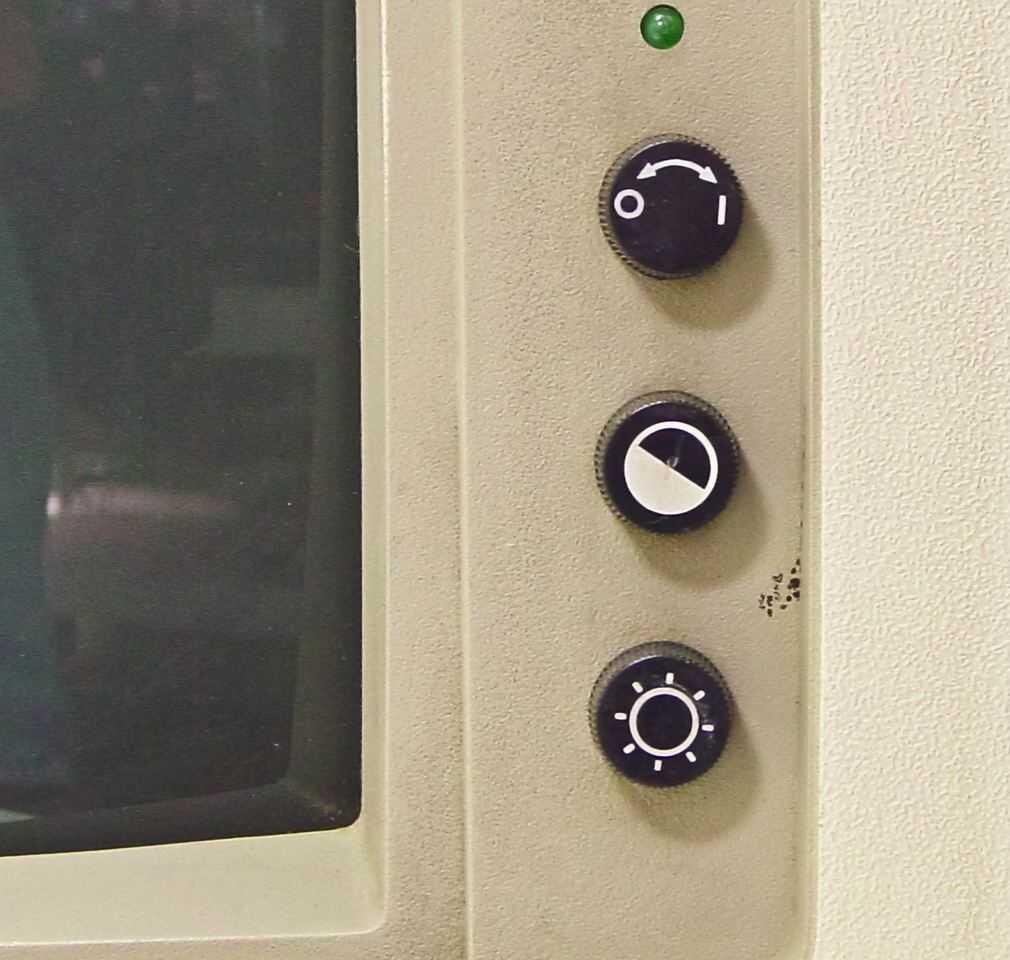

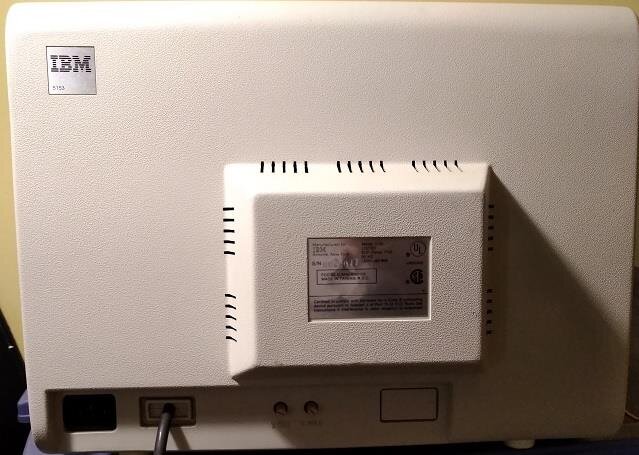

IBM 5153 Colour Monitor CGA - photo 1 IBM 5153 Colour Monitor CGA - photo 2 IBM 5153 Colour Monitor CGA - photo 3

Colour monitor, 1983, IBM. The IBM 5153 Color Display is the CGA monitor of the IBM PC family.

Year1983
ManufacturerIBM
Model5153
Screen13 inch, TTL RGB
Resolution320 x 240 progressive, 480 interlaced
Horizontal frequency15.75 kHz
Vertical frequency60 Hz
InputRGB (CGA)
Dimensions392 (W) x 407 (D) x 297 (H) mm
Weight11.8 kg
Power71 W
