IBM PS/2 Model 30

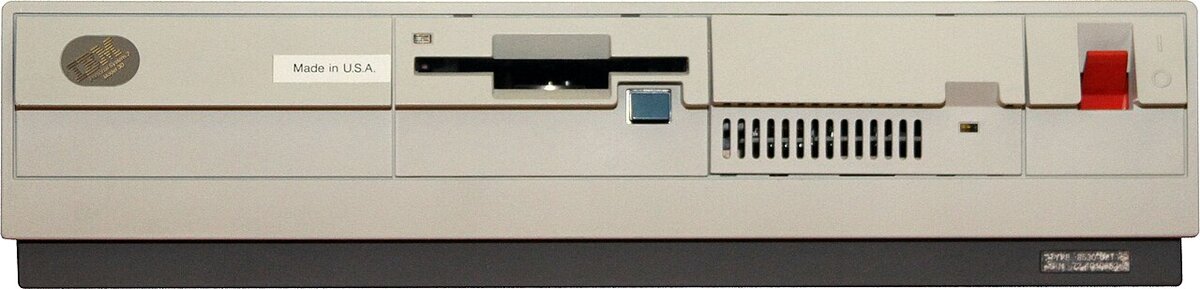

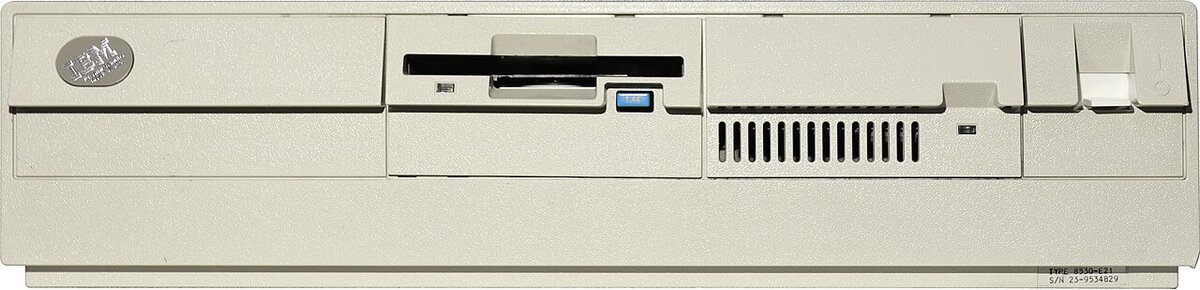

Photo 1: DigitalIceAge, CC BY 4.0, via Wikimedia Commons (IBM PS-2 Model 30 286 front view.jpg) Photo 2: Museo de Informática, CC BY-SA 2.0, via Wikimedia Commons (IBM PS2 (R) model 30 (white background).jpg)
Personal computer, 1987, IBM. The PS/2 Model 30 is the entry-level machine of the Personal System/2 line with which IBM replaced the PC, XT and AT in April 1987. Unlike the larger PS/2 models it keeps the ISA bus and an 8086 processor, but it introduced the new 3.5" 720 KB floppy drives, the MCGA graphics with 256 colours, the PS/2 keyboard and mouse ports and the slim case that were common to the whole family. A 286 version followed in 1988.
| Years | 1987 to 1990 |
|---|---|
| Processor | Intel 8086 at 8 MHz |
| RAM | 640 KB |
| Graphics | MCGA, 320 x 200 in 256 colours, 640 x 480 monochrome |
| Storage | 1 or 2 x 3.5" floppy drives of 720 KB, optional 20 MB hard disk |
| Operating system | PC DOS 3.3 |
| Ports | serial, parallel, PS/2 keyboard and mouse, analogue VGA-style monitor, 3 ISA slots |
| Price (1987) | US$1,695 |
Documentation
No documents available yet for this model. Browse the documentation section.
