Macintosh II vx

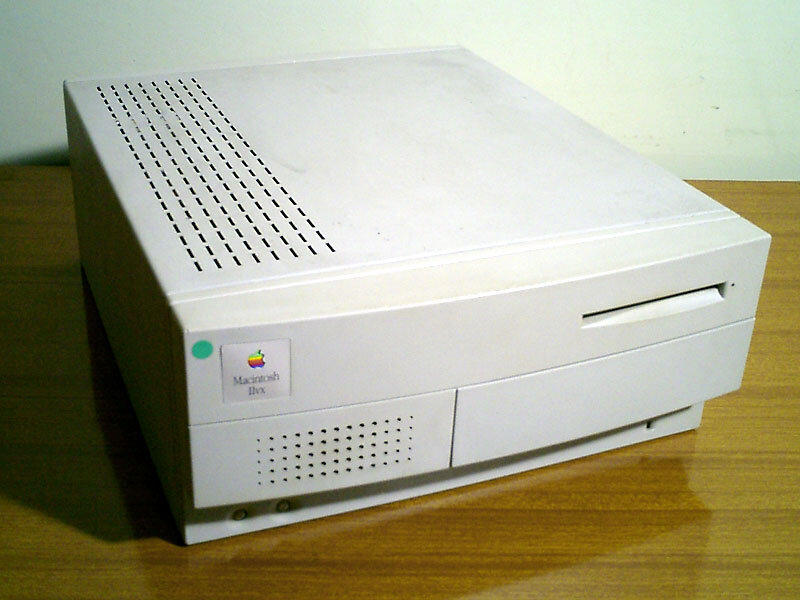

Photo 1: CC BY-SA 3.0, via Wikimedia Commons (Macintosh IIvx.jpg)
Personal computer, 1992, Apple. The Macintosh IIvx is the last of the Macintosh II family: a 32 MHz 68030 with 68882 in a new metal desktop case shared with the Performa 600, and the first Macintosh that could have an internal CD-ROM drive.
| Years | October 1992 to October 1993 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68030 at 32 MHz with 68882 floating point unit (16 MHz bus) |
| RAM | 4 MB, expandable to 68 MB (80 ns 30-pin SIMM) |
| ROM | 1 MB |
| VRAM | 512 KB, expandable to 1 MB |
| Built-in storage | 3.5" SuperDrive (1.4 MB), hard disk (80/160 MB), optional internal double-speed CD-ROM drive |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus), 2 x DIN-8 serial, DB-15 video, audio input and output |
| Expansion | 3 NuBus slots, processor direct slot |
| Operating system | System 7.1 to Mac OS 7.6.1 |
| Dimensions | 152 (H) x 330 (W) x 419 (D) mm |
| Weight | 11.3 kg |
| Price (1992) | US$2,949 |
Documentation
No documents available yet for this model. Browse the documentation section.
