IBM 5151 Monochromatic Monitor

Producer: IBM  -  Category: Monitor

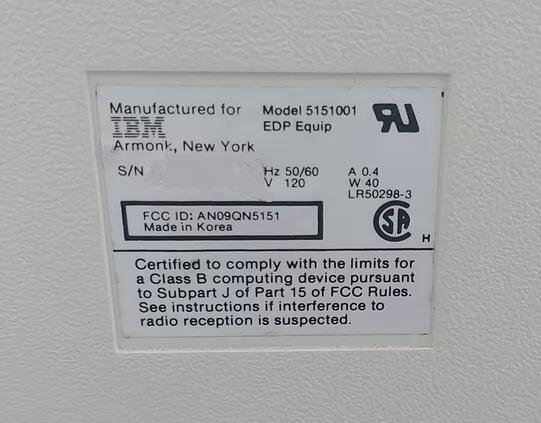

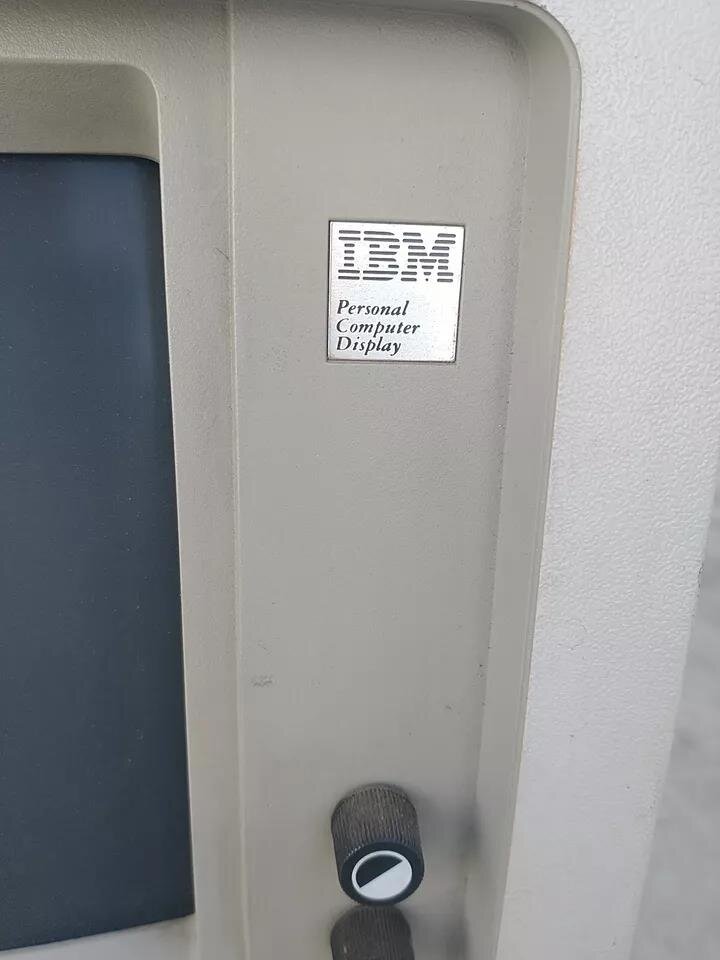

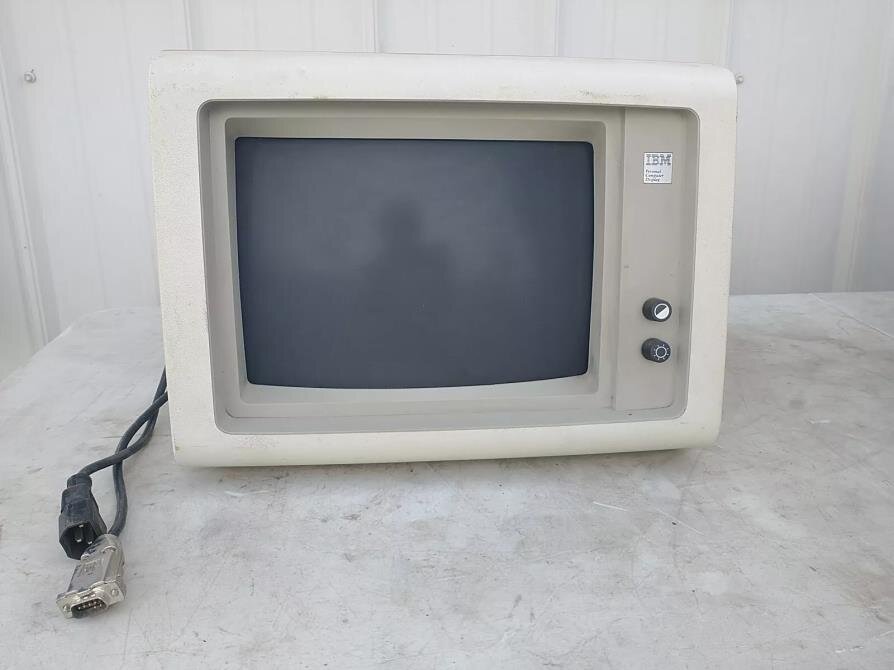

IBM 5151 Monochromatic Monitor - photo 1 IBM 5151 Monochromatic Monitor - photo 2 IBM 5151 Monochromatic Monitor - photo 3

Monochrome monitor, 1981, IBM. The IBM 5151 Monochrome Display was the standard green-phosphor monitor of the original IBM PC, driven by the MDA adapter.

Year1981
ManufacturerIBM
Model5151
Screen12 inch, TTL
Resolution720 x 350
Horizontal frequency18.432 kHz
Vertical frequency50 Hz
InputMDA (Monochrome Display Adapter)
Dimensions380 (W) x 360 (D) x 280 (H) mm
Weight5.7 kg
Power95.2 W
