Macintosh Quadra 700

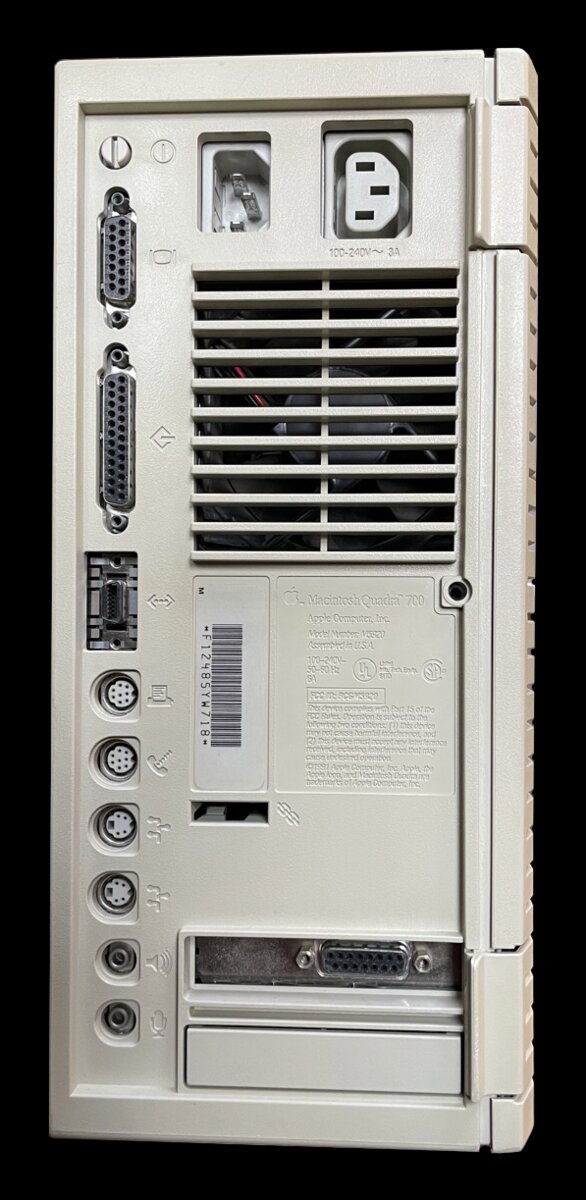

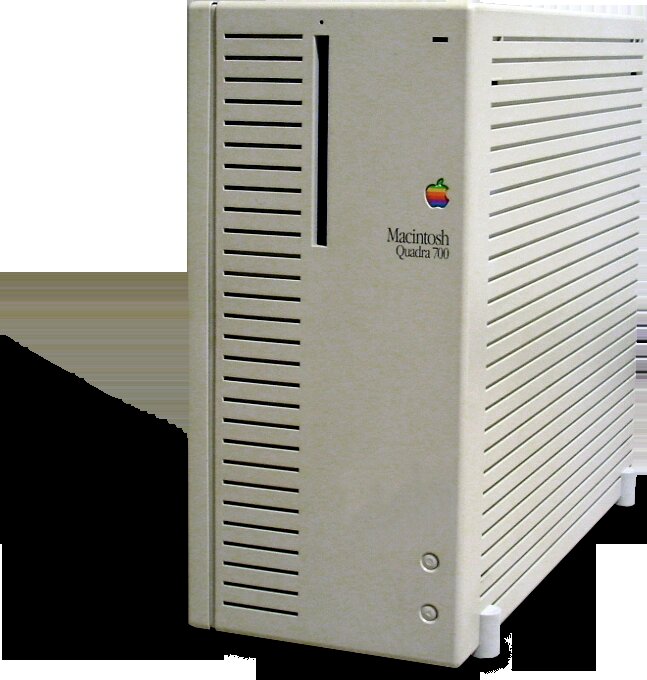

Photo 1: Ben Boldt at English Wikipedia, public domain, via Wikimedia Commons (Macintosh Quadra 700.png) Photo 2: Drinebold, CC BY-SA 4.0, via Wikimedia Commons (Quadra 700 Rear Panel.png)
Personal computer, 1991, Apple. The Macintosh Quadra 700 was, with the Quadra 900, the first Macintosh with the 68040 processor, introduced in October 1991 to compete with 486 PCs; it is also Apple's first mini-tower, essentially a IIci case turned on its side, with built-in Ethernet and 24 bit video.
| Years | October 1991 to March 1993 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68040 at 25 MHz |
| RAM | 4 MB, expandable to 68 MB (80 ns 30-pin SIMM) |
| ROM | 1 MB |
| VRAM | 512 KB, expandable to 2 MB (24 bit colour at 832 x 624) |
| Built-in storage | 3.5" SuperDrive (1.4 MB), hard disk (80 to 400 MB) |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus), 2 x DIN-8 serial, DB-15 video, Ethernet (AAUI), audio input and output |
| Expansion | 2 NuBus slots, processor direct slot |
| Operating system | System 7.0.1 to Mac OS 8.1, A/UX |
| Dimensions | 140 (H) x 300 (W) x 365 (D) mm (mini-tower orientation) |
| Weight | 6.6 kg |
| Price (1991) | US$5,700 |
Documentation
No documents available yet for this model. Browse the documentation section.
