Macintosh Classic II

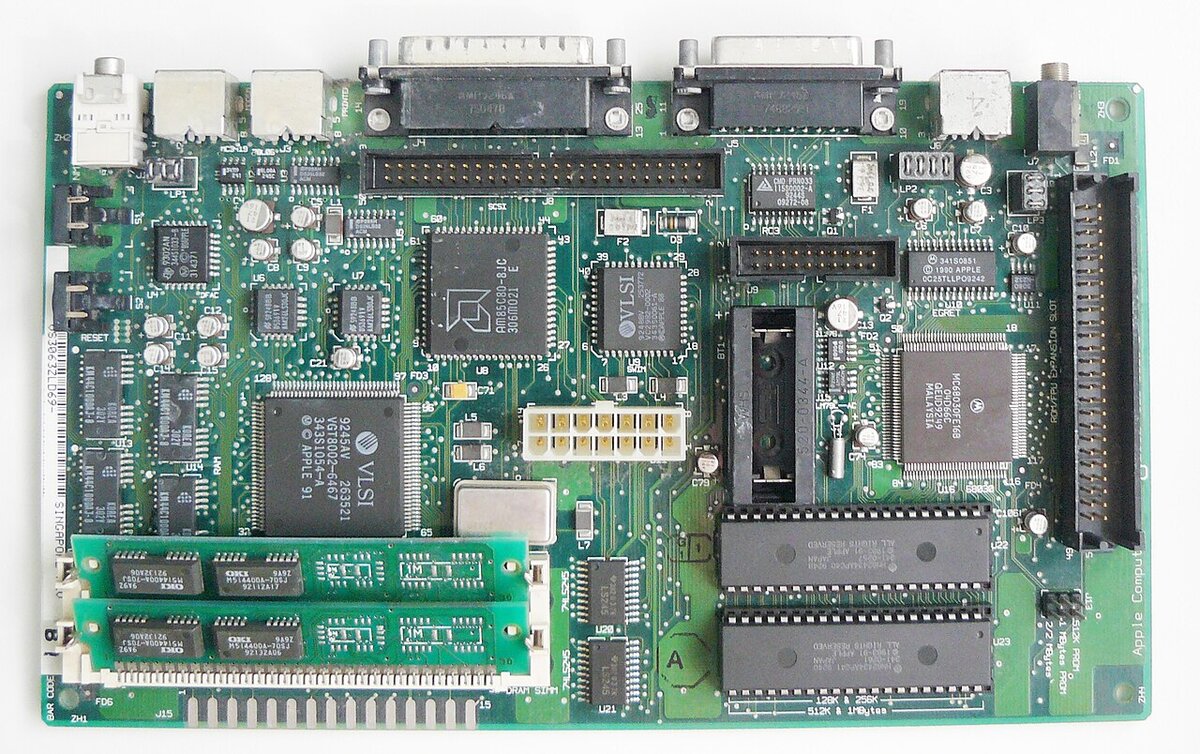

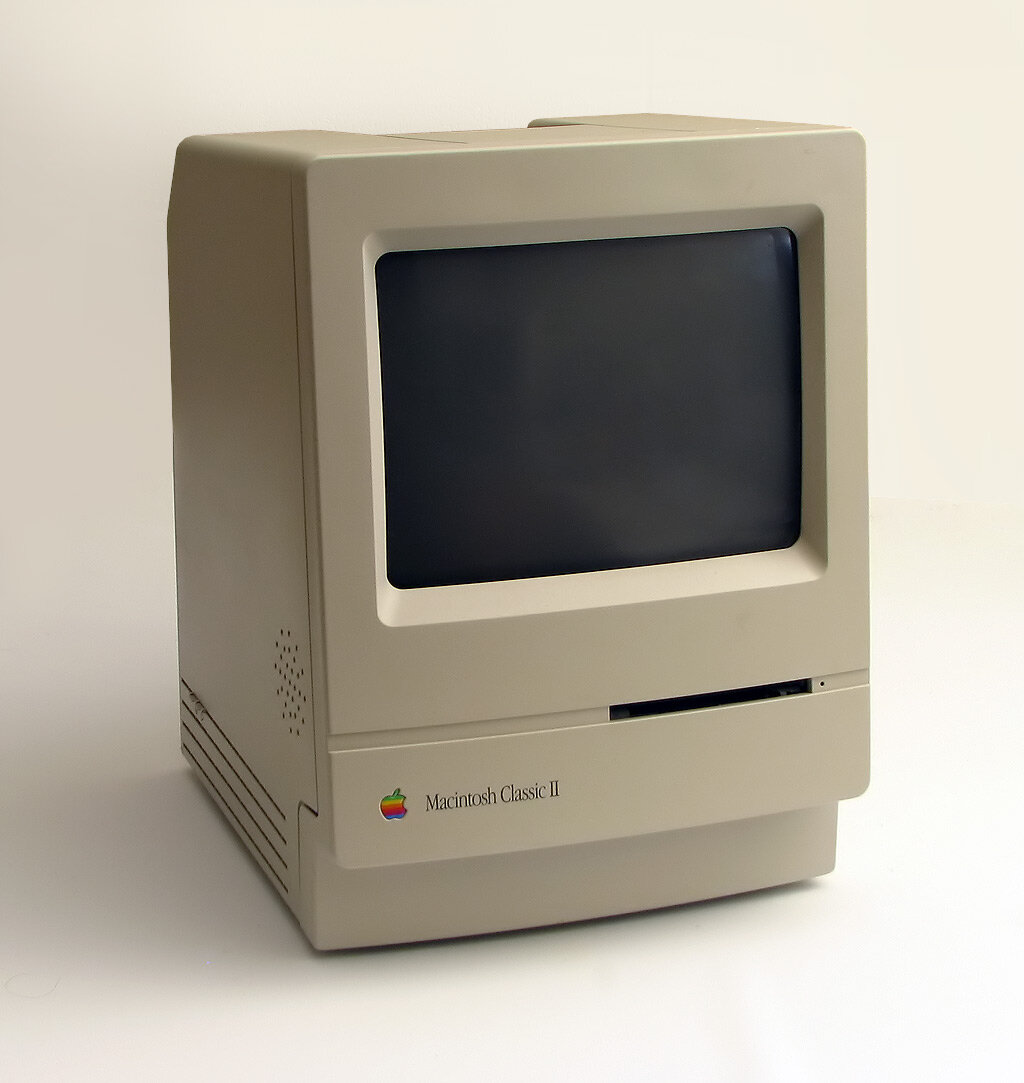

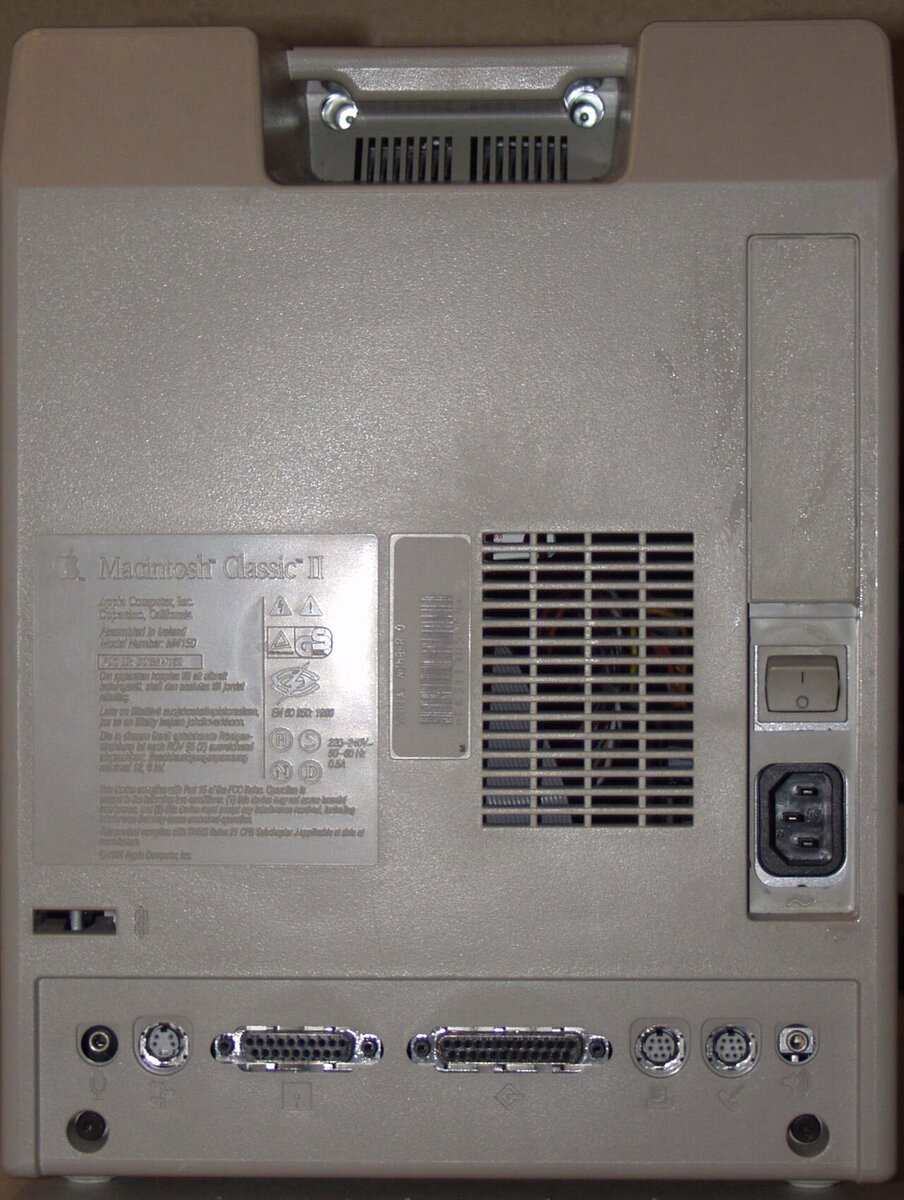

Photo 1: CC BY-SA 2.5, via Wikimedia Commons (Macintosh Classic 2.jpg) Photo 2: ksfan, CC BY 2.5, via Wikimedia Commons (Macintosh Classic II Rear View.jpg) Photo 3: RetroEditor, CC BY-SA 4.0, via Wikimedia Commons (Apple Macintosh Classic II Main Board.jpg)
Personal computer, 1991, Apple. The Macintosh Classic II is the compact Macintosh with a 16 MHz 68030 processor, successor of the Classic and the SE/30, in the same case with a moulded carrying handle.
| Years | October 1991 to September 1993 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68030, 32 bit, 16 MHz (16 bit data bus) |
| RAM | 2 MB, expandable to 10 MB (100 ns 30-pin SIMM) |
| ROM | 512 KB |
| Built-in storage | 3.5" SuperDrive (1.4 MB), hard disk (40/80 MB) |
| Display | 9 inch, 512 x 342 |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus), 2 x DIN-8 serial, audio input and output |
| Operating system | System 6.0.8L to Mac OS 7.6.1 |
| Dimensions | 332 (H) x 246 (W) x 286 (D) mm |
| Weight | 7.3 kg |
| Price (1991) | US$1,899 |
Documentation
No documents available yet for this model. Browse the documentation section.
