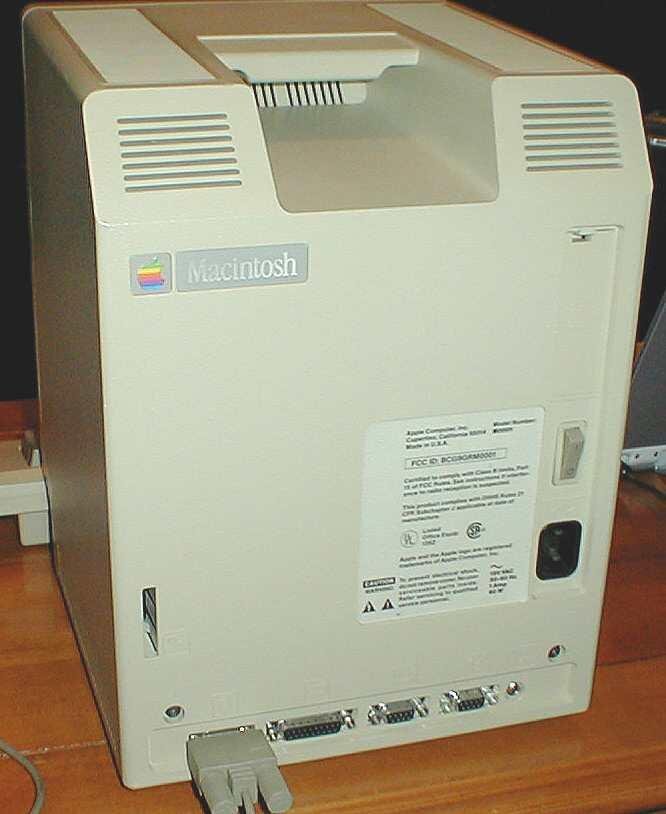

Macintosh 128K Model M0001 P
Personal computer, 1984, Apple. The original Macintosh 128K, introduced on 24 January 1984, brought the mouse and the graphical user interface to the mass market. Model M0001P is the European version.
| Years | 24 January 1984 to 1 October 1985 |
|---|---|
| Manufacturer | Apple Inc. (US) |

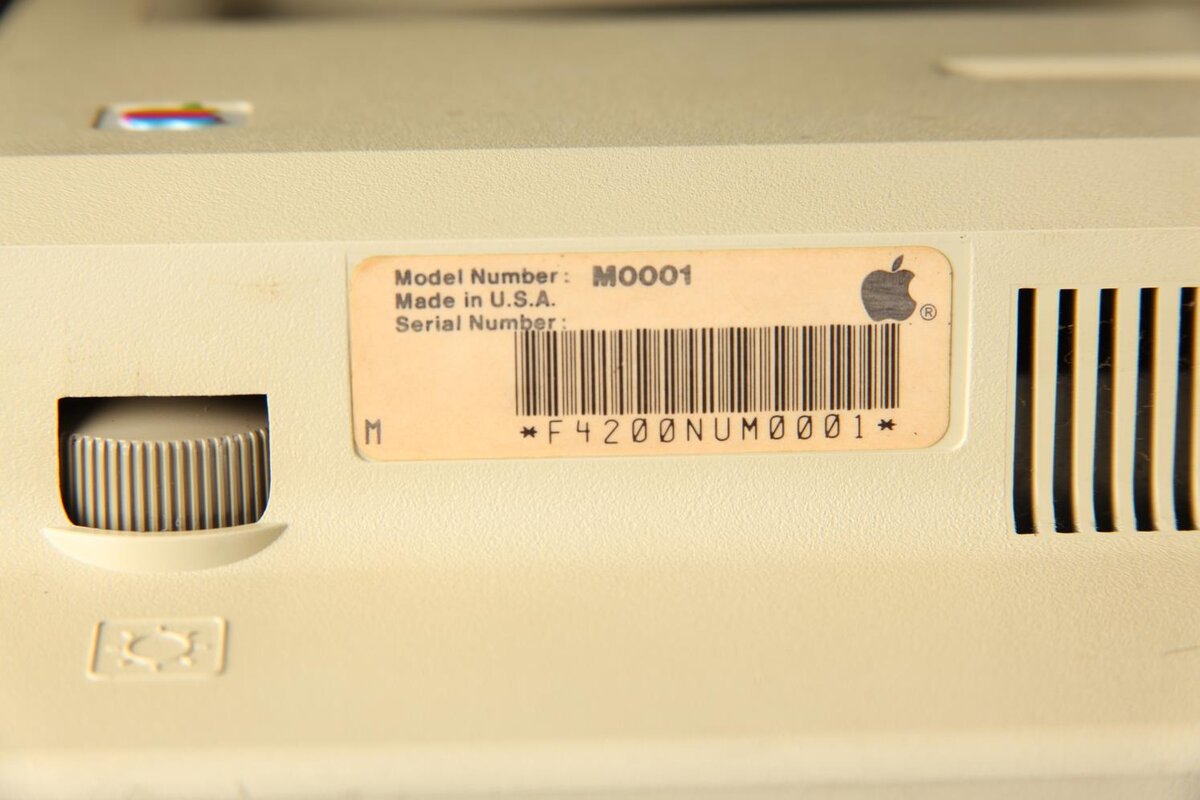

| Model | Macintosh 128K (US: M0001, Europe: M0001P) |
| Processor | Motorola 68000, 32 bit, 7.83 MHz |
| RAM | 128 KB |
| ROM | 64 KB |
| PRAM | powered by a 4.5 V battery |
| Built-in storage | 3.5" floppy disk drive (400 KB) |

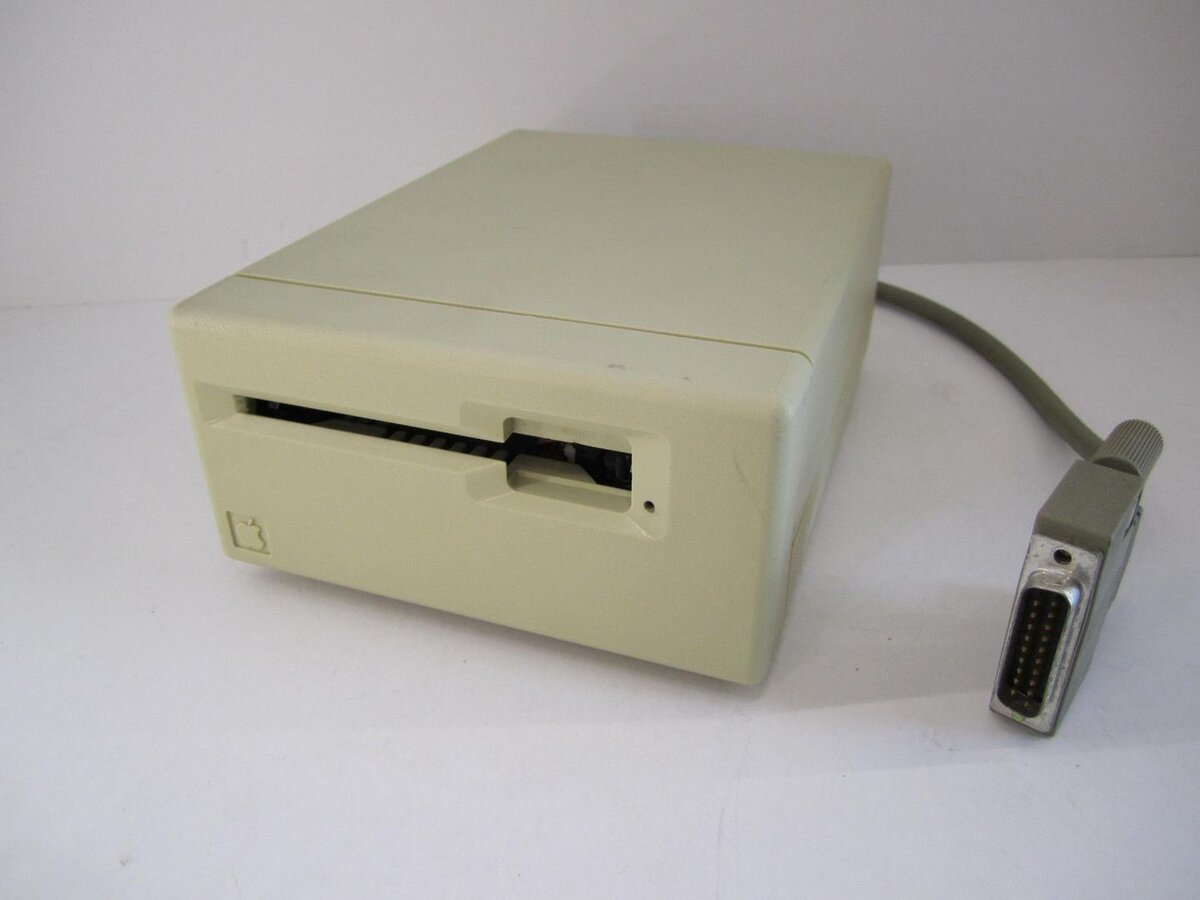

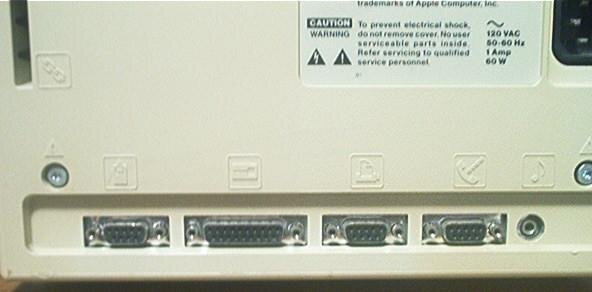

| Interfaces | DB-19 for external floppy drive, RJ-11 for keyboard, DE-9 for mouse, 2 x DE-9 serial RS232/RS-422 (modem and printer) |
| Display | 9 inch, 512 x 342 |
| Operating system | Mac OS |
| Dimensions | 345 (H) x 244 (W) x 276 (D) mm |
| Weight | 7.5 kg |
| Power | 60 W max |
| Price (1984) | $2,495 |
Documentation
- Macintosh 128K Model M0001 P - Hardware information
- Macintosh 128K Model M0001 P - Service manual
- Macintosh 128K Model M0001 P - User's guide
