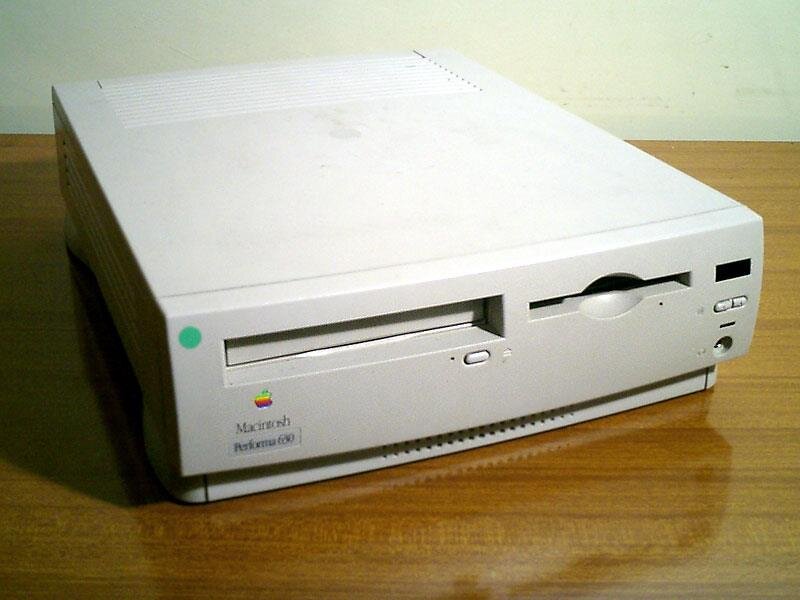

Macintosh LC 630

Producer: Apple - Category: Personal Computer

Personal computer, 1994, Apple. The Performa 630 and the LC 630 are the same machine with different names for the consumer and education markets, the first Macintosh with an IDE hard disk.

Years	July 1994 to July 1995
Manufacturer	Apple Computer Inc. (US)
Model	Macintosh LC 630 / Performa 630 (M3076)
Processor	Motorola 68LC040, 32 bit, 33 MHz
RAM	4 or 8 MB, expandable to 52 MB (80 ns)
ROM	1 MB
VRAM	1 MB
Built-in storage	CD-ROM (2x), 3.5" floppy disk drive, IDE hard disk (250 MB)

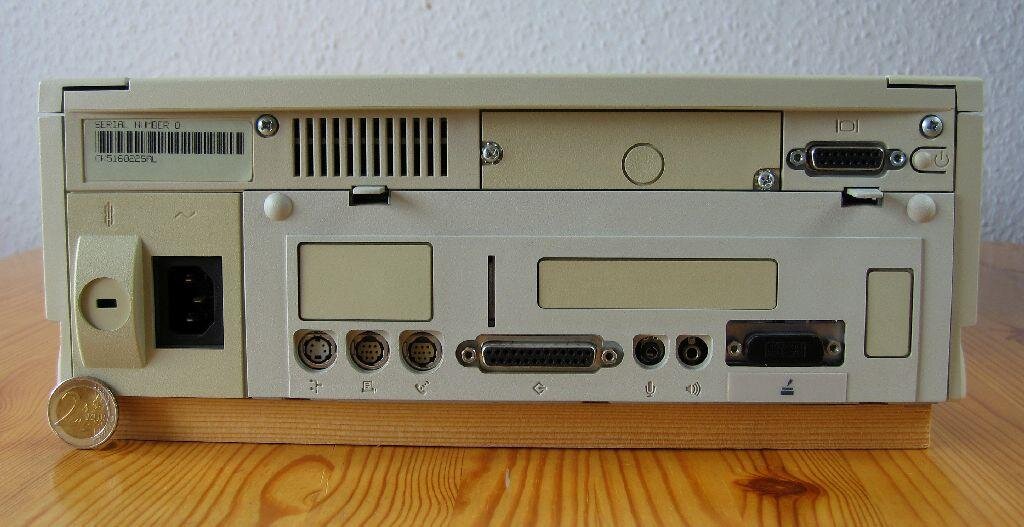

Interfaces	serial RS-422 (mini DIN) for LocalTalk printer and network, serial RS-422 (mini DIN) for modem, DB-25 SCSI, ADB (Apple Desktop Bus) for keyboard and mouse, audio input and output, DB-15 display connector
Expansion	3 internal slots
Operating system	Mac OS 7.5.1 to 8
Dimensions	109 (H) x 320 (W) x 419 (D) mm
Weight	8.6 kg (monitor M1212: 10.8 kg)
Power	45 W (colour display M1212: 55 W)
