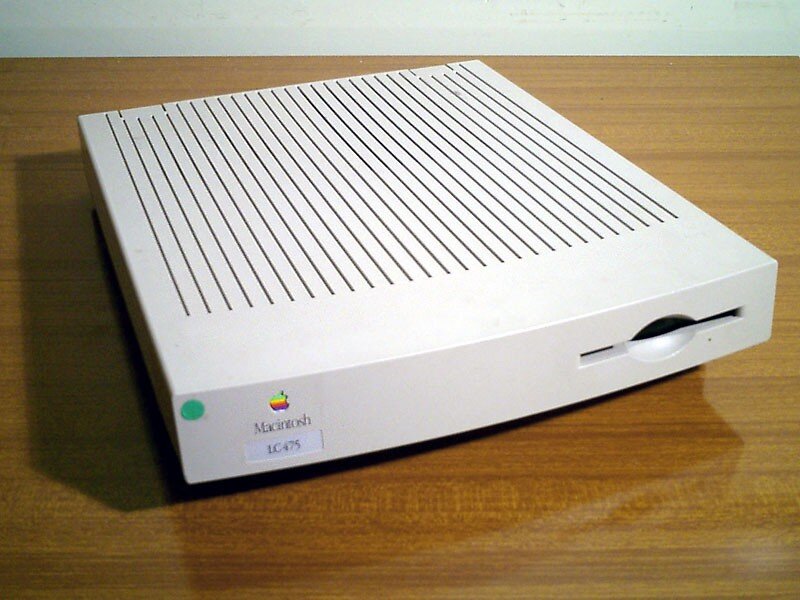

Macintosh LC 475
Personal computer, 1993, Apple. The Macintosh LC 475 (sold in Europe also as Performa 475) uses the 68LC040 processor in the LC III case.
| Years | October 1993 to May 1994 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Model | Macintosh LC 475 (M1476) |
| Processor | Motorola 68LC040, 32 bit, 25 MHz, 8 KB L1 cache |
| RAM | 4 or 8 MB, expandable to 132 MB (80 ns or faster) |
| ROM | 1 MB |
| VRAM | 512 KB, expandable to 1 MB |
| Built-in storage | 3.5" floppy disk drive (1.4 MB), hard disk (80/160/250 MB) |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus) for keyboard and mouse, audio, display connector, 2 x DIN-8 serial RS-232/RS-422 (modem and printer) |
| Display resolutions | 512 x 384 to 1152 x 870 |
| Expansion | 1 PDS (Processor Direct Slot) |
| Operating system | Mac OS 7.1 to 8.1 |
| Dimensions | 74 (H) x 310 (W) x 389 (D) mm |
| Weight | 4.0 kg |
| Price (1993) | $1,085 |
Documentation
- Macintosh LC 475 - LC 475 / Quadra 605 developer note
- Macintosh LC 475 - Macintosh memory guide
- Macintosh LC 475 - Service manual

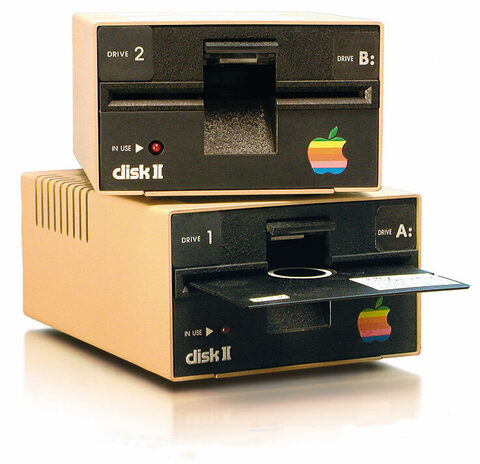

![Apple Floppy Drive Disk II for Apple ][](images/models/thumbs/95-1.jpg)

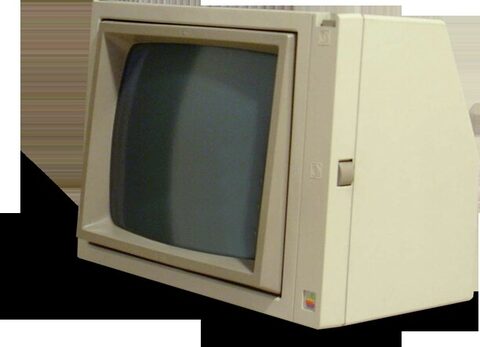

![Apple AM2010P Apple ][ Green Phosphor Monitor](images/models/thumbs/324-1.jpg)
