Macintosh Colour Classic

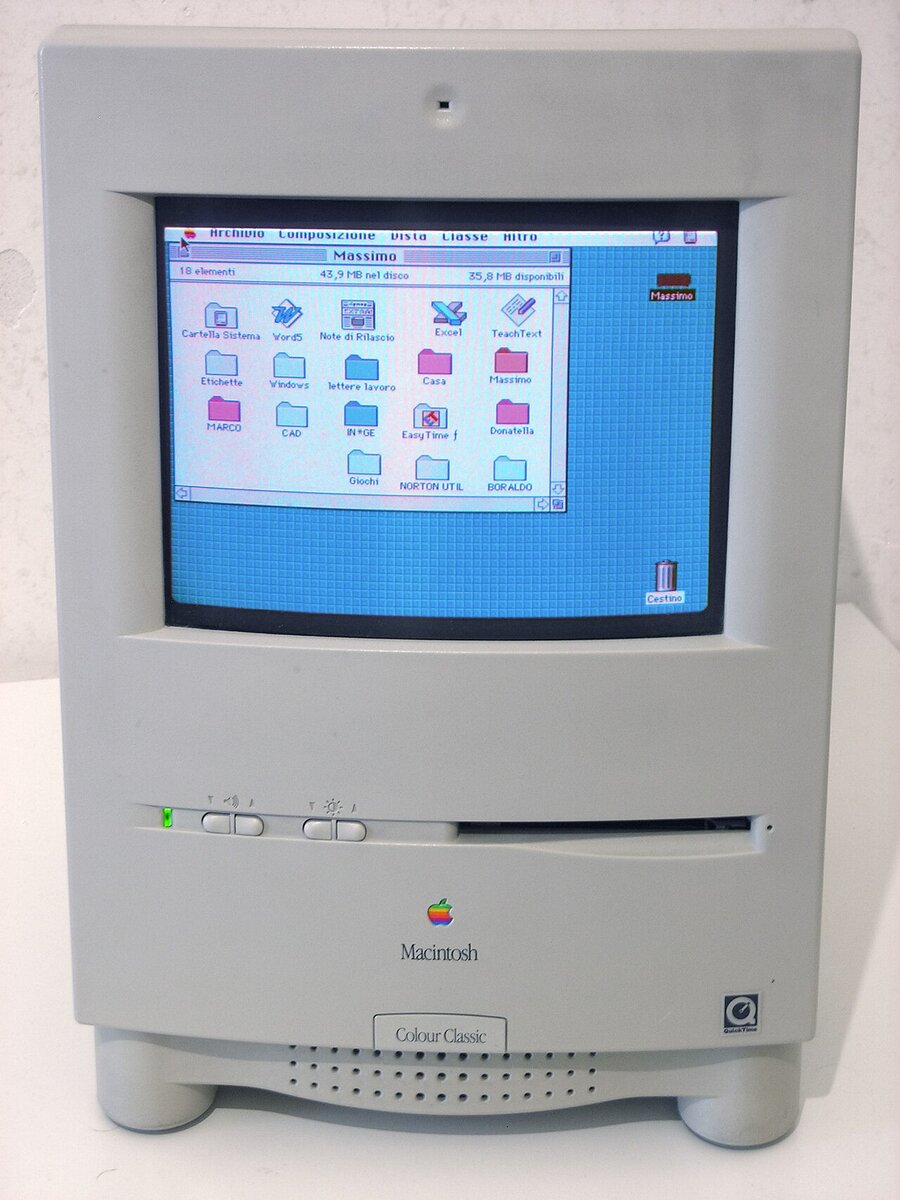

Photo 1: Mystère Martin, CC BY-SA 3.0, via Wikimedia Commons (Macintosh Colour Classic 1994 (retouched).jpg)
Personal computer, 1993, Apple. The Macintosh Color Classic is the only compact Macintosh with a built-in colour screen: a 10 inch Trinitron at 512 x 384 pixels in a redesigned case, with the electronics of the LC II and an LC processor direct slot.
| Years | February 1993 to May 1995 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68030, 32 bit, 16 MHz |
| RAM | 4 MB on board, expandable to 10 MB (100 ns 30-pin SIMM) |
| ROM | 1 MB |
| VRAM | 256 KB, expandable to 512 KB |
| Built-in storage | 3.5" SuperDrive (1.4 MB), hard disk (40/80/160 MB) |
| Display | built-in 10 inch Sony Trinitron, 512 x 384, up to thousands of colours with VRAM upgrade |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus), 2 x DIN-8 serial, audio input and output, microphone |
| Expansion | 1 LC processor direct slot |
| Operating system | System 7.1 to Mac OS 7.6.1 |
| Dimensions | 375 (H) x 250 (W) x 320 (D) mm |
| Weight | 10.2 kg |
| Price (1993) | US$1,389 |
Documentation
No documents available yet for this model. Browse the documentation section.
