Apple 2e

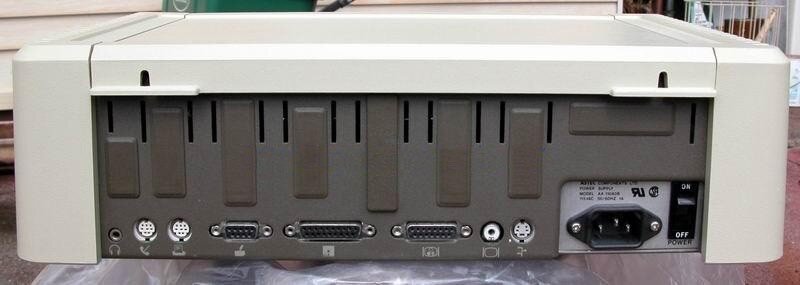

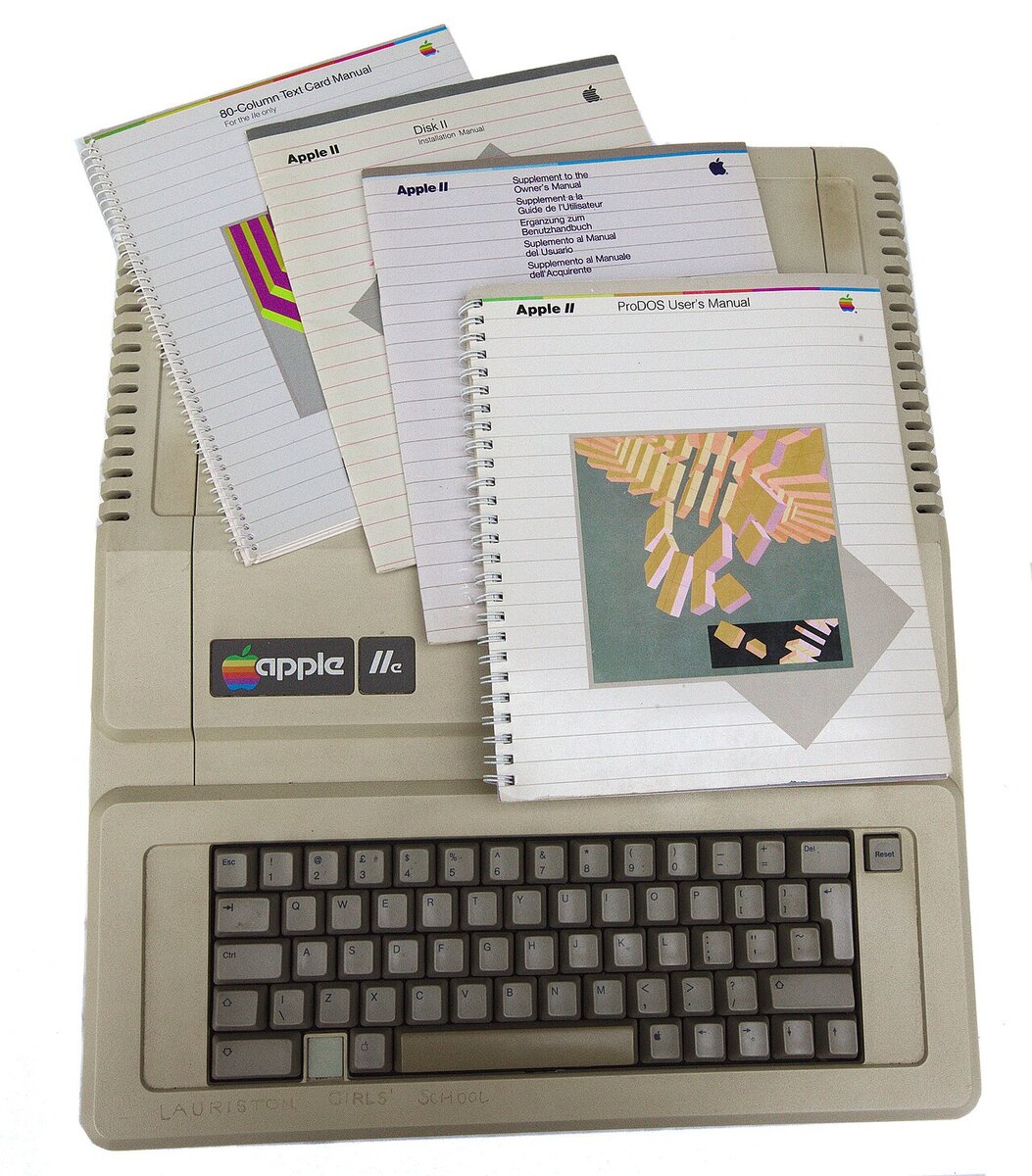

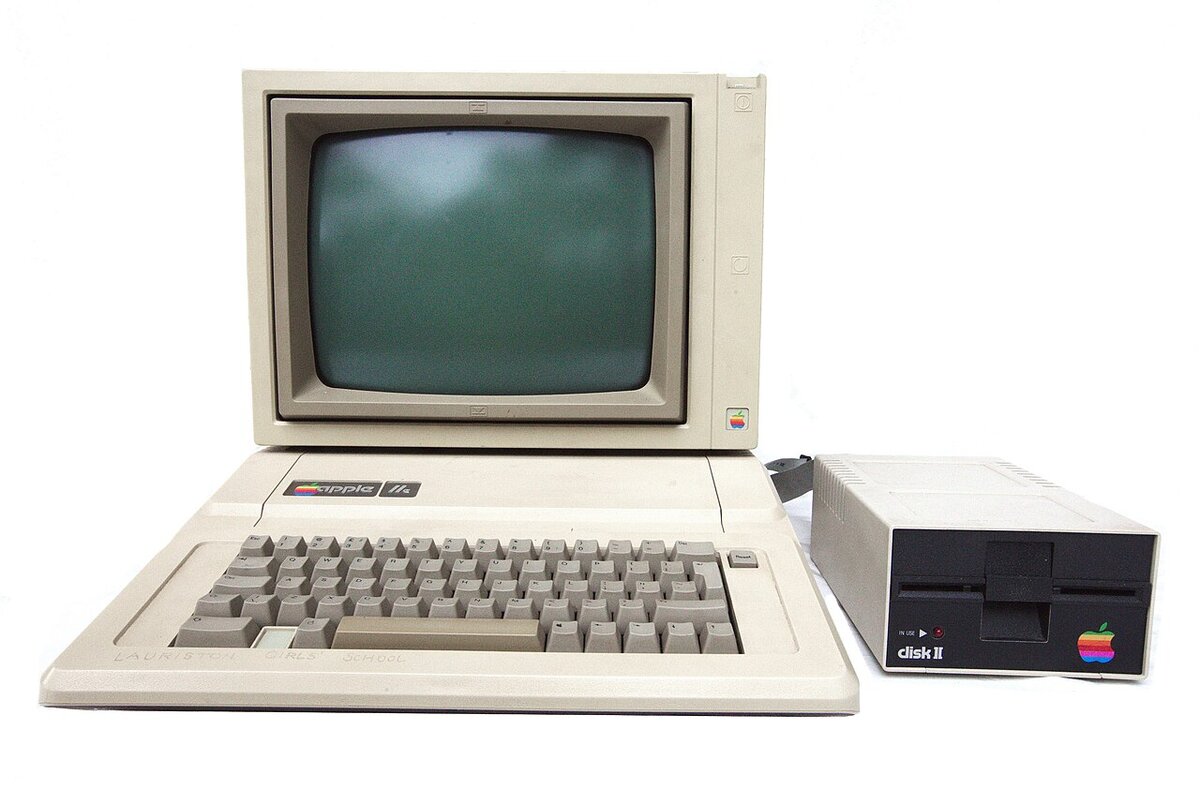

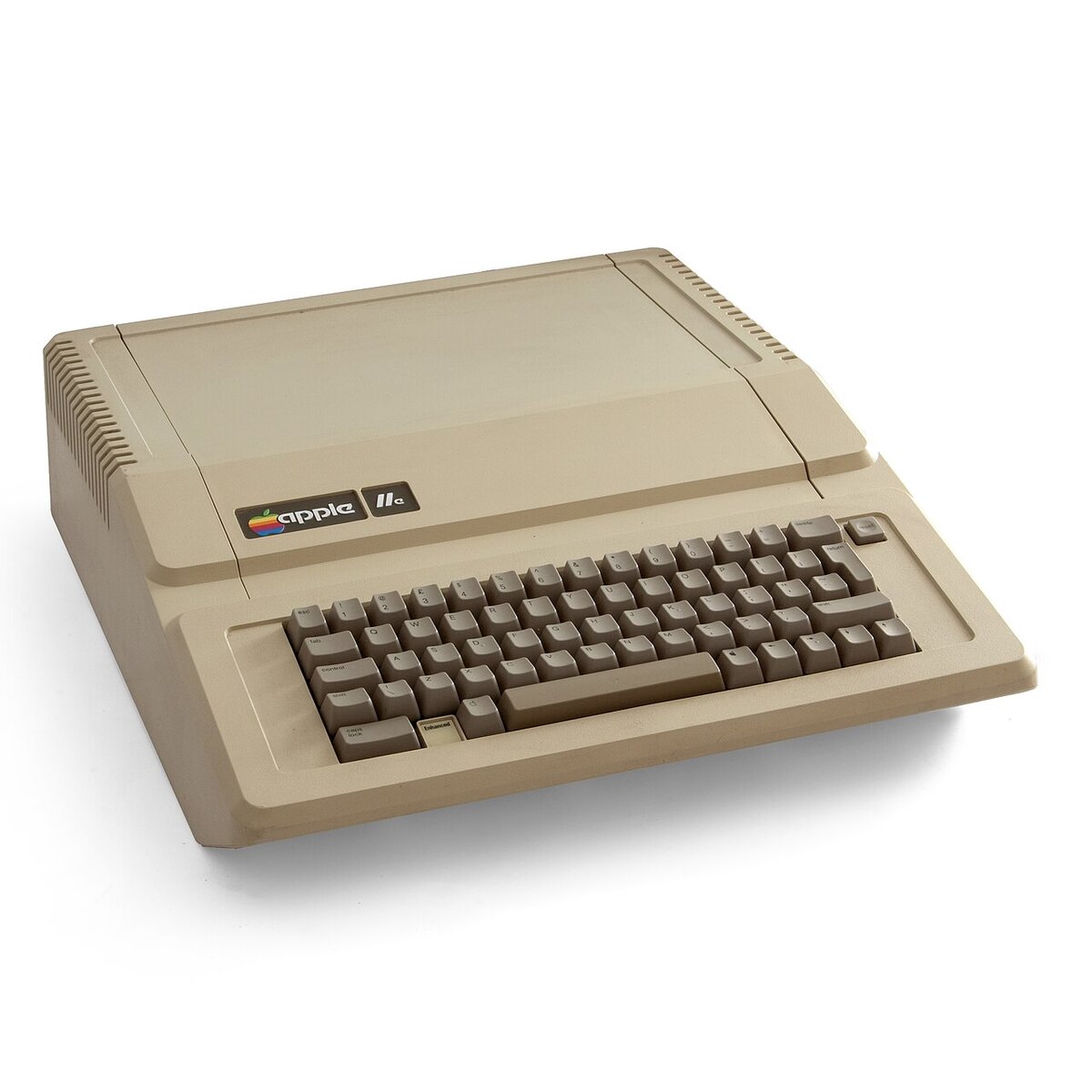

Photo 1: Bilby, CC BY 3.0, via Wikimedia Commons (Apple IIe.jpg) Photo 2: Pratyeka, CC BY-SA 4.0, via Wikimedia Commons (Iie-system.jpg) Photo 3: Apple2gs (English Wikipedia), public domain, via Wikimedia Commons (IIe to IIGS upgrade ports.jpg) Photo 4: Pratyeka, CC BY-SA 4.0, via Wikimedia Commons (Iie-with-manuals.jpg)
Personal computer, 1983, Apple. The Apple IIe ("enhanced") is the longest-lived Apple II: released in January 1983 with 64 KB of RAM, lower case and 80 column support built in, it stayed in production until 1993 and was the standard computer of American schools.
| Years | January 1983 to November 1993 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | MOS Technology 6502 at 1.023 MHz (65C02 in the Enhanced IIe from 1985) |
| RAM | 64 KB, expandable to 128 KB with the Extended 80-Column Card and beyond with third-party cards |
| ROM | 16 KB (Applesoft BASIC and monitor) |
| Graphics | 40 or 80 x 24 text with lower case, low resolution 40 x 48 in 16 colours, high resolution 280 x 192 in 6 colours, double high resolution 560 x 192 |
| Sound | 1 bit built-in speaker |
| Storage | Disk II or DuoDisk 5.25" floppy disk drives, UniDisk 3.5 |
| Expansion | 7 slots plus auxiliary slot |
| Operating system | Apple DOS 3.3, ProDOS |
| Price (1983) | US$1,395 for the main unit |
Documentation
No documents available yet for this model. Browse the documentation section.
