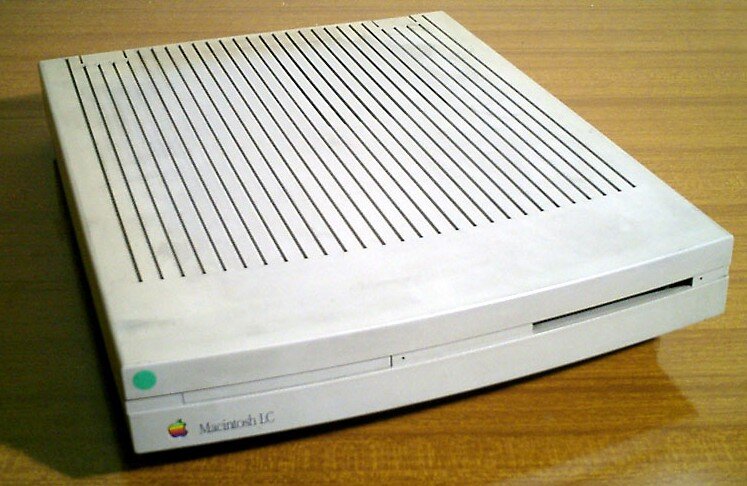

Macintosh LC
Personal computer, 1990, Apple. The Macintosh LC ("low cost", code name Elsie) was the first affordable colour Macintosh, in a slim "pizza box" case.
| Years | October 1990 to March 1993 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Model | Macintosh LC (M0350) |
| Processor | Motorola 68020, 32 bit, 15.667 MHz |
| RAM | 2 MB, expandable to 10 MB (100 ns or faster) |
| ROM | 512 KB |
| VRAM | 256 KB, expandable to 512 KB |
| Built-in storage | 3.5" floppy disk drive (1.4 MB), hard disk (40/80 MB) |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus) for keyboard and mouse, audio, DB-15 display connector, 2 x DIN-8 serial RS-232/RS-422 (modem and printer) |
| Expansion | 1 PDS (Processor Direct Slot) |
| Operating system | Mac OS 6.0.6 to 7.5.5 |
| Dimensions | 77 (H) x 310 (W) x 382 (D) mm |
| Weight | 4.0 kg |
| Power | 50 W max, without display |
| Price (1990) | $2,499 |
Documentation
- Macintosh LC - Macintosh manual (1984)
- Macintosh LC - Macintosh memory guide
- Macintosh LC - Service manual
