Olivetti M10 24k

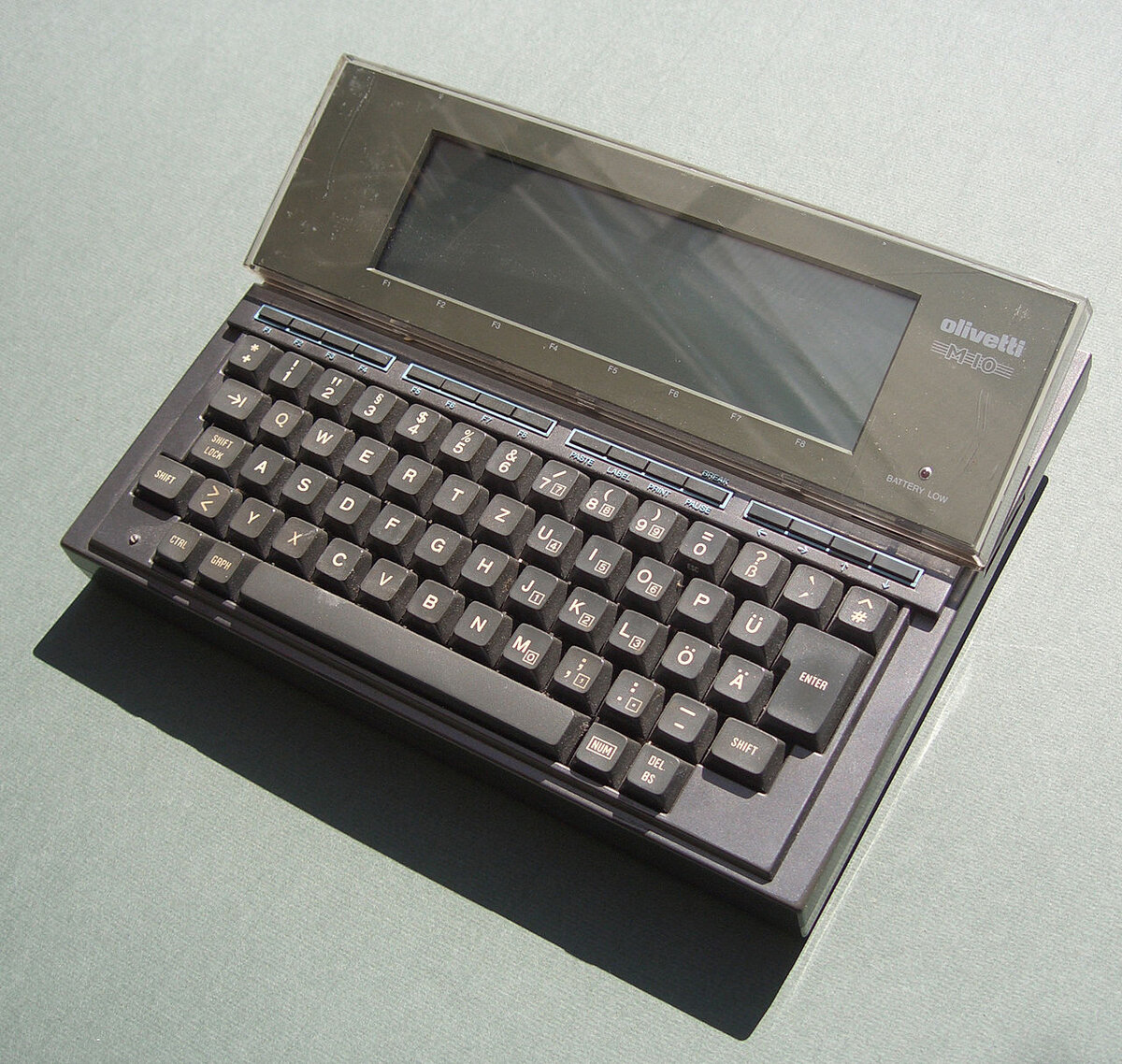

Photo 1: Nessun autore leggibile automaticamente. Christos Vittoratos presunto (secondo quanto affermano i diritti d'autore)., CC BY 2.5, via Wikimedia Commons (Sottsass05.JPG)
Portable computer, 1983, Olivetti. The M10 is Olivetti's version of the Kyocera-designed notebook also sold as the Tandy TRS-80 Model 100 and NEC PC-8201. It combines a full keyboard, a tilting 8-line LCD, Microsoft BASIC and built-in text, communication and diary programs in a machine that runs for about 20 hours on four AA batteries. This is the 24 KB version, which can be expanded to 32 KB with plug-in modules.
| Years | 1983 to 1986 |
|---|---|
| Processor | Intel 80C85 at 2.4 MHz |
| RAM | 24 KB, expandable to 32 KB |
| ROM | 32 KB with BASIC, TEXT, TELCOM, ADDRSS and SCHEDL |
| Display | LCD, 8 lines x 40 characters, 240 x 64 pixels, tilting |
| Storage | cassette recorder; optional external floppy drive |
| Ports | RS-232, parallel, cassette, bar-code reader, modem, expansion bus |
| Power | 4 AA batteries or adapter |
| Weight | about 1.7 kg |
Documentation
No documents available yet for this model. Browse the documentation section.
