Imsai 8080

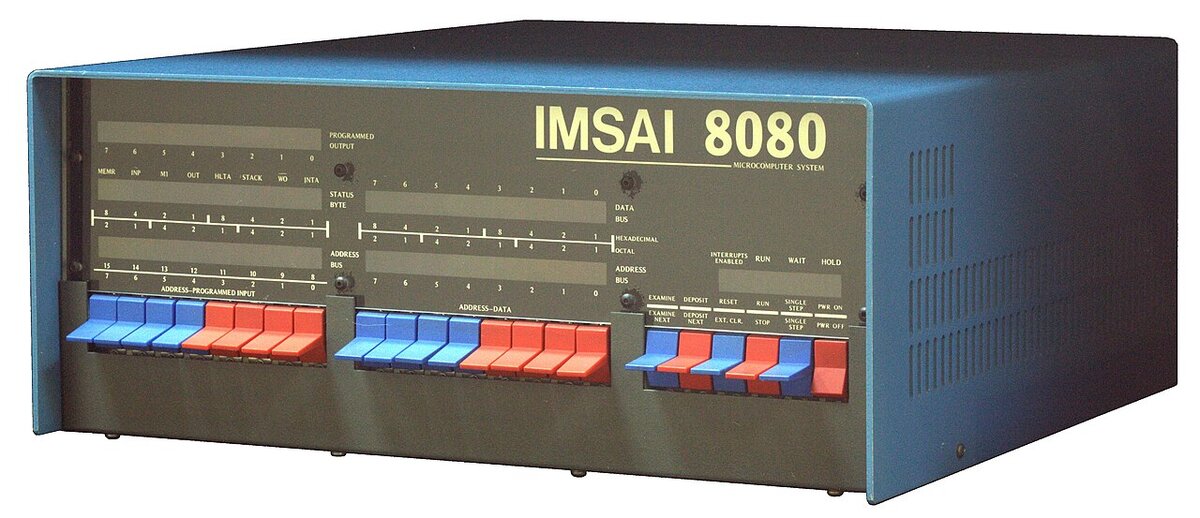

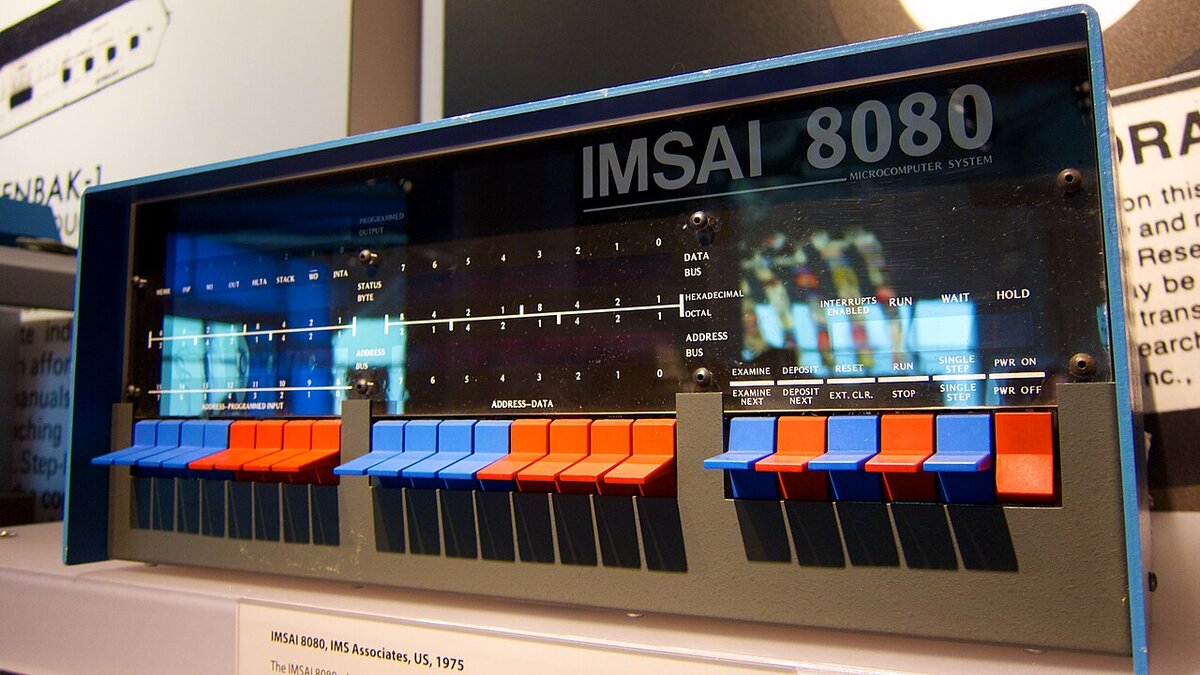

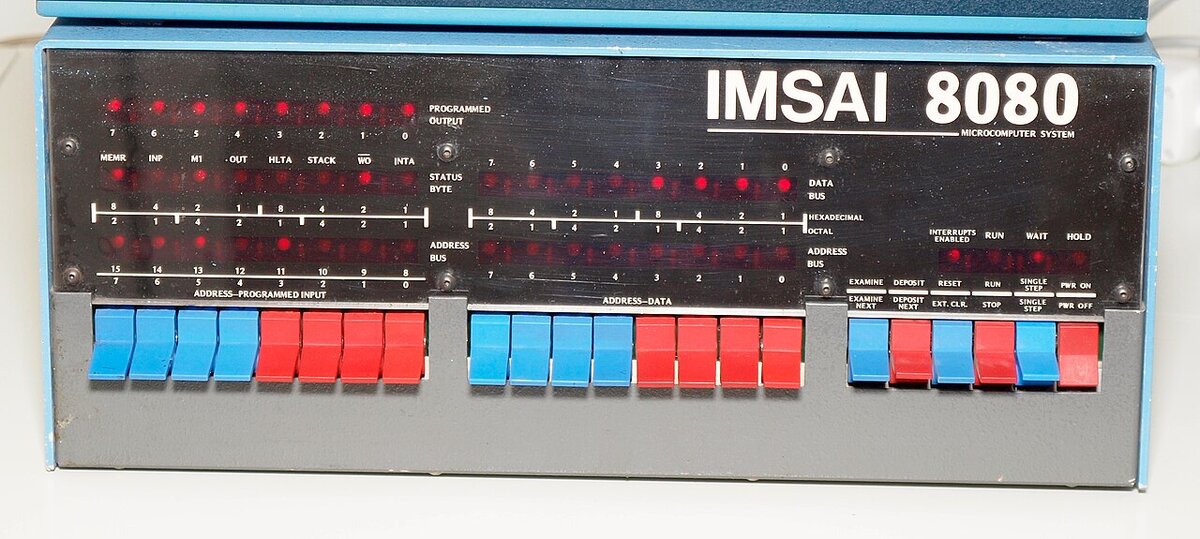

Photo 1: Morn, CC BY-SA 4.0, via Wikimedia Commons (IMSAI 8080, cropped.jpg) Photo 2: Morn, CC BY-SA 4.0, via Wikimedia Commons (IMSAI-8080--Museum-Enter-6095057, cropped.jpg) Photo 3: Don DeBold, CC BY 2.0, via Wikimedia Commons (IMSAI 8080 computer at the Computer History Museum.jpg)
Microcomputer, 1975, IMS Associates. The IMSAI 8080 was the first "clone" of the Altair 8800, built around the same Intel 8080 processor and the same S-100 bus but with a sturdier construction, a better power supply and a front panel of large paddle switches and LEDs for entering programs and reading memory. It was sold as a kit or assembled, and between 17,000 and 20,000 units were made; the machine is familiar from the film WarGames. IMSAI was also the first customer of Digital Research's CP/M.
| Years | 1975 to 1978 |
|---|---|
| Processor | Intel 8080 at 2 MHz |
| RAM | 256 bytes on the basic board, up to 64 KB on S-100 cards |
| Front panel | address and data switches, LEDs |
| Storage | cassette, 5.25" or 8" floppy drives on S-100 controllers |
| Operating system | CP/M, IMDOS |
| Bus | S-100, 22 slots |
| Price (1975) | US$439 as a kit |
Documentation
No documents available yet for this model. Browse the documentation section.
