Olivetti M15 portable

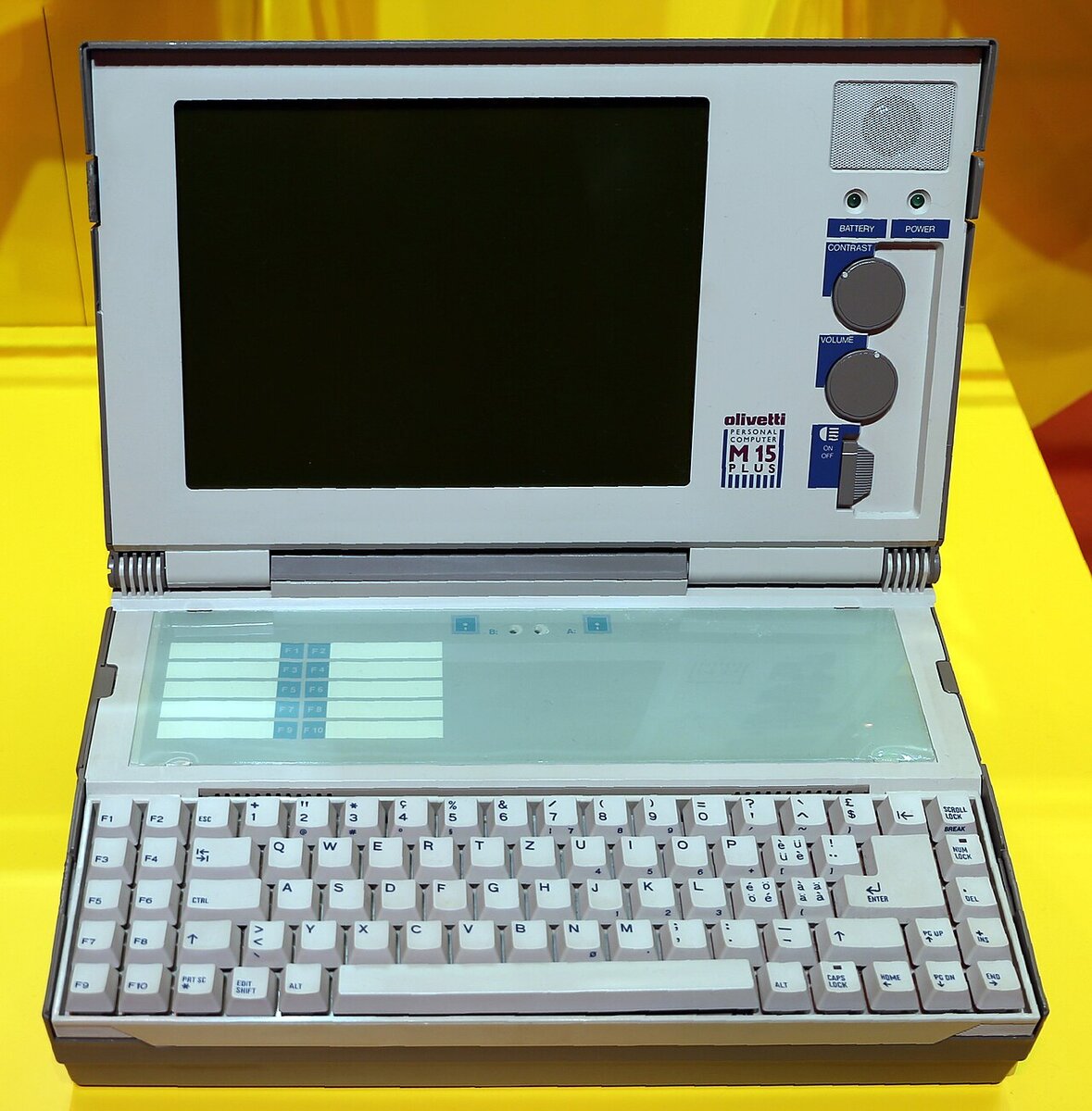

Photo 1: Sailko, CC BY 3.0, via Wikimedia Commons (Olivetti, primo computer portatile M15, 1987 (fond. natale cappellaro).jpg)
Portable computer, 1987, Olivetti. The M15 was Olivetti's first laptop: an IBM compatible with an 80C88 processor, two 3.5" floppy drives and a 10.5" LCD showing 80 x 25 text and CGA graphics, in a case with a carrying handle and a rechargeable battery pack. It was designed by Michele De Lucchi and sold with MS-DOS 3.2, and its shape, with the screen sliding up and the drives on the side, is typical of the period before the clamshell laptop became standard.
| Years | 1987 to 1989 |
|---|---|
| Processor | Intel 80C88 at 4.77 MHz |
| RAM | 512 KB |
| Display | 10.5" LCD, 640 x 200, CGA compatible, no backlight |
| Storage | 2 x 3.5" floppy drives of 720 KB |
| Operating system | MS-DOS 3.2 |
| Ports | RS-232, parallel, external monitor, expansion |
| Power | battery pack or mains adapter |
| Weight | about 5.5 kg |
| Design | Michele De Lucchi |
