Olivetti M20 BC

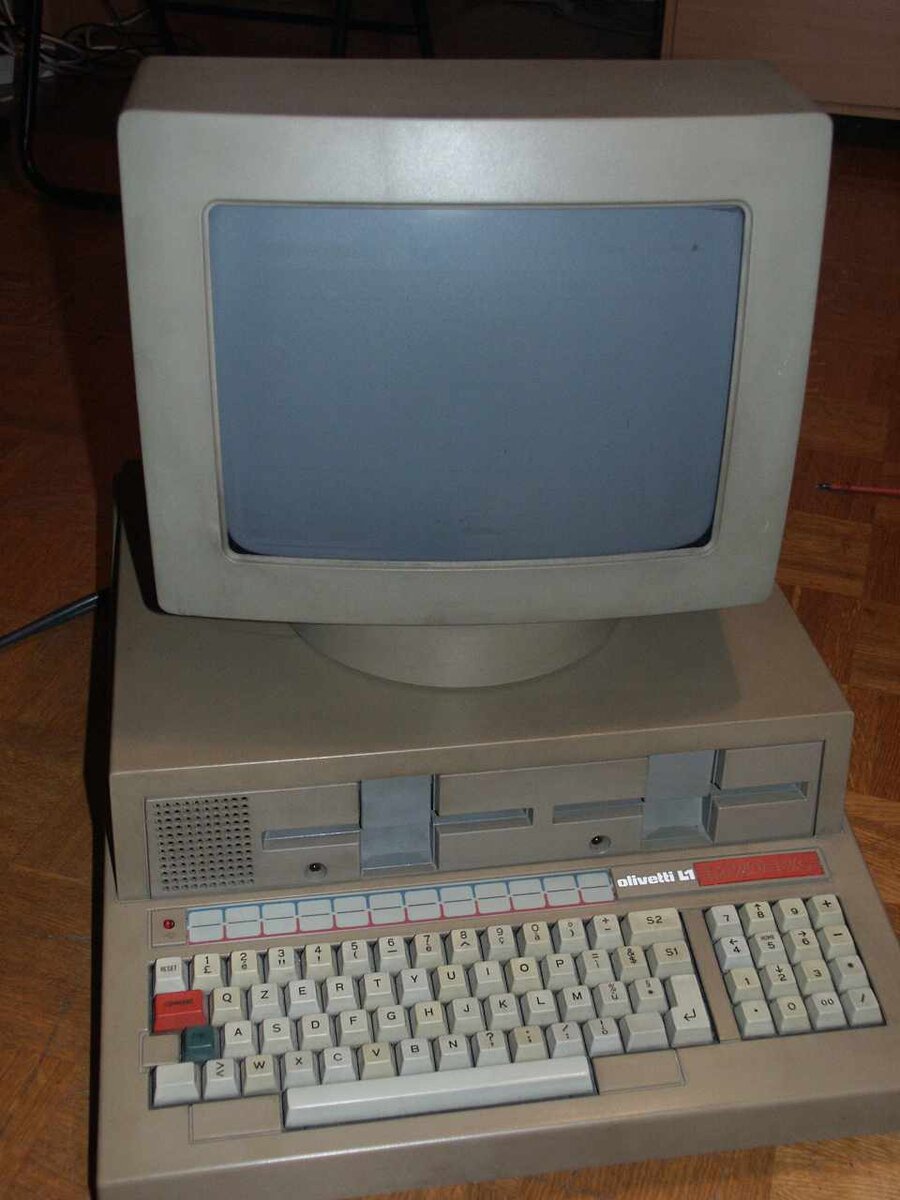

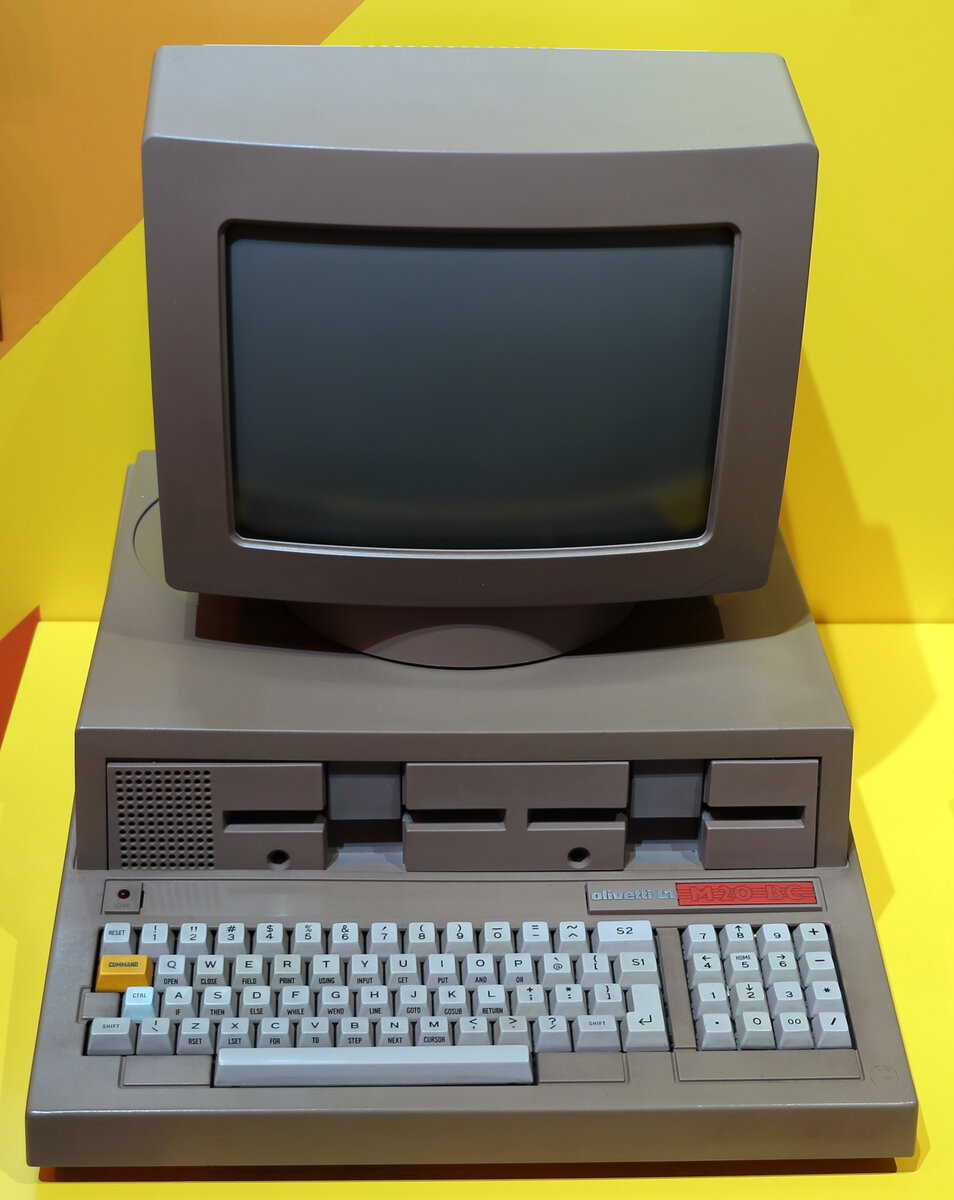

Photo 1: Sailko, CC BY 3.0, via Wikimedia Commons (Olivetti, personal computer desktop M20, 1982 (fond. natale cappellaro).jpg) Photo 2: DarwinNE, CC BY-SA 3.0, via Wikimedia Commons (PC Olivetti M20 - Front.jpg)
Personal computer, 1982, Olivetti. The M20 BC is the business configuration of the M20, the Z8001-based personal computer designed at Olivetti's Advanced Technology Center in Cupertino and styled by Ettore Sottsass. The hardware is that of the M20 line: a 16-bit processor with its own operating system PCOS, a bitmapped 512 x 256 display and two 5.25" floppy drives, in the same wedge-shaped case with a separate keyboard and a monitor on an adjustable arm. The line was replaced in 1984 by the IBM-compatible M24.
| Years | 1982 to 1984 |
|---|---|
| Processor | Zilog Z8001 at 4 MHz |
| RAM | 128 KB, expandable to 512 KB |
| Graphics | 512 x 256 monochrome, colour version with 480 x 256 in 8 colours |
| Storage | 2 x 5.25" floppy drives of 320 KB |
| Operating system | PCOS with BASIC 8000 |
| Ports | RS-232, parallel, expansion bus |
Documentation
- Basic Language Reference Manual Olivetti M 20
- Basic PCOS Pocket Reference Manual Olivetti M 20
- Disk Image Digital Research CPM 8000 1.1 (5.25) for Olivetti M20
