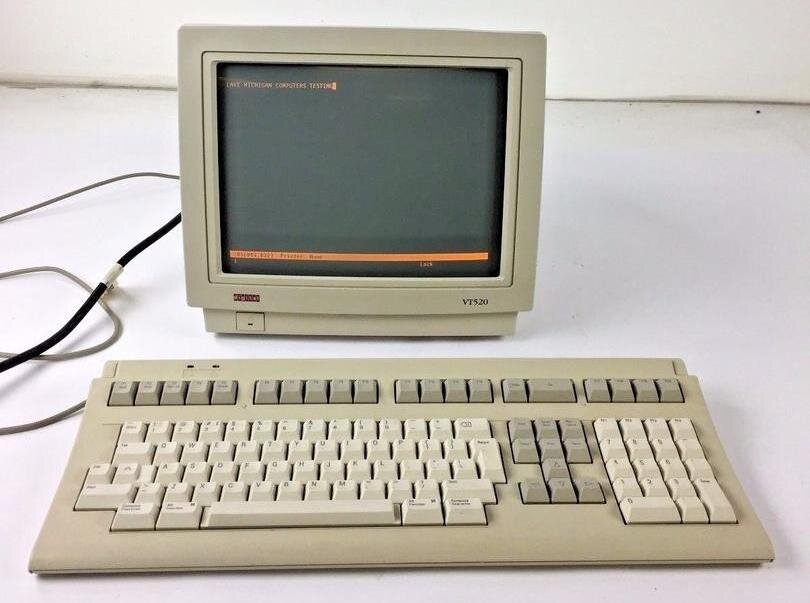

Digital VT 510 Terminal
Alphanumeric video terminal, 1993, Digital Equipment Corporation. The VT510 and VT520 are the last generation of DEC text terminals, later produced by Boundless Technologies.
| Year | 1993 |
|---|---|
| Manufacturer | Digital Equipment Corporation (1993-1996), Boundless Technologies (1996-2010) |
| Model | VT510 / VT520 |
| Text modes | 80 x 26, 80 x 42, 80 x 53, 132 x 26, 132 x 42, 132 x 53 |
| Scan frequency | 60 Hz (10 x 16 font), 72 Hz (13 x 10 font) |
| Display | 14 inch, 800 x 432 pixels, 88 DPI |

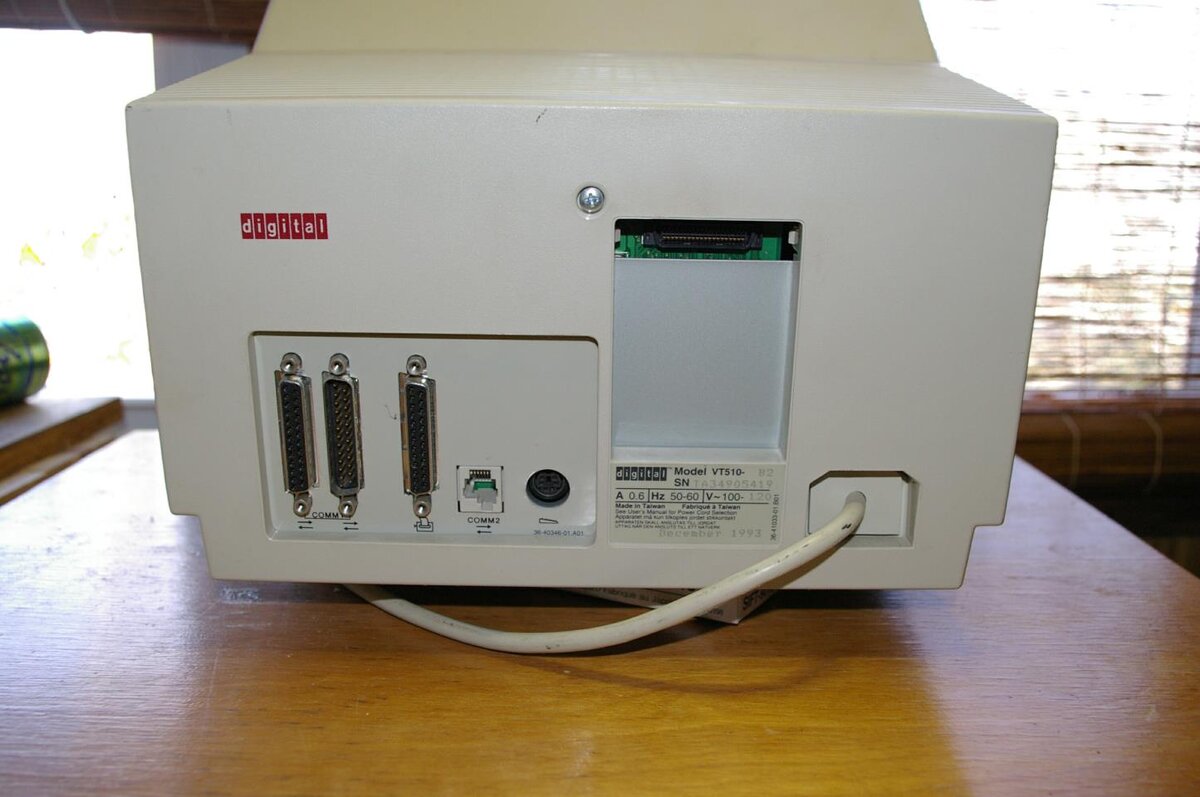

| Interfaces | VT510 EIA-RS232 / DEC-423; VT520 DEC-423 for a second session and for a printer |
| Weight | 7.9 kg |
| Power | 40 W |
Documentation
- Digital VT 510 Terminal - Installation guide
- Digital VT 510 Terminal - Installation guide
- Digital VT 510 Terminal - User's guide
- Digital VT 510 Terminal - VT510 programmer information
- Digital VT 510 Terminal - VT520 programmer information
