Amiga 600

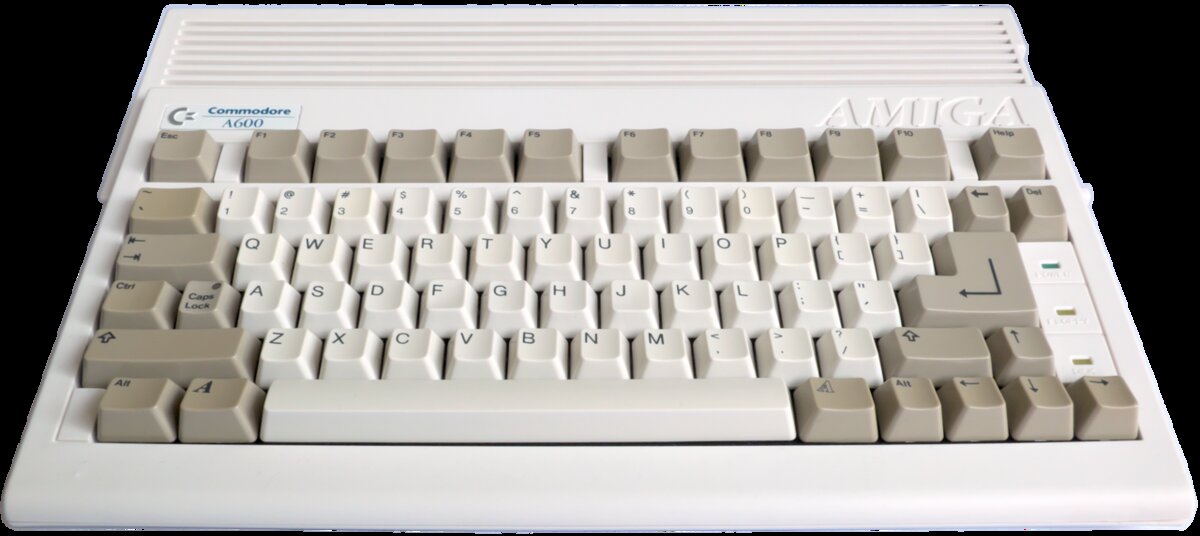

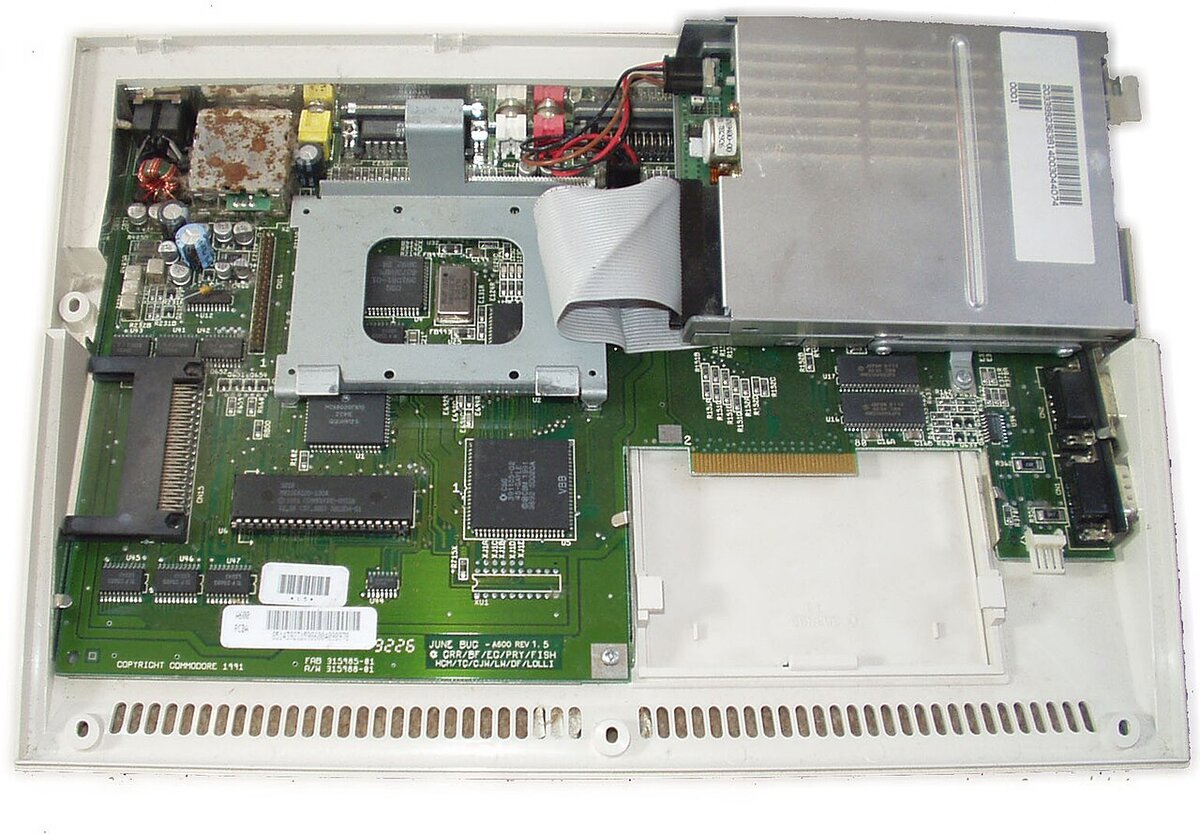

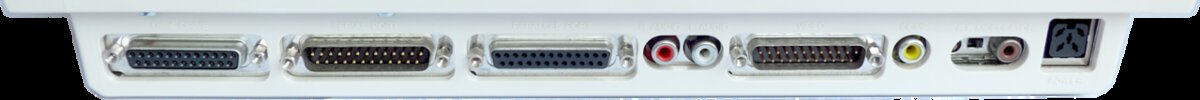

Photo 1: Ajne01, CC BY-SA 4.0, via Wikimedia Commons (Commodore Amiga 600 top.png) Photo 2: Ajne01, CC BY-SA 4.0, via Wikimedia Commons (Commodore Amiga 600 back (cropped).png) Photo 3: AlexJ, public domain, via Wikimedia Commons (A600 caseremoved.jpg)
Home computer, 1992, Commodore. The Amiga 600 is the smallest Amiga: a cost-reduced redesign of the Amiga 500 Plus without numeric keypad, with a PCMCIA slot and an optional internal 2.5" IDE hard disk, introduced in March 1992 as the last 68000 based Amiga.
| Years | March 1992 to 1993 |
|---|---|
| Manufacturer | Commodore International |
| Processor | Motorola 68000 at 7.09 MHz (PAL) or 7.16 MHz (NTSC) |
| RAM | 1 MB chip RAM, expandable to 2 MB with the A601 trapdoor expansion, plus PCMCIA memory cards (up to 4 MB) |
| ROM | 512 KB Kickstart 2.05 |
| Graphics | Enhanced Chip Set (ECS), up to 1280 x 512 in 4 colours, 32 colours from 4096, HAM |
| Sound | Paula, 4 channels of 8 bit PCM in stereo |
| Built-in storage | 3.5" floppy disk drive (880 KB), optional 2.5" IDE hard disk |
| Ports | 2 mouse/joystick, serial, parallel, external floppy, RGB video, composite video, RF modulator, PCMCIA type II, trapdoor expansion, stereo audio |
| Operating system | AmigaOS 2.05 |
| Dimensions | 350 (W) x 240 (D) x 75 (H) mm |
| Weight | about 2.7 kg |
| Price (1992) | 399 pounds |
Documentation
No documents available yet for this model. Browse the documentation section.
