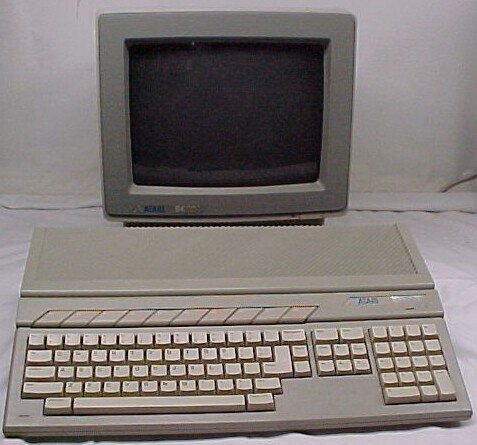

Atari 1040 ST
Home computer, 1987, Atari. The 1040STF is the 1 MB version of the Atari ST with a built-in floppy disk drive and power supply.
| Year | 1987 |
|---|---|
| Manufacturer | Atari Corporation (US) |
| Model | 1040STF |
| Processor | Motorola 68000 at 8 MHz |
| RAM | 1024 KB, expandable to 4 MB |
| ROM | 192 KB (operating system) |
| Built-in storage | 3.5" floppy disk drive |
| External peripherals | 3.5" floppy disk drive, hard disk |
| Video interface | monochrome or colour monitor |
| Interfaces | RS-232C, Centronics, MIDI |
| Operating system | Atari TOS with GEM; OS-9 also available |
| Price | $1,000 |
Documentation
- Atari 1040 ST - ACSI port pinouts
- Atari 1040 ST - Atari mouse manual
- Atari 1040 ST - Manual
- Atari 1040 ST - Service manual
- Atari 1040 ST - User's guide
