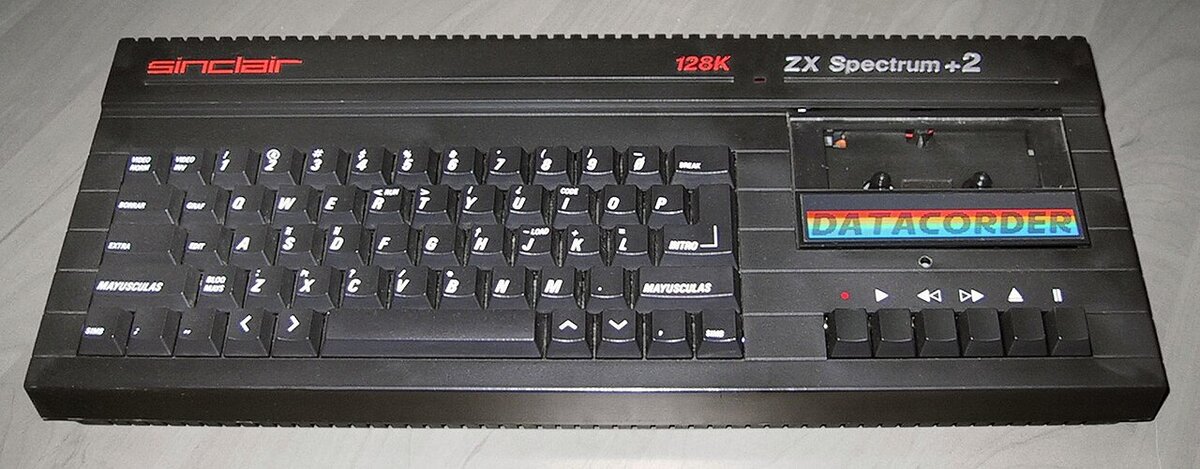

ZX Spectrum +2A
Home computer, 1987, Amstrad. The ZX Spectrum +2A is the black version of the +2 introduced in 1987, built on the electronics of the +3 disk model but with a built-in cassette recorder instead of the 3" drive. The changes to the memory map and the ROM (which includes the +3 BASIC editor) broke compatibility with a few older programs and peripherals, but the machine was cheap, robust and remained in production until the end of the Spectrum in 1992.
| Years | 1987 to 1992 |
|---|---|
| Processor | Zilog Z80A at 3.5 MHz |
| RAM | 128 KB, bank-switched |
| ROM | 64 KB with +3 BASIC, 128 BASIC and 48 BASIC |
| Graphics | ULA, 256 x 192, 15 colours in 8 x 8 attribute blocks |
| Sound | AY-3-8912, 3 voices, plus beeper |
| Storage | built-in cassette recorder; external 3" disk drive port |
| Ports | expansion, 2 joystick, RS-232, Centronics printer, disk drive, MIDI, RGB and RF video |
| Price (1987) | £139 |
Documentation
No documents available yet for this model. Browse the documentation section.
