Spectravideo SV 318

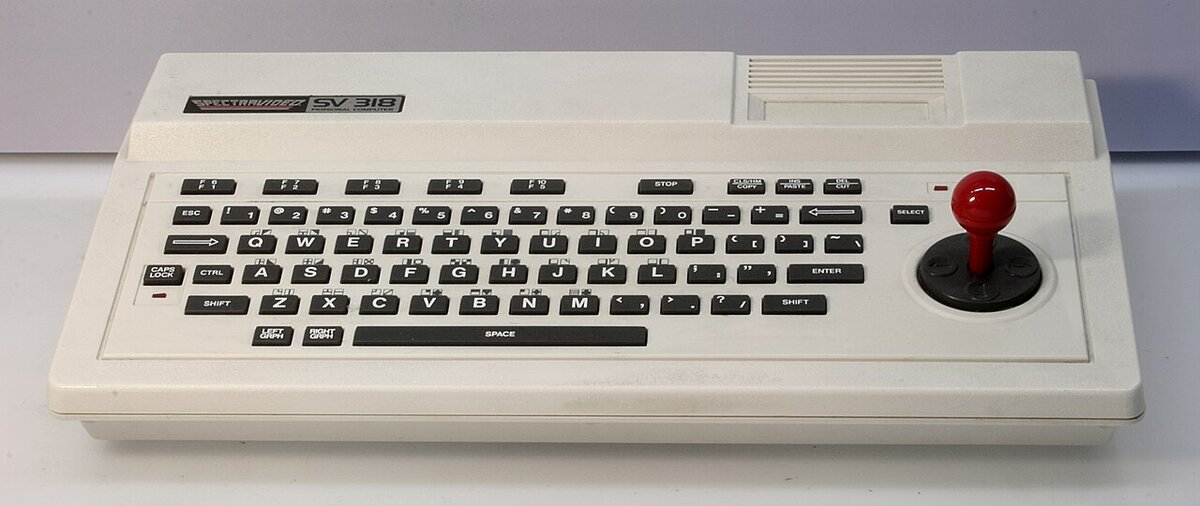

Photo 1: Igor Clukas, CC BY 2.5, via Wikimedia Commons (Spectravideo SVI318.jpg)
Home computer, 1983, Spectravideo. The SV-318 was Spectravideo's first computer, designed in Hong Kong around the same combination of Z80, TMS9918 video chip and AY-3-8910 sound chip that Microsoft was standardising as MSX; the machine was in fact the model for the MSX specification and is almost, but not completely, compatible with it. It has a rubber chiclet keyboard with a small built-in joystick in place of cursor keys, 16 KB of RAM plus 16 KB of video memory, and a cartridge slot; the SV-328 with a full keyboard and 64 KB followed shortly.
| Years | 1983 to 1984 |
|---|---|
| Processor | Zilog Z80A at 3.58 MHz |
| RAM | 16 KB plus 16 KB video RAM, expandable |
| ROM | 32 KB with Microsoft Extended BASIC |
| Graphics | TMS9918A, 256 x 192, 16 colours, 32 sprites |
| Sound | AY-3-8910, 3 voices |
| Storage | cassette; floppy drives through the expander |
| Ports | cartridge, 2 joystick, cassette, expansion, RF and composite video |
| Price (1983) | US$299 |
Documentation
No documents available yet for this model. Browse the documentation section.
