Macintosh Quadra 610

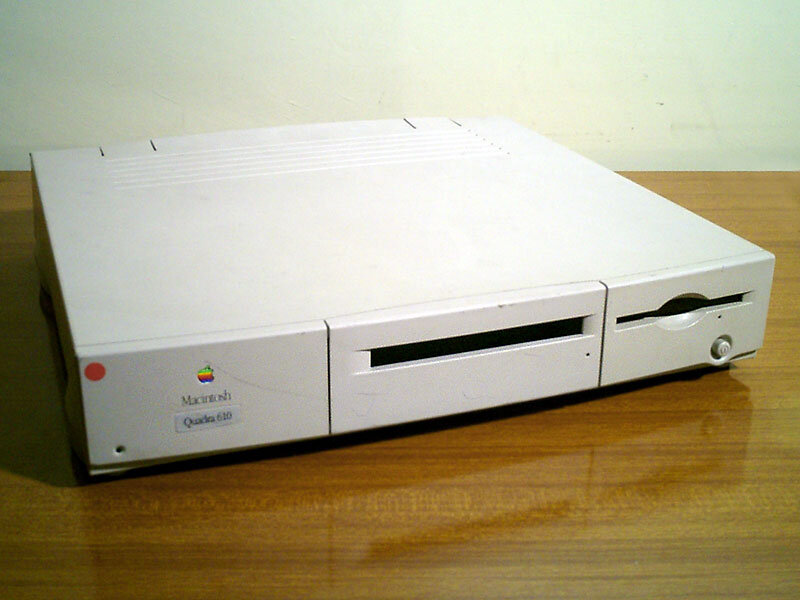

Photo 1: CC BY-SA 3.0, via Wikimedia Commons (Macintosh Quadra 610.jpg)
Personal computer, 1993, Apple. The Macintosh Quadra 610 (first sold as Centris 610) is the slim "pizza box" 68040 Macintosh that replaced the IIsi, with a 20 or 25 MHz processor, built-in video and one NuBus slot through an adapter; a version with a DOS compatibility card was also sold.
| Years | February 1993 to July 1994 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68LC040 at 20 MHz (Centris) or 68040 at 25 MHz (Quadra) |
| RAM | 4 or 8 MB, expandable to 68 MB (80 ns 72-pin SIMM) |
| ROM | 1 MB |
| VRAM | 512 KB, expandable to 1 MB |
| Built-in storage | 3.5" SuperDrive (1.4 MB), hard disk (80 to 230 MB), optional CD-ROM drive |
| Interfaces | DB-25 SCSI, ADB (Apple Desktop Bus), 2 x DIN-8 serial, DB-15 video, Ethernet (AAUI), audio input and output |
| Expansion | 1 processor direct slot, usable as NuBus slot with adapter |
| Operating system | System 7.1 to Mac OS 8.1 |
| Dimensions | 85 (H) x 415 (W) x 397 (D) mm |
| Weight | 6.4 kg |
Documentation
No documents available yet for this model. Browse the documentation section.
