Olivetti M15 Plus portable

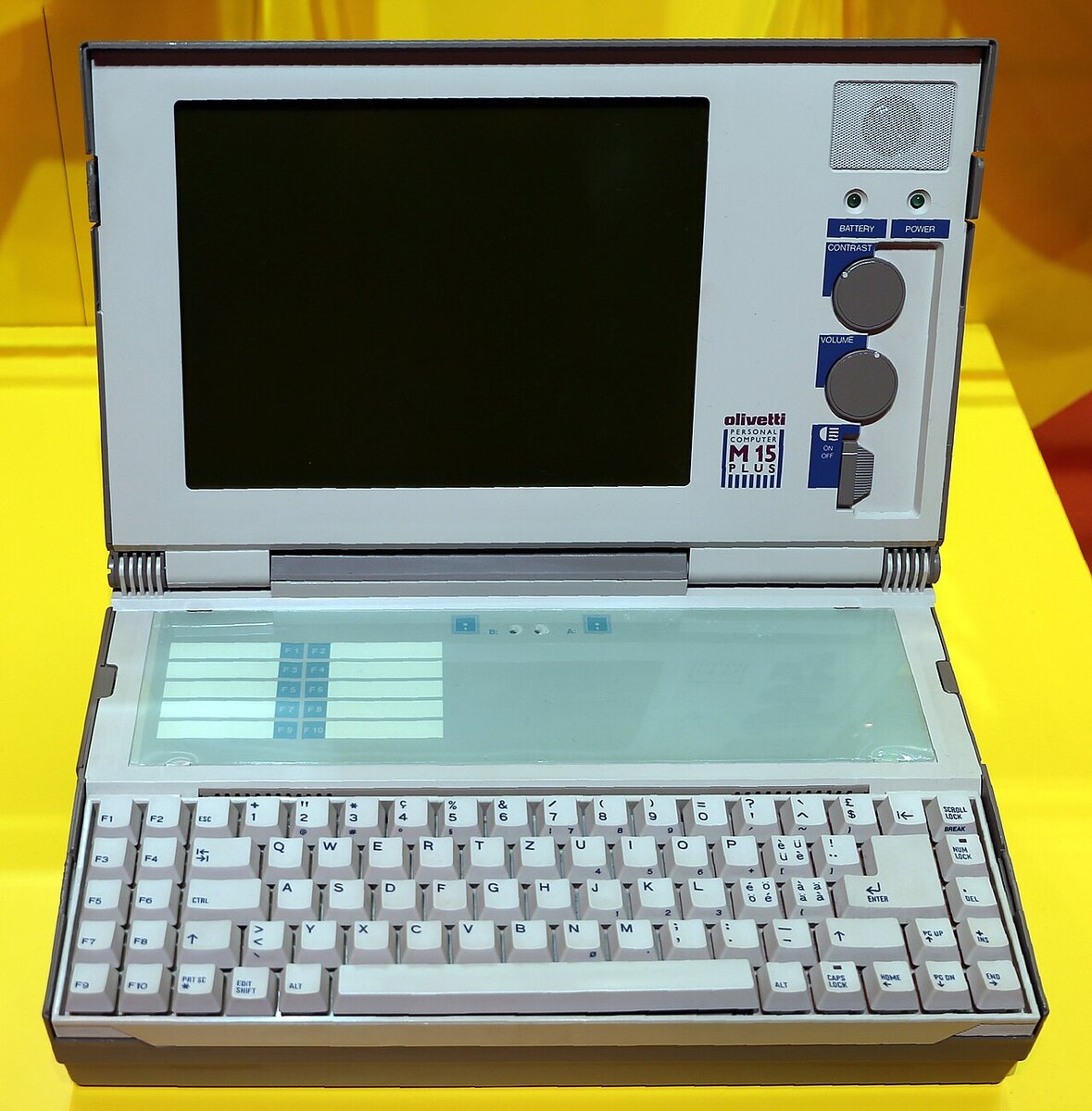

Photo 1: Sailko, CC BY 3.0, via Wikimedia Commons (Olivetti, primo computer portatile M15, 1987 (fond. natale cappellaro).jpg)
Portable computer, 1987, Olivetti. The M15 Plus is the improved version of Olivetti's first laptop, with a backlit LCD that made the screen readable indoors and a configuration with one floppy drive and a 20 MB hard disk in place of the second drive. The rest of the machine is the same as the M15: an 80C88 processor with 512 KB of RAM, MS-DOS 3.2 and the case designed by Michele De Lucchi.
| Years | 1987 to 1989 |
|---|---|
| Processor | Intel 80C88 at 4.77 MHz |
| RAM | 512 KB |
| Display | 10.5" backlit LCD, 640 x 200, CGA compatible |
| Storage | 1 x 3.5" floppy drive of 720 KB and 20 MB hard disk, or 2 floppy drives |
| Operating system | MS-DOS 3.2 |
| Ports | RS-232, parallel, external monitor, expansion |
| Power | battery pack or mains adapter |
| Design | Michele De Lucchi |
Documentation
No documents available yet for this model. Browse the documentation section.
