Atari Stacy 2

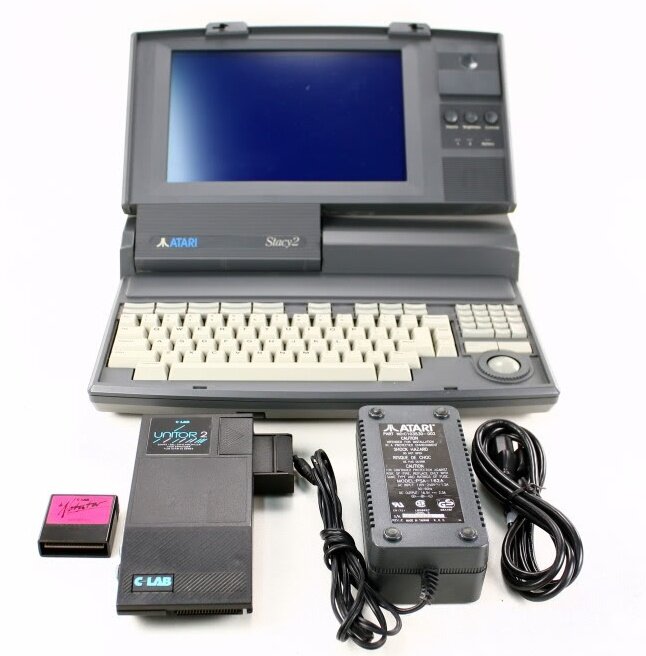

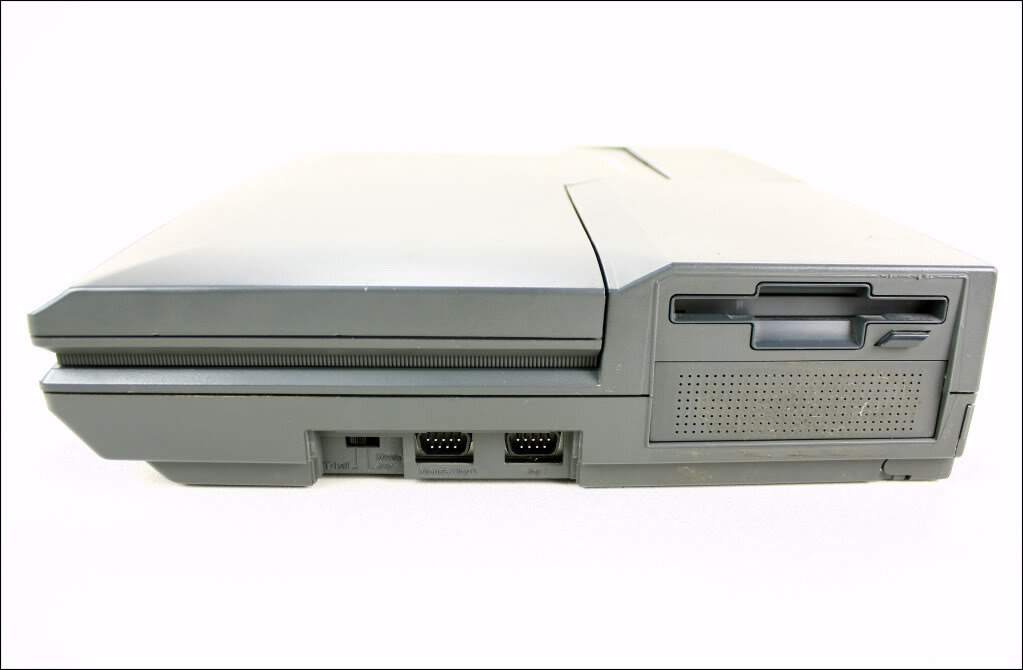

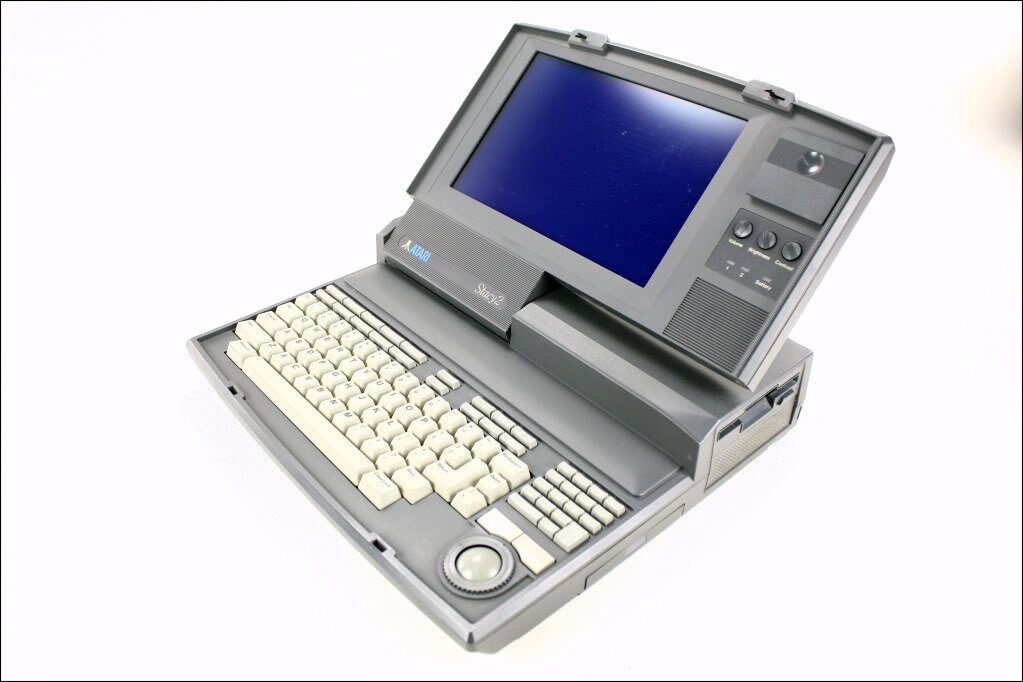

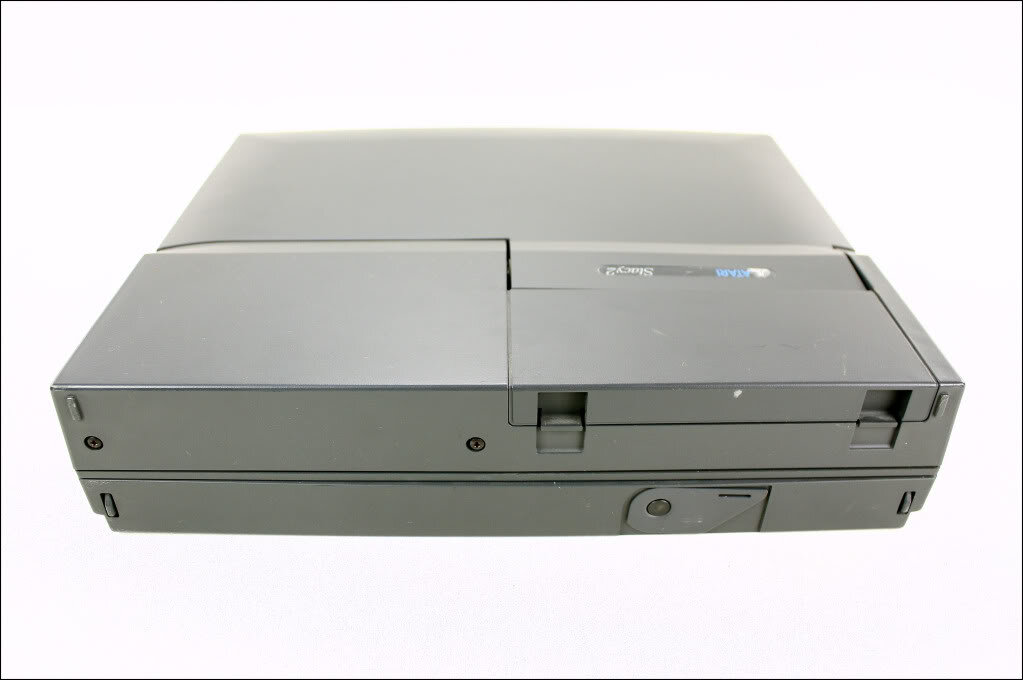

Photo 1: perfect circuit audio - http://www.perfectcircuitaudio.com/, CC BY 3.0, via Wikimedia Commons (Atari-stacy-002.jpg) Photo 2: perfect circuit audio - http://www.perfectcircuitaudio.com/, CC BY 3.0, via Wikimedia Commons (Atari-stacy-001.jpg) Photo 3: perfect circuit audio - https://www.perfectcircuitaudio.com/, CC BY 3.0, via Wikimedia Commons (Atari-stacy-004.jpg) Photo 4: perfect circuit audio - http://www.perfectcircuitaudio.com/, CC BY 3.0, via Wikimedia Commons (Atari-stacy-007.jpg)
Portable computer, 1989, Atari. The STacy is the portable version of the Atari ST, a heavy laptop with a 10" monochrome LCD showing the 640 x 400 high-resolution mode, a full keyboard with the built-in trackball, a 3.5" floppy drive and an optional internal SCSI hard disk. It was aimed at musicians, who could take their MIDI sequencer on stage. Battery life was very short, so most units were used on mains power. The STacy 2 is the model with 2 MB of RAM and a 20 MB hard disk.
| Years | 1989 to 1991 |
|---|---|
| Processor | Motorola 68HC000 at 8 MHz |
| RAM | 2 MB (1 to 4 MB across the range) |
| ROM | TOS 1.04 |
| Display | 10" backlit passive LCD, 640 x 400 monochrome; external monitor output |
| Sound | Yamaha YM2149, 3 voices |
| Storage | 3.5" 720 KB floppy drive, 20 MB SCSI hard disk |
| Ports | MIDI, ACSI, SCSI, printer, RS-232, monitor, cartridge, 2 mouse/joystick |
| Weight | about 7 kg |
Documentation
No documents available yet for this model. Browse the documentation section.
