Olivetti M20 ST

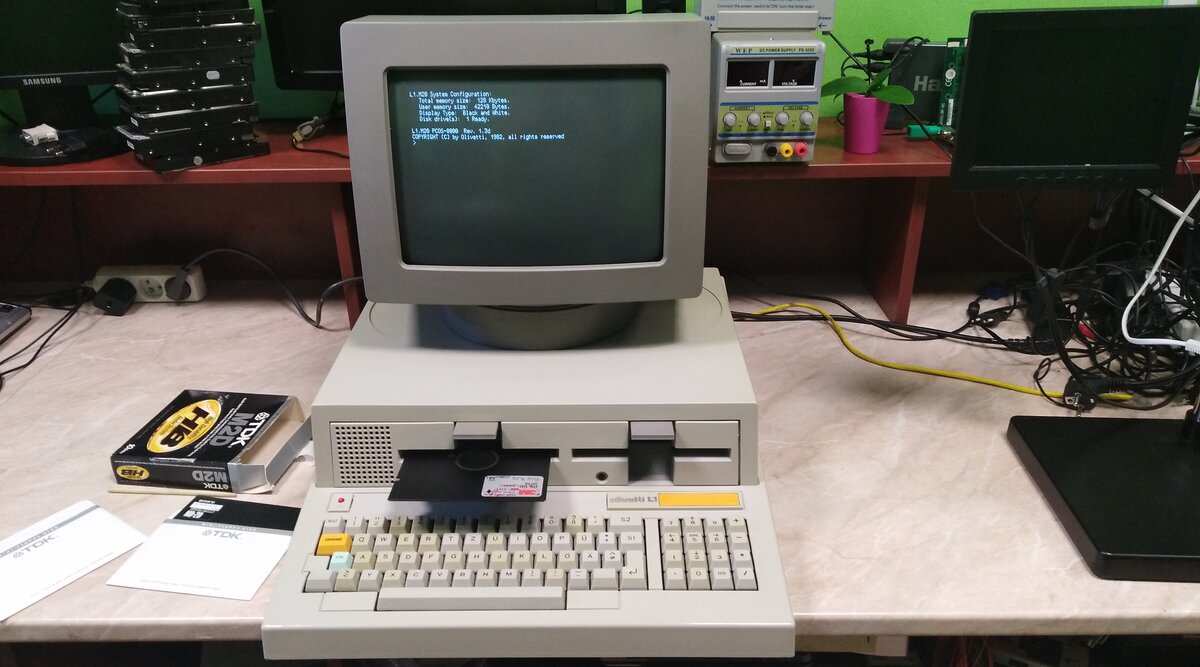

Photo 1: OnlySoft, CC BY-SA 4.0, via Wikimedia Commons (OlivettiM20L1.jpg)
Personal computer, 1982, Olivetti. The M20 was designed at Olivetti's Advanced Technology Center in Cupertino and presented in 1982 as the company's first 16-bit personal computer. It is built around the Zilog Z8001, a powerful but rarely used processor, with its own operating system PCOS and a bitmapped 512 x 256 display; the choice made it incompatible with the IBM PC and it was replaced two years later by the M24, although an 8086 add-on board (the APB) later allowed it to run MS-DOS. The system unit, keyboard and monitor were designed by Ettore Sottsass. The M20 ST is the standard configuration, aimed at scientific and technical use.
| Years | 1982 to 1984 |
|---|---|
| Processor | Zilog Z8001 at 4 MHz |
| RAM | 128 KB, expandable to 512 KB |
| Graphics | 512 x 256 monochrome, colour version with 480 x 256 in 8 colours |
| Storage | 2 x 5.25" floppy drives of 320 KB; hard disk on the M20 HD |
| Operating system | PCOS with BASIC 8000; CP/M-8000 later |
| Ports | RS-232, parallel, expansion bus |
| Price (1982) | about 6,000,000 lire |
Documentation
No documents available yet for this model. Browse the documentation section.
