Olivetti M10 8k

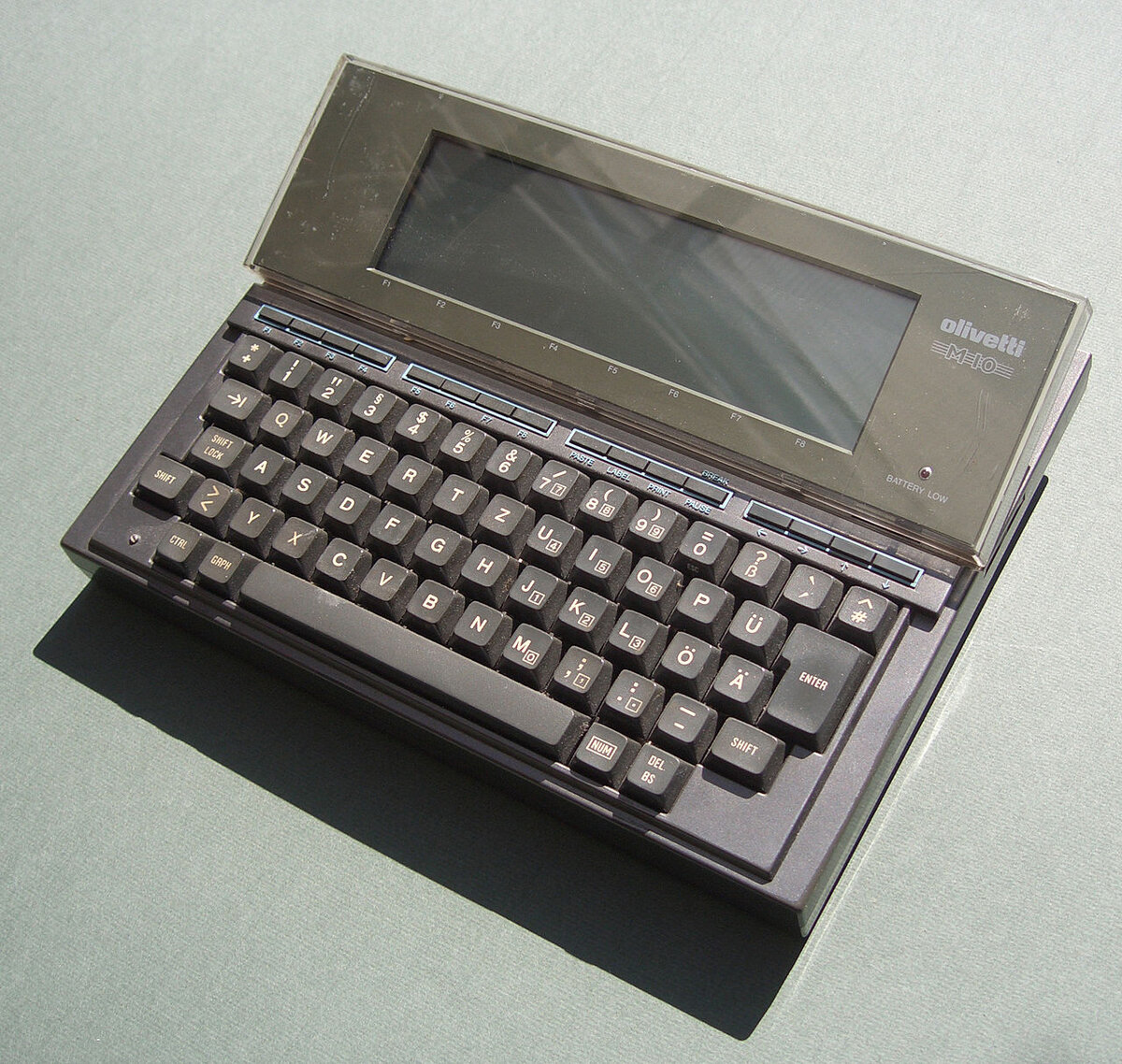

Photo 1: Nessun autore leggibile automaticamente. Christos Vittoratos presunto (secondo quanto affermano i diritti d'autore)., CC BY 2.5, via Wikimedia Commons (Sottsass05.JPG)
Portable computer, 1983, Olivetti. The M10 is Olivetti's version of the notebook designed by Kyocera and sold in the United States as the Tandy TRS-80 Model 100 and by NEC as the PC-8201. It runs for about 20 hours on four AA batteries and has a full keyboard, an 8-line LCD that can be tilted for readability (a feature specific to the Olivetti version), a built-in BASIC written by Microsoft, a text editor, an address book, a diary and a terminal program. It was used by journalists to write and transmit articles through the built-in modem. This is the 8 KB version.
| Years | 1983 to 1986 |
|---|---|
| Processor | Intel 80C85 at 2.4 MHz |
| RAM | 8 KB, expandable to 32 KB |
| ROM | 32 KB with BASIC, TEXT, TELCOM, ADDRSS and SCHEDL |
| Display | LCD, 8 lines x 40 characters, 240 x 64 pixels, tilting |
| Storage | cassette recorder; optional external floppy drive |
| Ports | RS-232, parallel, cassette, bar-code reader, modem, expansion bus |
| Power | 4 AA batteries or adapter |
| Weight | about 1.7 kg |
