Macintosh SE FDHD

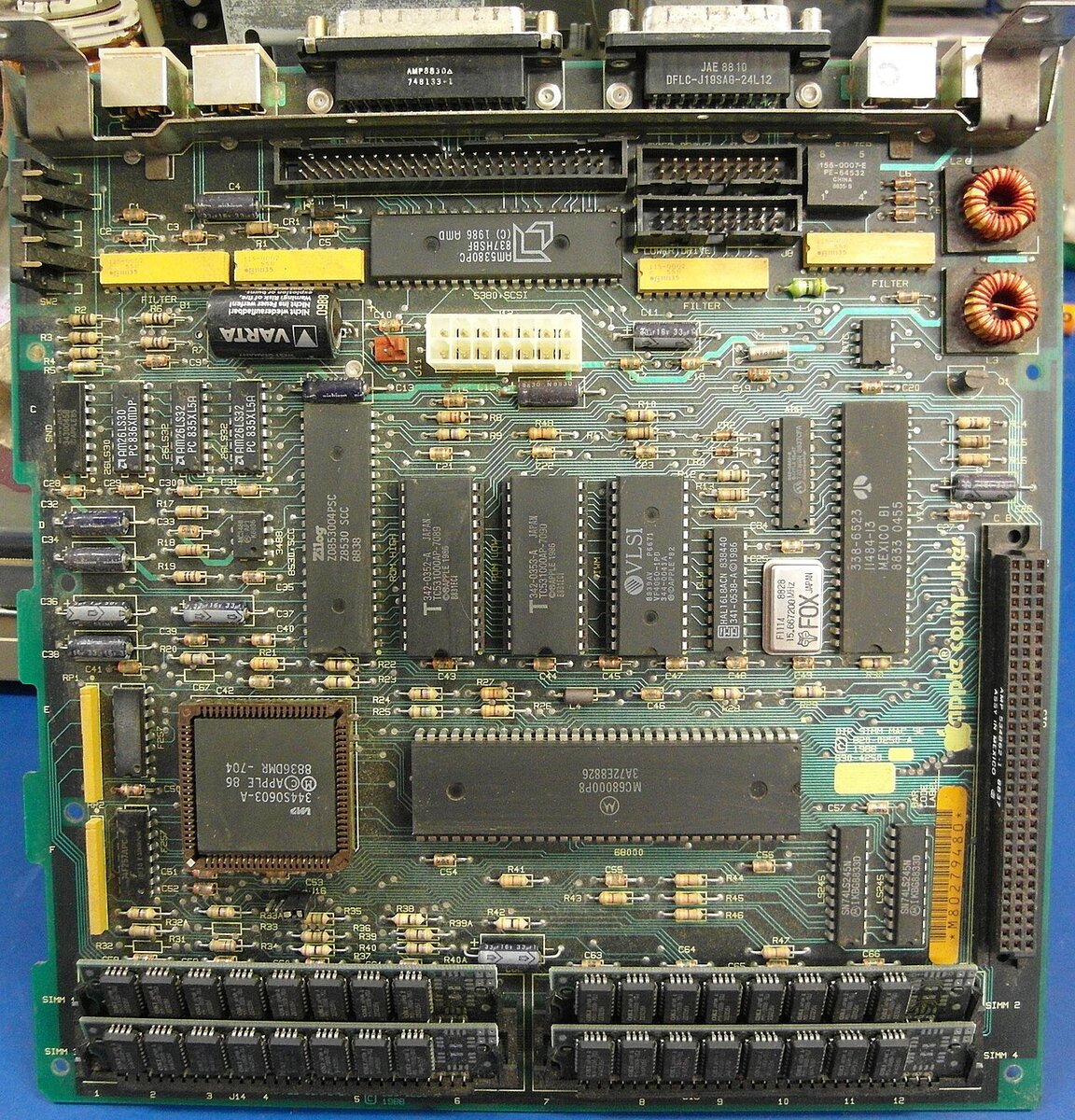

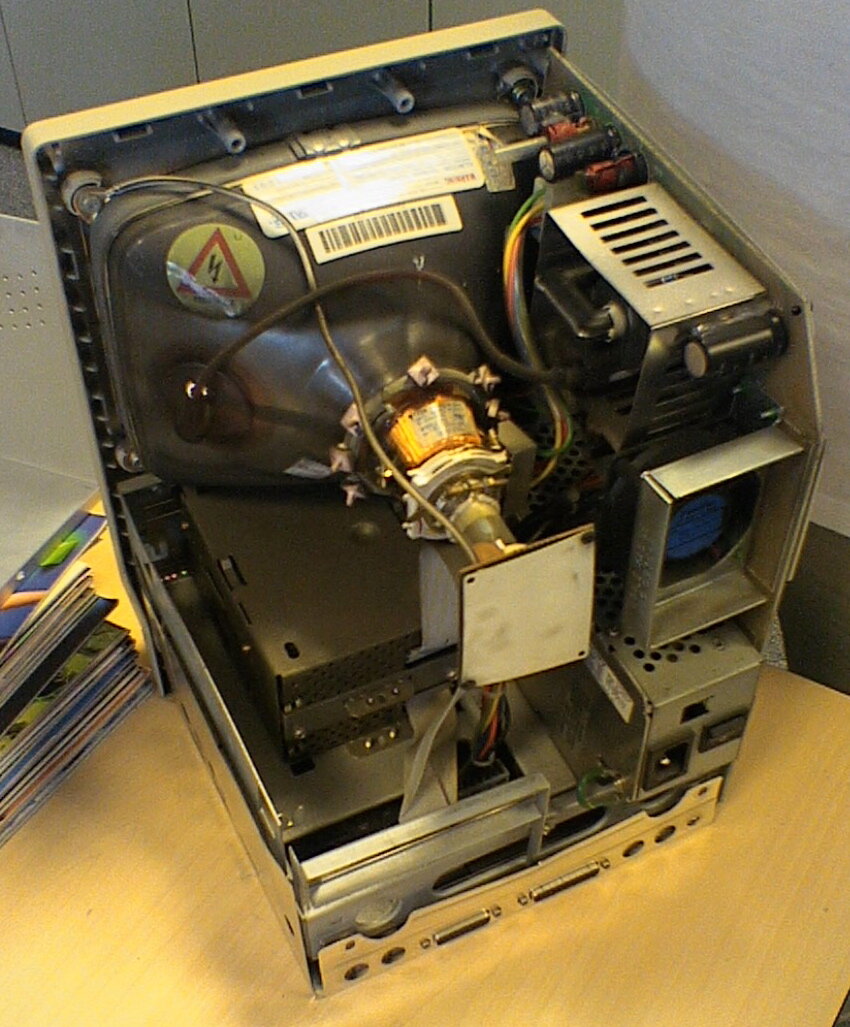

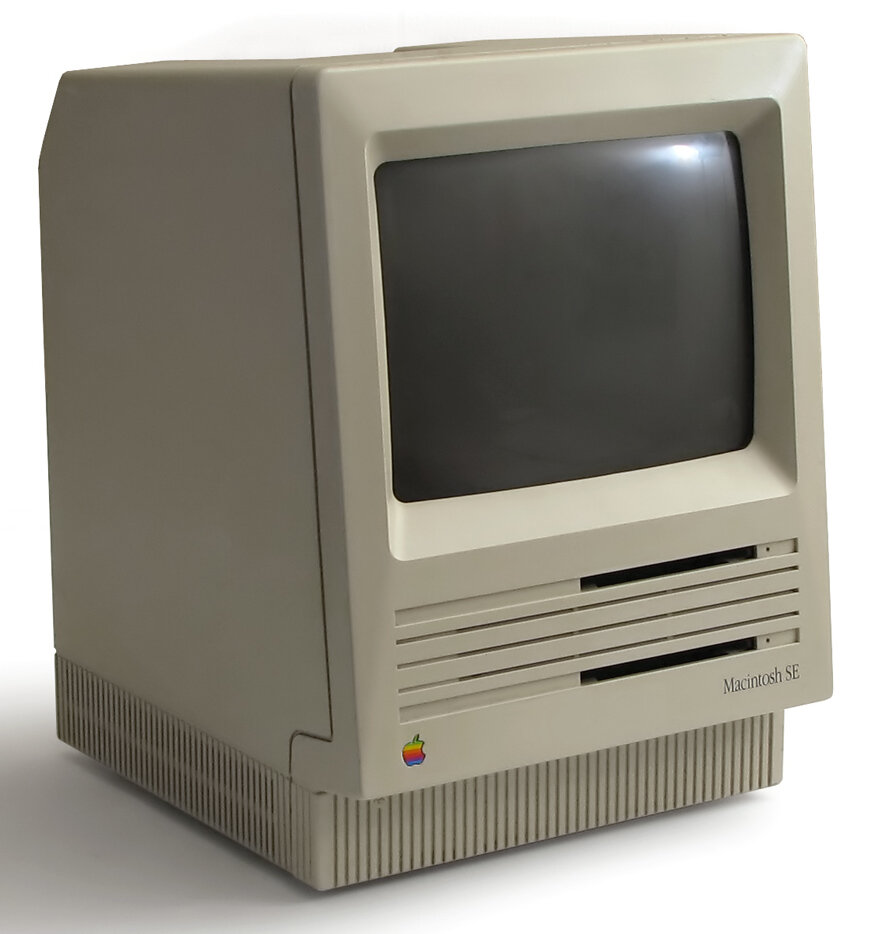

Photo 1: CC BY-SA 2.5, via Wikimedia Commons (Macintosh SE b.jpg) Photo 2: Mark Baker, CC BY-SA 2.0, via Wikimedia Commons (Macintosh SE Inside.jpg) Photo 3: Binarysequence, CC BY-SA 3.0, via Wikimedia Commons (Apple Macintosh SE Main PCB.jpg)
Personal computer, 1989, Apple. The Macintosh SE FDHD ("Floppy Drive High Density", later SE SuperDrive) is the 1989 revision of the Macintosh SE with the 1.4 MB SuperDrive that can read and write MS-DOS disks, and updated ROMs.
| Years | August 1989 to October 1990 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68000, 32 bit, 7.83 MHz |
| RAM | 1 MB, expandable to 4 MB |
| ROM | 256 KB |
| Built-in storage | 3.5" SuperDrive (1.4 MB), optional hard disk (20/40 MB) or second floppy drive |
| Display | 9 inch, 512 x 342 |
| Interfaces | DB-19 external floppy, DB-25 SCSI, ADB (Apple Desktop Bus) for keyboard and mouse, 2 x DIN-8 serial, audio |
| Expansion | 1 internal slot |
| Operating system | System 6.0.3 to 7.5.5 |
| Dimensions | 345 (H) x 244 (W) x 276 (D) mm |
| Weight | 7.7 kg |
Documentation
No documents available yet for this model. Browse the documentation section.
