Atari MEGA STE

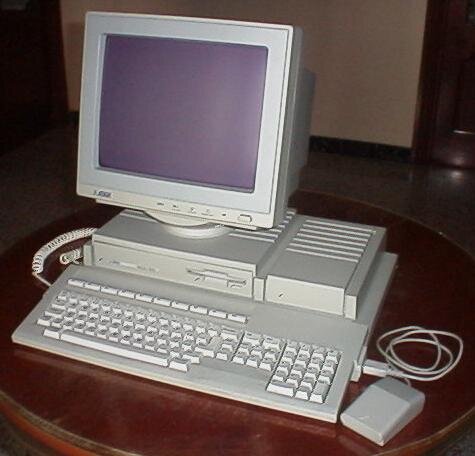

Photo 1: Francisco Rodrigo Escobedo Robles, CC BY-SA 3.0, via Wikimedia Commons (Atari-mega-ste.jpg)
Personal computer, 1991, Atari. The Mega STE puts the electronics of the STe into the grey desktop case of the TT, with a detachable keyboard. The 68000 can be switched between 8 and 16 MHz, with a cache to speed up the faster mode, and the machine gains a 1.44 MB floppy drive, a VME expansion slot, a SCSI interface for an internal hard disk, a second serial port and a LAN port. It was the last 68000-based ST and was aimed at offices and music studios.
| Years | 1991 to 1993 |
|---|---|
| Processor | Motorola 68000 at 8 or 16 MHz with 16 KB cache; optional 68881 FPU |
| RAM | 1, 2 or 4 MB |
| ROM | TOS 2.05 or 2.06 |
| Graphics | STe Shifter with blitter, palette of 4096, 640 x 400 monochrome |
| Sound | YM2149 plus 8-bit stereo DMA sound |
| Storage | 3.5" 1.44 MB floppy drive, optional internal SCSI hard disk of 48 MB or more |
| Ports | MIDI, ACSI, SCSI, 2 serial, LAN, printer, VME slot, monitor, cartridge, joystick and mouse |
