Philips MSX 2 VG-8235

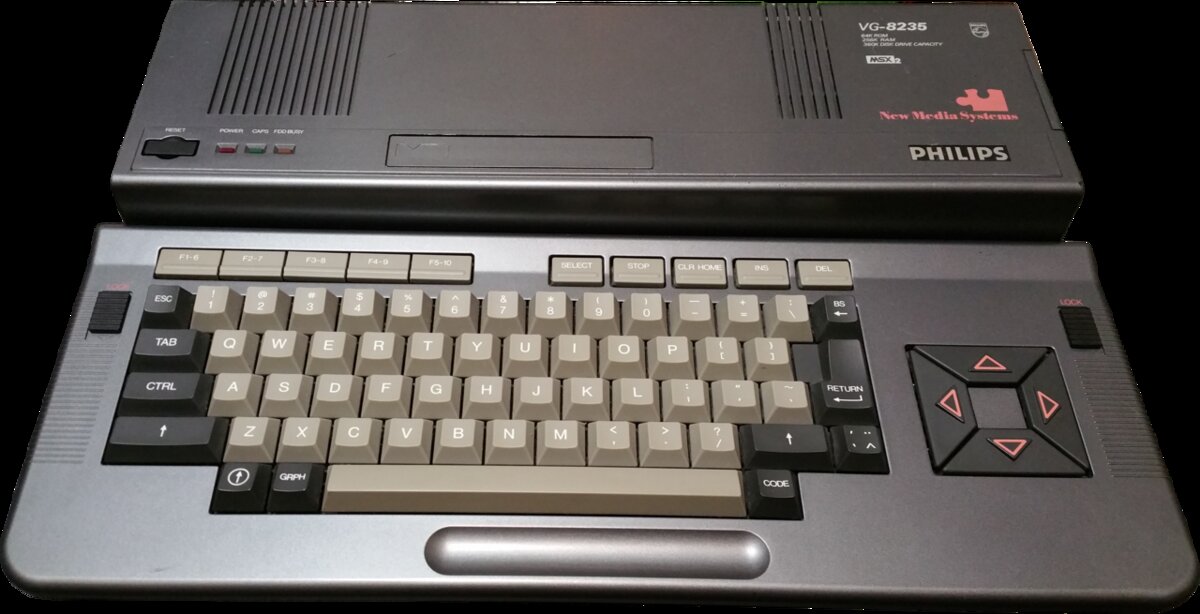

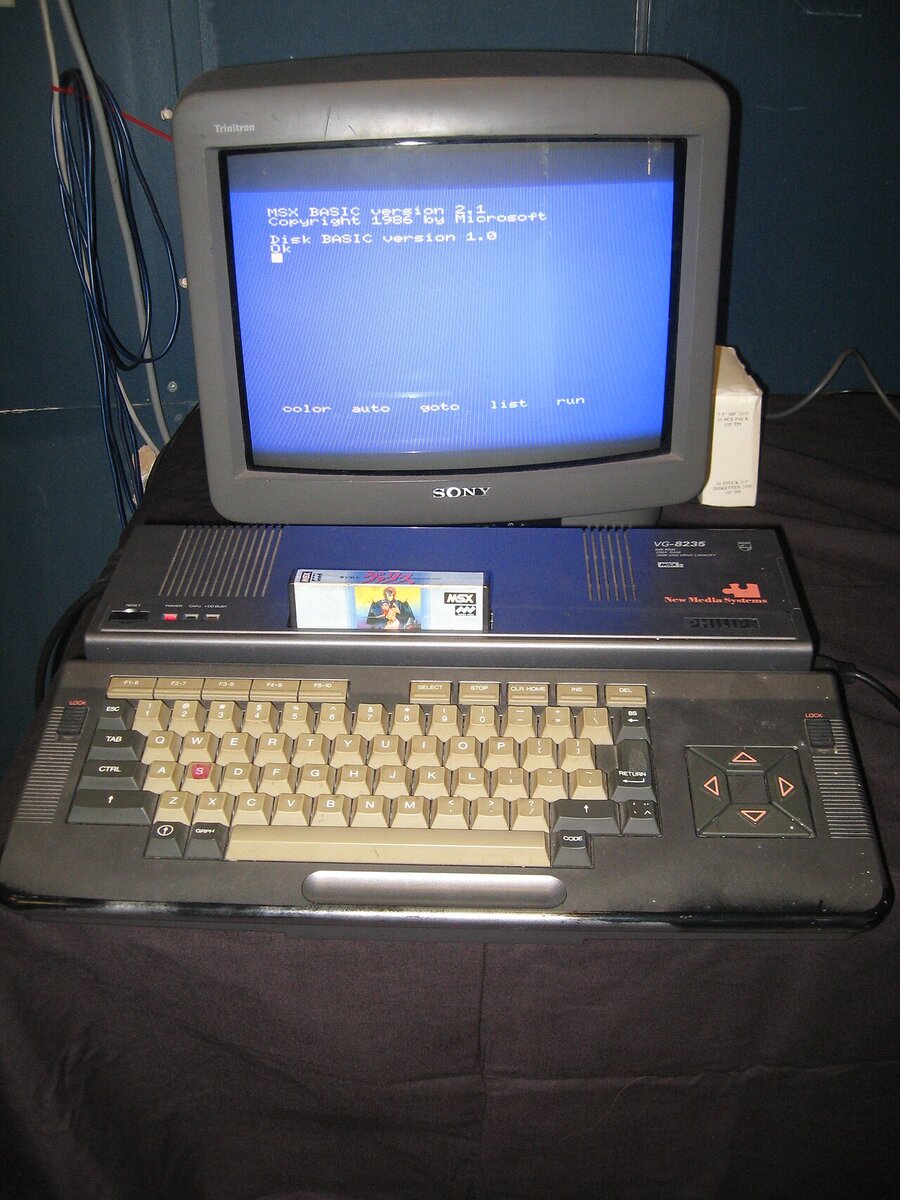

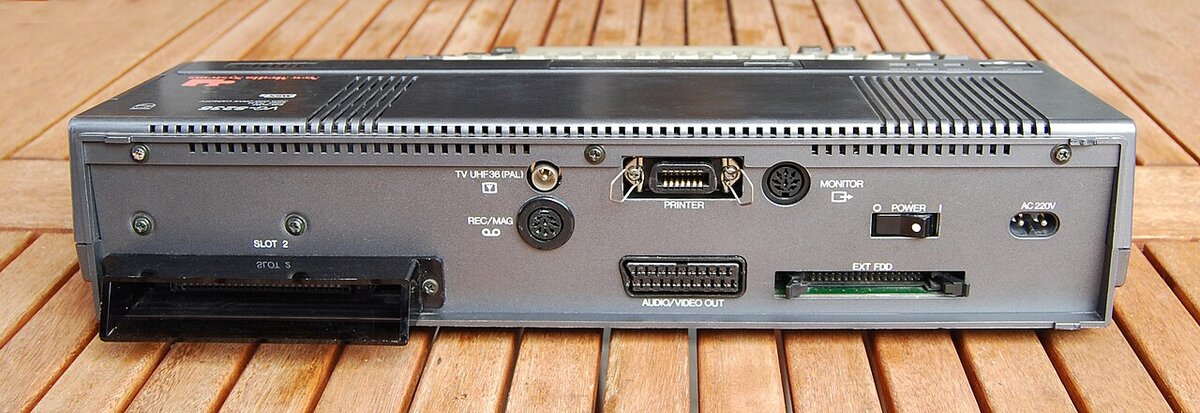

Photo 1: Clint Basinger, CC BY-SA 4.0, via Wikimedia Commons (Philips VG8235 Computer.png) Photo 2: Staffan Vilcans, CC BY-SA 2.0, via Wikimedia Commons (Philips MSX - 5058671218.jpg) Photo 3: Micha L. Rieser, Attribution, via Wikimedia Commons (Philips VG-8235 Interfaces.jpg)
Home computer, 1986, Philips. The VG-8235 is Philips' MSX2 computer, developed and made by NEC, with 128 KB of RAM, the Yamaha V9938 video chip with 80-column text and 256-colour graphics, and a built-in 3.5" floppy drive in a flat case with a detachable keyboard. It was sold in Europe with MSX-DOS and MSX BASIC 2.0, and a version was sold in Italy under the Phonola brand. The single-sided 360 KB drive was its main limitation compared with the later NMS 8250.
| Years | 1986 to 1987 |
|---|---|
| Processor | Zilog Z80A at 3.58 MHz |
| RAM | 128 KB plus 128 KB video RAM |
| ROM | 48 KB with MSX BASIC 2.0 and disk ROM |
| Graphics | Yamaha V9938, up to 512 x 212 in 16 colours, 256 x 212 in 256 colours, 80-column text |
| Sound | AY-3-8910, 3 voices |
| Storage | built-in 3.5" floppy drive of 360 KB |
| Operating system | MSX BASIC 2.0, MSX-DOS |
| Ports | 2 cartridge slots, 2 joystick, Centronics printer, cassette, RGB (SCART) and composite video |
Documentation
No documents available yet for this model. Browse the documentation section.
