Amiga 2000 A - 1986

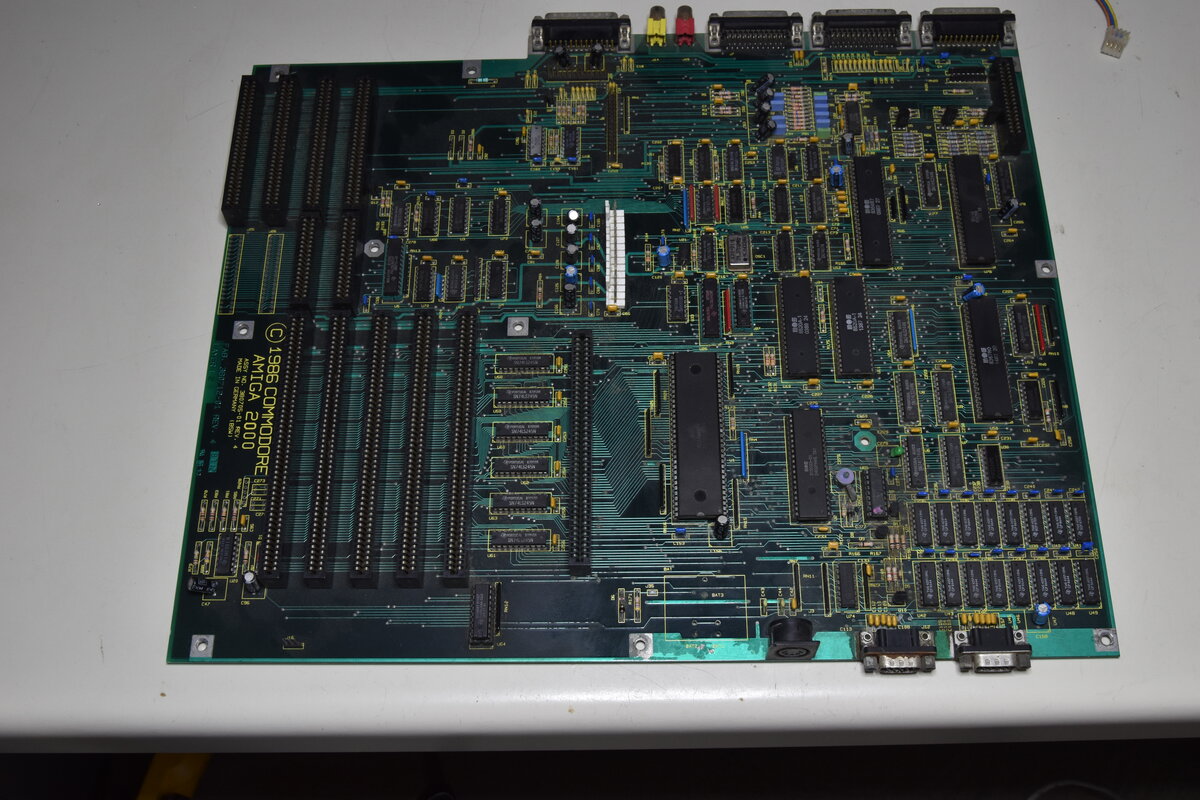

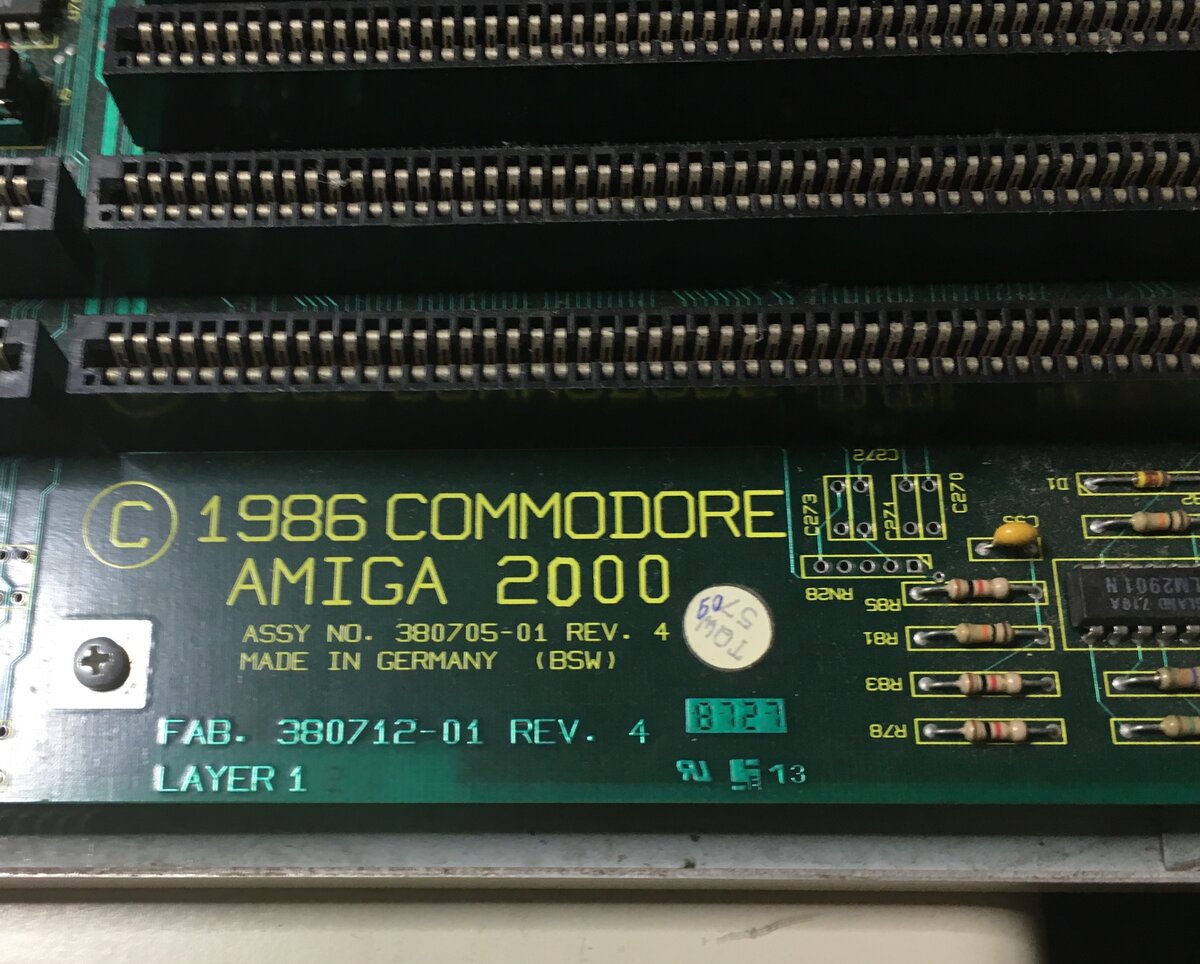

Photo 1: Esocop Photo 2: Esocop
Personal computer, 1986, Commodore. The Amiga 2000-A is the original German version of the Amiga 2000, designed by Commodore Braunschweig and released in Germany at the end of 1986: essentially an Amiga 1000 in a big expandable case with Zorro slots and ISA slots for the Bridgeboard, with the Kickstart loaded into RAM like the A1000; it was soon replaced by the cost-reduced 2000-B designed in the United States.
| Years | 1986 to 1987 |
|---|---|
| Manufacturer | Commodore, Braunschweig (Germany) |
| Processor | Motorola 68000 at 7.09 MHz (PAL) |
| RAM | 1 MB chip RAM (Amiga 1000 architecture, 512 KB chip plus 512 KB on a daughterboard) |
| ROM | Kickstart 1.2 in ROM (256 KB) on this version, unlike the A1000 |
| Graphics | Original Chip Set (OCS), 32 colours from 4096, HAM |
| Sound | Paula, 4 channels of 8 bit PCM in stereo |
| Built-in storage | 3.5" floppy disk drive (880 KB), bays for a second 3.5" and a 5.25" drive |
| Expansion | 5 Zorro II slots (100-pin, A2000-A version), 2 ISA slots (4 with Bridgeboard), video slot, 86-pin processor slot |
| Ports | 2 mouse/joystick, serial, parallel, external floppy, RGB video, composite video, keyboard, stereo audio |
| Operating system | AmigaOS 1.2 |
| Case | desktop "big box" with detachable keyboard |
Documentation
No documents available yet for this model. Browse the documentation section.
