IBM XT (5160)

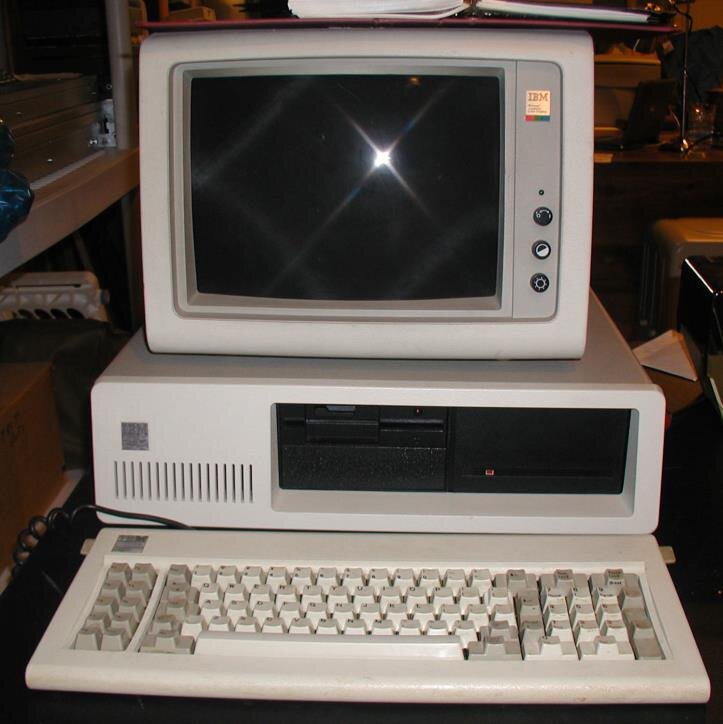

Personal computer, 1983, IBM. The IBM PC XT (5160, "eXtended Technology") added a 10 MB hard disk and eight expansion slots to the original PC.
| Year | 1983 |
|---|---|
| Manufacturer | International Business Machines Corporation (IBM) |
| Model | PC 5160 |
| Processor / coprocessor | Intel 8088 / 8087 at 4.77 MHz |
| RAM | 128 to 640 KB |
| ROM | 64 KB (32 KB for BASIC) |
| Monitor | 12 inch CRT, monochrome or colour |
| Storage | 5.25" floppy disk drive (360 KB), MFM hard disk (10 MB, ST506 interface) |
| Video interface | monochrome text only (MDA) or colour (CGA) |
| Interfaces | RS232-C (DB-9 and DB-25), Centronics (DB-25) |
| Expansion | 8 x 8 bit ISA slots |
| Dimensions | 500 (W) x 410 (D) x 142 (H) mm |
| Weight | system 14.5 kg, monitor 7.9 kg, keyboard 2.7 kg |
| Operating systems | DOS 2.0 to 3.2, PC/IX, SCO UNIX, Xenix, Minix |
| Power supply | system 130 W, monitor 95 W |
| Price (1983) | $7,545 with 10 MB hard disk, without monitor and keyboard |
Documentation
- IBM XT (5160) - General information (PC and XT)
- IBM XT (5160) - Hardware maintenance and service information
- IBM XT (5160) - Hardware maintenance reference, part 1
- IBM XT (5160) - Hardware maintenance reference, part 2
- IBM XT (5160) - Hardware maintenance reference, part 3
- IBM XT (5160) - Installation guide
- IBM XT (5160) - Introduction to diagnostics (PC and XT)
- IBM XT (5160) - Jumpers and switch settings
- IBM XT (5160) - Manual
- IBM XT (5160) - Operator's manual
- IBM XT (5160) - Repair information (PC and XT)
- IBM XT (5160) - Technical reference
- IBM XT (5160) - Technical reference
