Nintendo NES

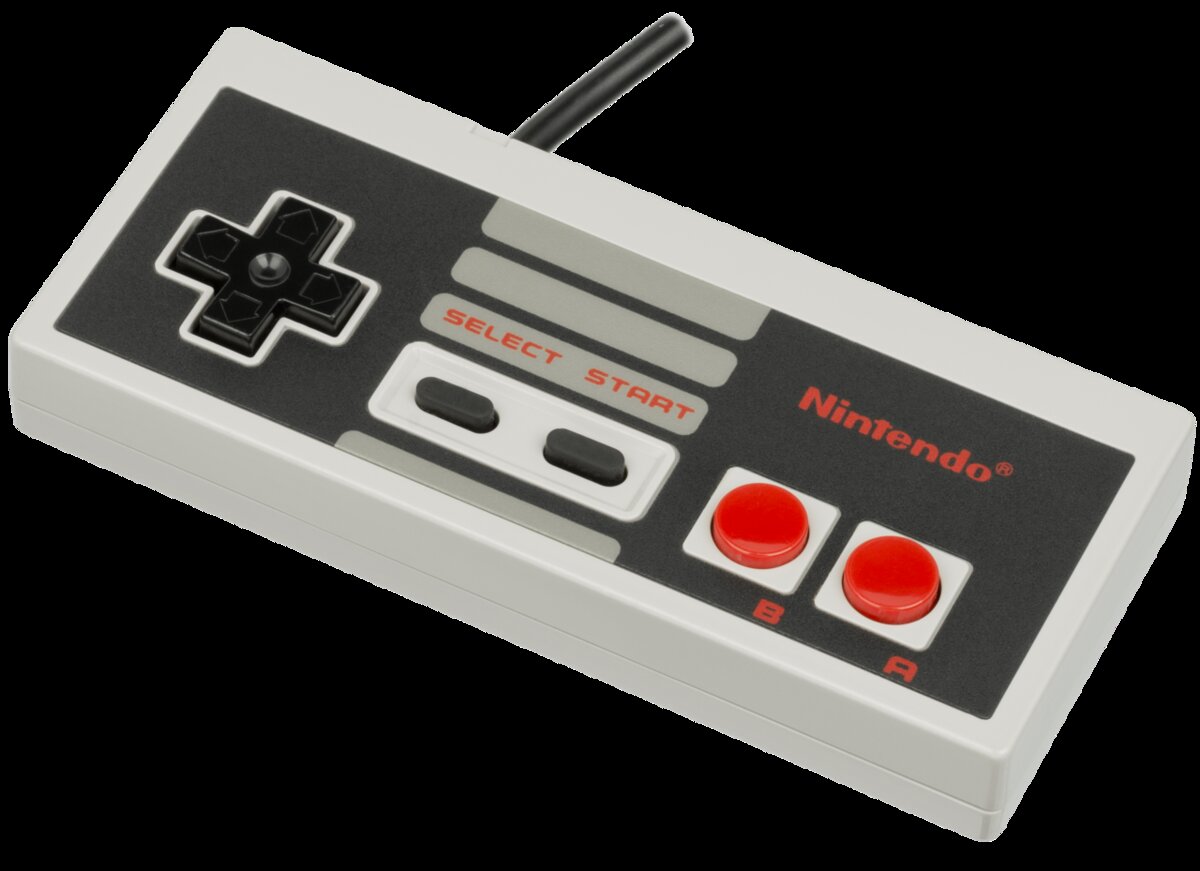

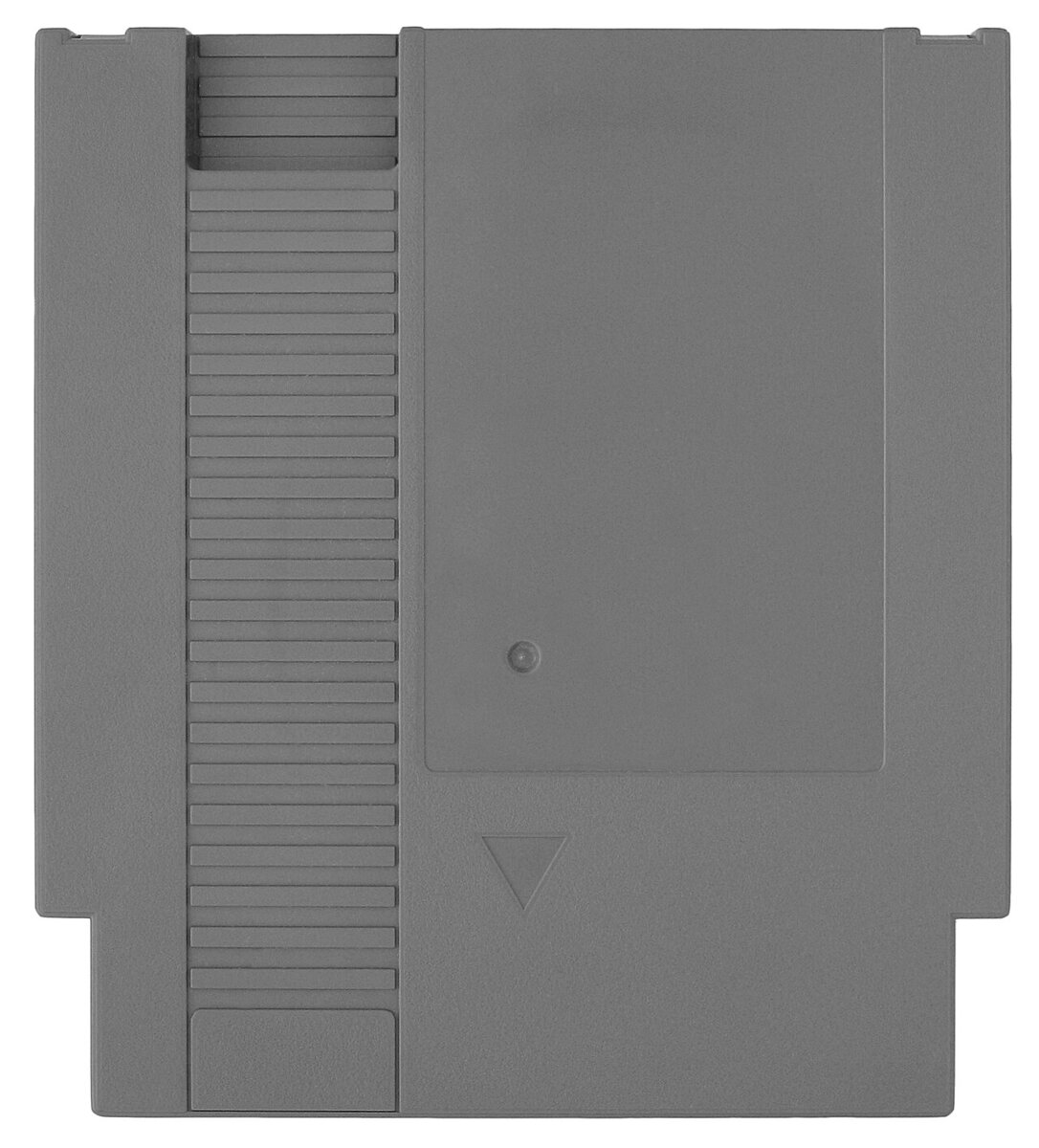

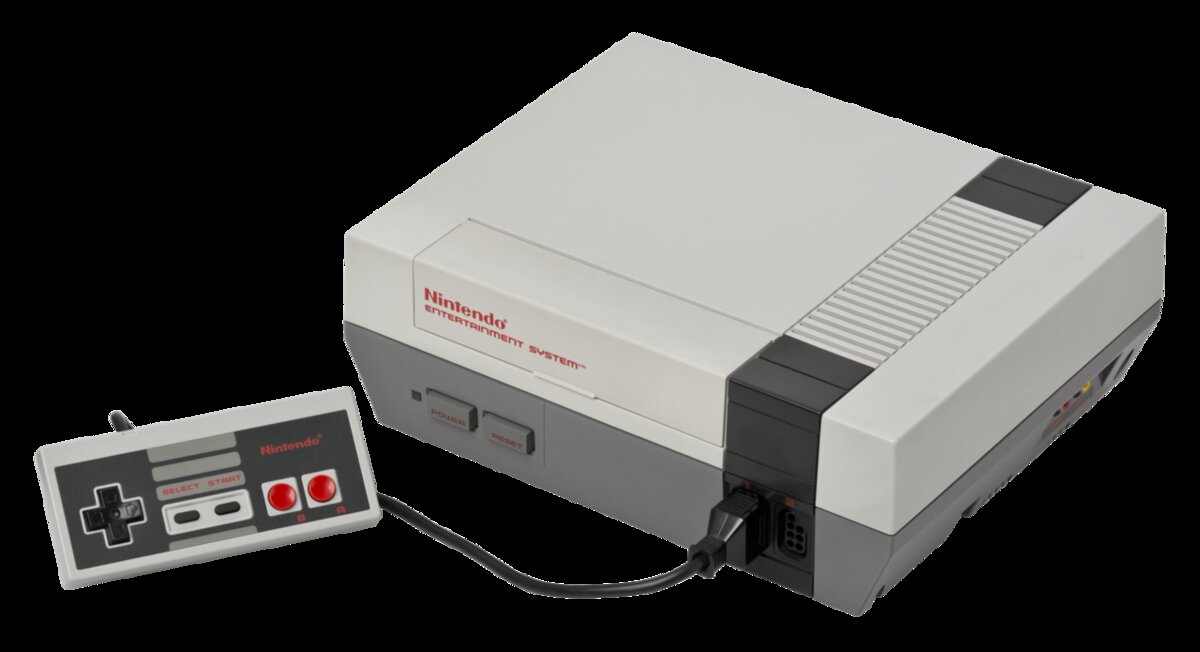

Photo 1: Evan-Amos, public domain, via Wikimedia Commons (NES-Console-Set.png) Photo 2: Evan-Amos, modified by Gunnar.offel, public domain, via Wikimedia Commons (Nintendo-Entertainment-System-NES-Controller-FL.png) Photo 3: Evan-Amos, public domain, via Wikimedia Commons (NES-Cartridge.jpg)
Video game console, 1985, Nintendo. The Nintendo Entertainment System is the western version of the Famicom, launched in the United States in October 1985 and in Europe from 1986. Nintendo redesigned the console as a grey box with a front-loading cartridge slot that resembled a video recorder, to distance it from the video game crash of 1983, and it revived the console market with Super Mario Bros., The Legend of Zelda and a strict licensing system for third-party games. About 62 million were sold worldwide.
| Years | 1985 to 1995 |
|---|---|
| Processor | Ricoh 2A03 (6502 core) at 1.79 MHz (2A07 at 1.66 MHz for PAL) |
| RAM | 2 KB plus 2 KB video RAM |
| Graphics | Ricoh 2C02 PPU, 256 x 240, 25 colours on screen from 54 |
| Sound | 5 channels |
| Media | ROM cartridges (72-pin) |
| Controllers | 2 ports, rectangular gamepads |
| Price (1985) | US$179 with Super Mario Bros. and Duck Hunt |
Documentation
No documents available yet for this model. Browse the documentation section.
