Nintendo Super NES

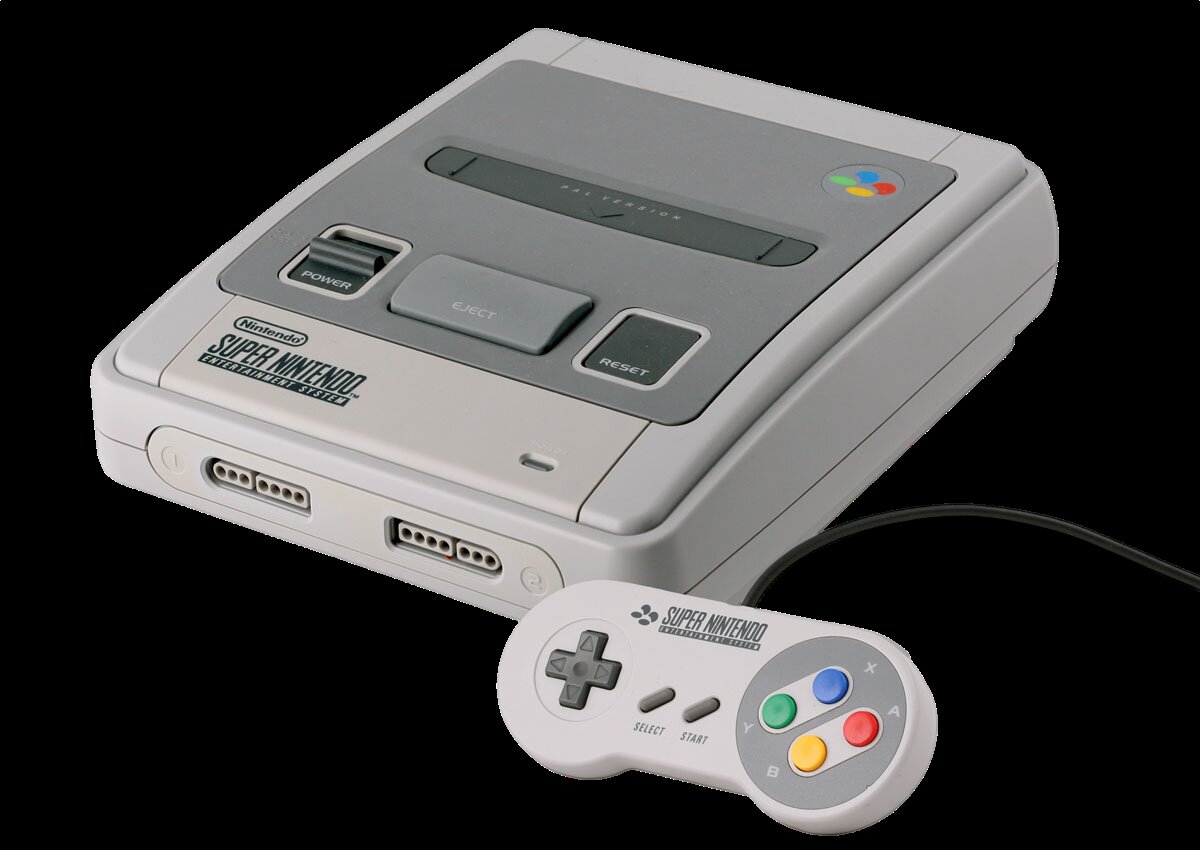

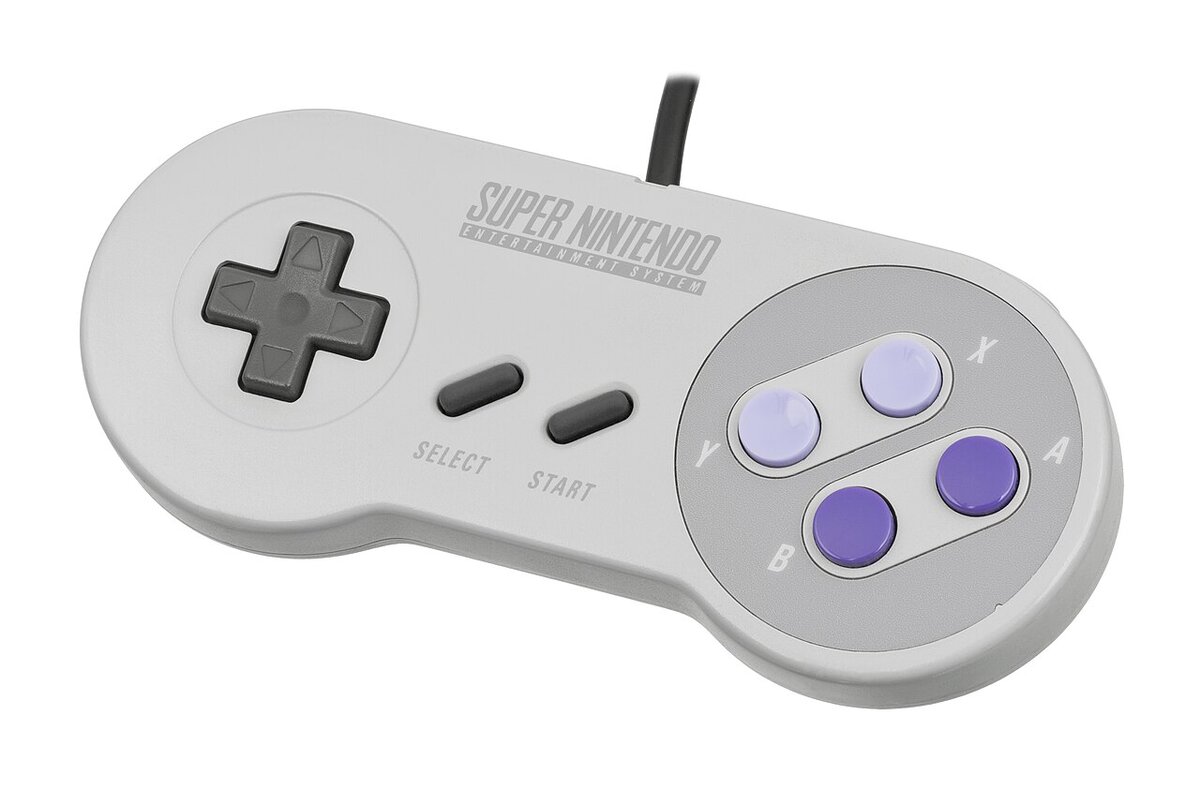

Photo 1: JCD1981NL (original)Aurora Romes (this derivative), CC BY 3.0, via Wikimedia Commons (Wikipedia SNES PAL.png) Photo 2: Evan-Amos, public domain, via Wikimedia Commons (Nintendo-Super-NES-Controller.jpg)
Video game console, 1990, Nintendo. The Super Nintendo Entertainment System, sold in Japan as the Super Famicom from November 1990 and in Europe from 1992, was Nintendo's 16-bit console and the rival of the Sega Mega Drive. It has a 65C816-based processor, graphics chips able to scale and rotate backgrounds (the "Mode 7" used by F-Zero and Super Mario Kart) and a Sony sound chip, and cartridges could carry extra processors such as the Super FX of Star Fox. Almost 50 million were sold.
| Years | 1990 to 2003 |
|---|---|
| Processor | Ricoh 5A22 (65C816 core) at 3.58 MHz |
| RAM | 128 KB plus 64 KB video RAM and 64 KB sound RAM |
| Graphics | S-PPU, 256 x 224 to 512 x 448, 256 colours on screen from 32,768, Mode 7 |
| Sound | Sony SPC700 with 8-channel 16-bit sample playback |
| Media | ROM cartridges |
| Controllers | 2 ports, gamepads with shoulder buttons |
| Price (1992) | £150 in Europe |
Documentation
No documents available yet for this model. Browse the documentation section.
