Sega Master System

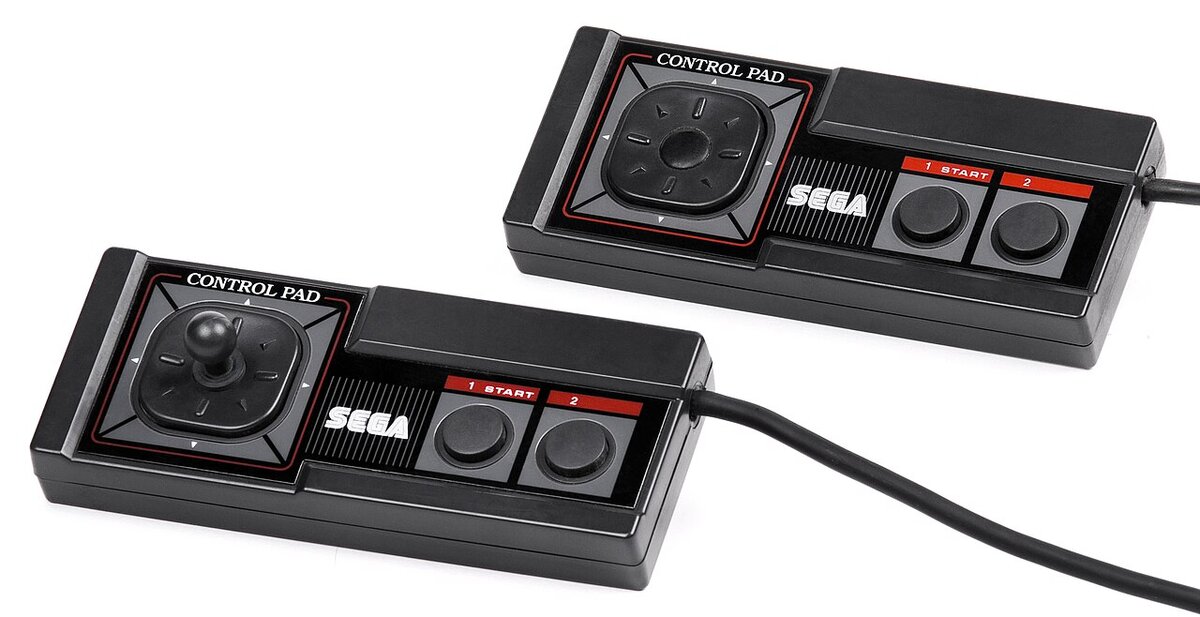

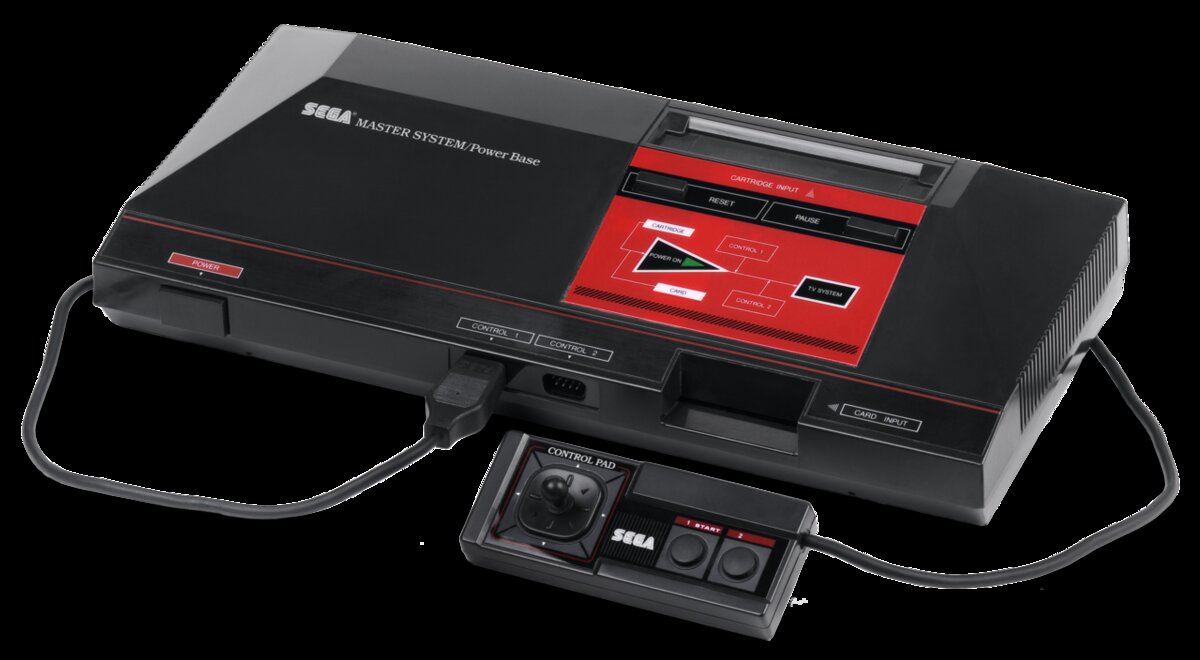

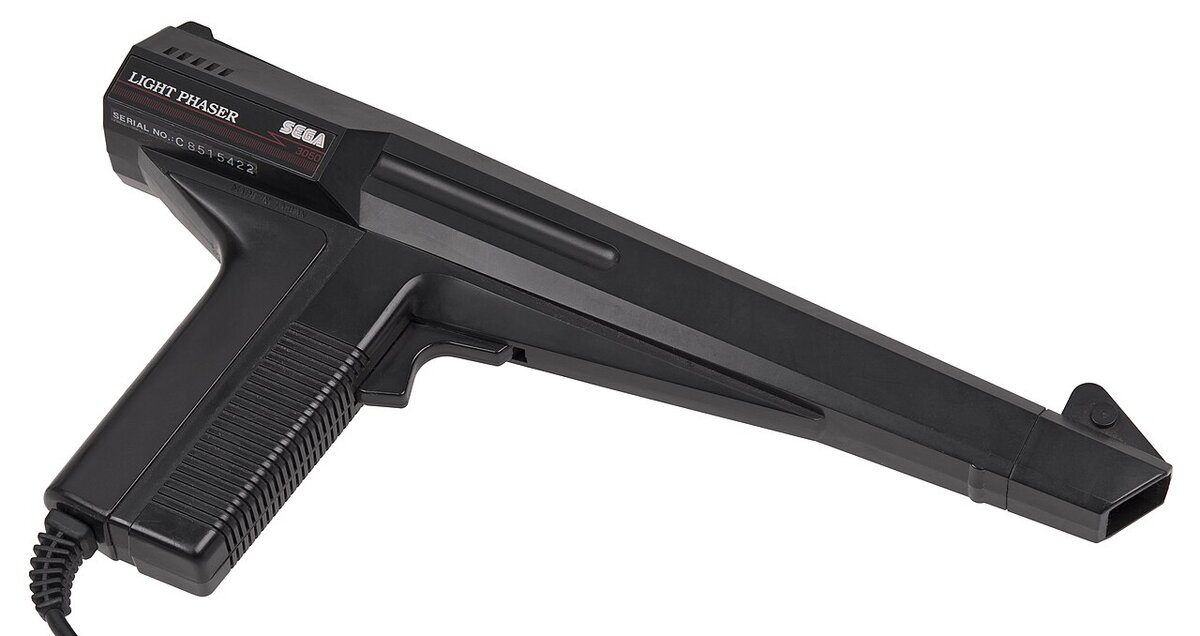

Photo 1: Evan-Amos, public domain, via Wikimedia Commons (Sega-Master-System-Set.png) Photo 2: Evan-Amos, public domain, via Wikimedia Commons (Sega-Master-System-Controllers.jpg) Photo 3: Evan-Amos, public domain, via Wikimedia Commons (SMS-Light-Phaser.jpg)
Video game console, 1986, Sega. The Master System is the export version of the Sega Mark III, released in the United States in 1986 and in Europe in 1987, where it was a strong rival of the NES and sold well into the 1990s. It is a Z80 machine with a video chip derived from the TMS9918 and takes both cartridges and the credit-card-sized Sega Cards; the original model has a built-in game (Snail Maze or Hang-On) and an expansion port for the 3D glasses.
| Years | 1986 to 1991 (original model) |
|---|---|
| Processor | Zilog Z80A at 3.58 MHz |
| RAM | 8 KB plus 16 KB video RAM |
| Graphics | Sega VDP, 256 x 192, 32 colours on screen from 64, 64 sprites |
| Sound | SN76489, 3 voices plus noise |
| Media | ROM cartridges and Sega Cards |
| Controllers | 2 ports, gamepads, light gun, 3D glasses |
| Price (1987) | about £99 in Europe |
Documentation
No documents available yet for this model. Browse the documentation section.
