Sega Mega Drive II

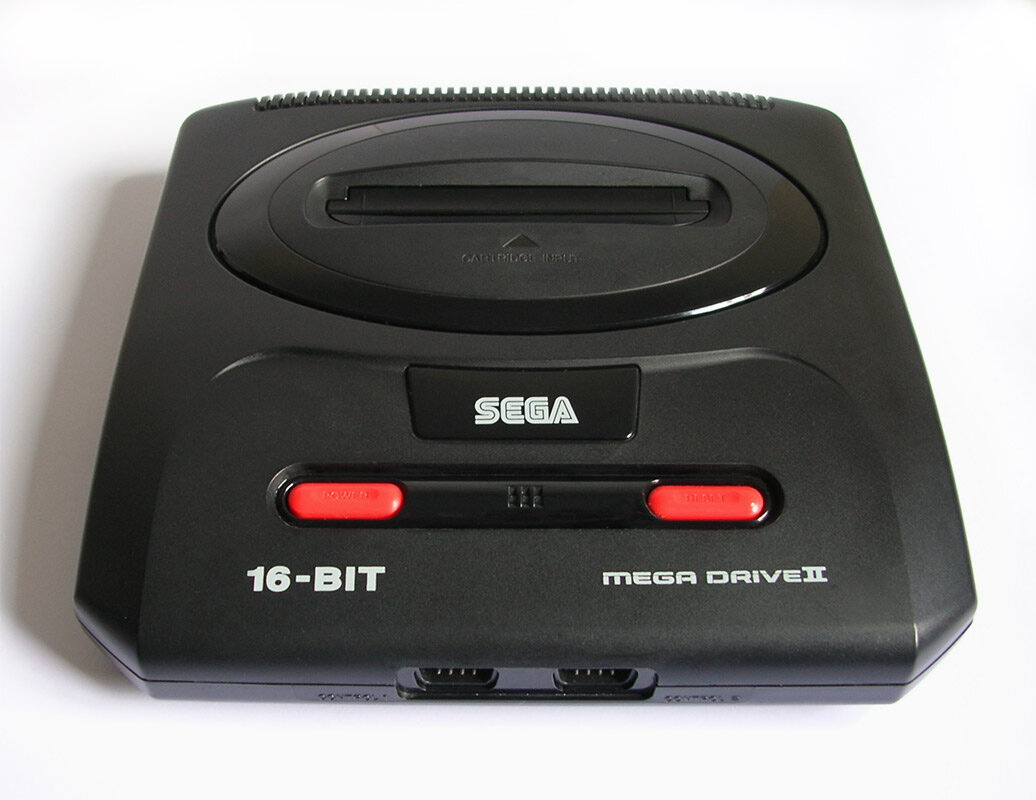

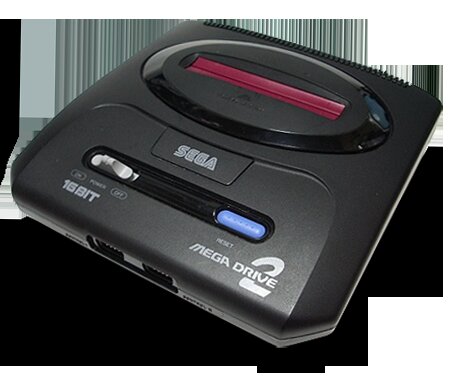

Photo 1: Bill Bertram, CC BY-SA 2.5, via Wikimedia Commons (SegaMegadrive2.jpg) Photo 2: Mega_Drive_2ja.jpg: Muband derivative work: AlphathonTM, CC BY-SA 3.0, via Wikimedia Commons (Japanese Mega Drive 2.png)
Video game console, 1993, Sega. The Mega Drive II is the redesigned, smaller version of the Mega Drive introduced in 1993, in a case with a rounded cartridge slot area, without the headphone jack and volume slider of the original and with stereo sound moved to the AV output. The hardware is otherwise the same and it plays the full library; it was sold alongside the Mega CD II and the 32X add-ons and stayed in production until 1997.
| Years | 1993 to 1997 |
|---|---|
| Processor | Motorola 68000 at 7.6 MHz, Zilog Z80 for sound |
| RAM | 64 KB plus 64 KB video RAM and 8 KB sound RAM |
| Graphics | Sega VDP, 320 x 224, 64 colours on screen from 512 |
| Sound | Yamaha YM2612 and SN76489, stereo through the AV output |
| Media | ROM cartridges |
| Controllers | 2 ports, 3-button and 6-button gamepads |
