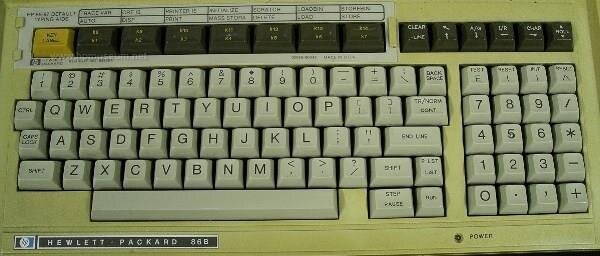

HP 86 B
Desktop technical computer, 1983, Hewlett-Packard. The HP-86B is the last of the Series 80, with built-in HP-IB interface and Electronic Disc ROM.
| Year | 1983 |
|---|---|
| Manufacturer | Hewlett-Packard |
| Model | HP-86B |
| Arithmetic | BCD (binary coded decimal), 15 significant digits internally, 12 displayed |
| RAM | 128 KB, expandable to 576 KB |
| Display | 400 x 240 pixels (external monitor) |
| Built-in interface | HP-IB |
| Internal peripheral | Electronic Disc ROM |
| External peripherals | floppy disk drive, hard disk, plotter, dot matrix printer |

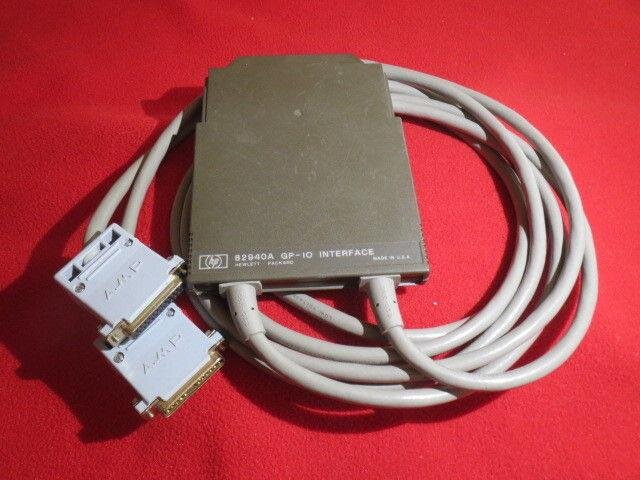

| Interface modules | RS232, modem, HP-IL, GPIO, BCD, speech synthesis module |
| Built-in language | BASIC; other systems: UCSD Pascal |
| Early applications | VisiCalc PLUS |
| Power | 60 W |
| Base price (1983) | $1,595 |
Documentation
- HP 86 B - Assembly level service manual
- HP 86 B - HP 86B technical data sheet
- HP 86 B - I/O programming guide
- HP 86 B - Introduction to the HP 86B
- HP 86 B - Local language supplement
- HP 86 B - ROM and interface specifications
- HP 86 B - Self-paced learning guide
- HP 86 B - User's guide
- HP 86 B - Annotated component locations
- HP 86 B - Schematics
- HP 86 B - Software
- HP 86 B - Software
