Macintosh II FX

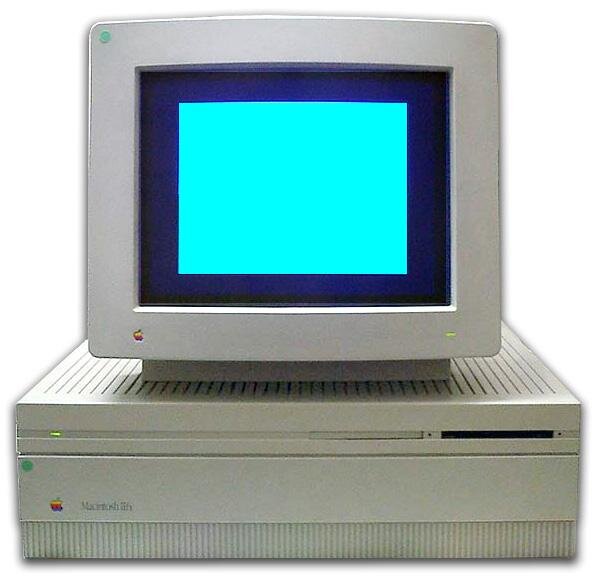

Photo 1: CC BY-SA 3.0, via Wikimedia Commons (Macintosh IIfx.jpg)
Personal computer, 1990, Apple. The Macintosh IIfx was the fastest Macintosh of its time: a 40 MHz 68030 with 68882, dedicated I/O processors, a cache and special 64-pin memory, in the six-slot Macintosh II case, priced from US$9,000 to US$12,000.
| Years | March 1990 to April 1992 |
|---|---|
| Manufacturer | Apple Computer Inc. (US) |
| Processor | Motorola 68030 at 40 MHz with 68882 floating point unit, 32 KB static RAM cache |
| RAM | 4 MB, expandable to 128 MB (80 ns 64-pin SIMM, specific to the IIfx) |
| ROM | 512 KB |
| Built-in storage | 3.5" SuperDrive (1.4 MB), hard disk (80/160 MB) |
| Video | on a NuBus video card |
| Interfaces | DB-25 SCSI (with DMA), ADB (Apple Desktop Bus), 2 x DIN-8 serial (with dedicated processors), audio |
| Expansion | 6 NuBus slots, processor direct slot |
| Operating system | System 6.0.5 to 7.1.1, 7.5 to 7.6.1, A/UX |
| Dimensions | 140 (H) x 474 (W) x 365 (D) mm |
| Weight | 11 kg |
| Price (1990) | US$9,000 to US$12,000 |
Documentation
No documents available yet for this model. Browse the documentation section.
